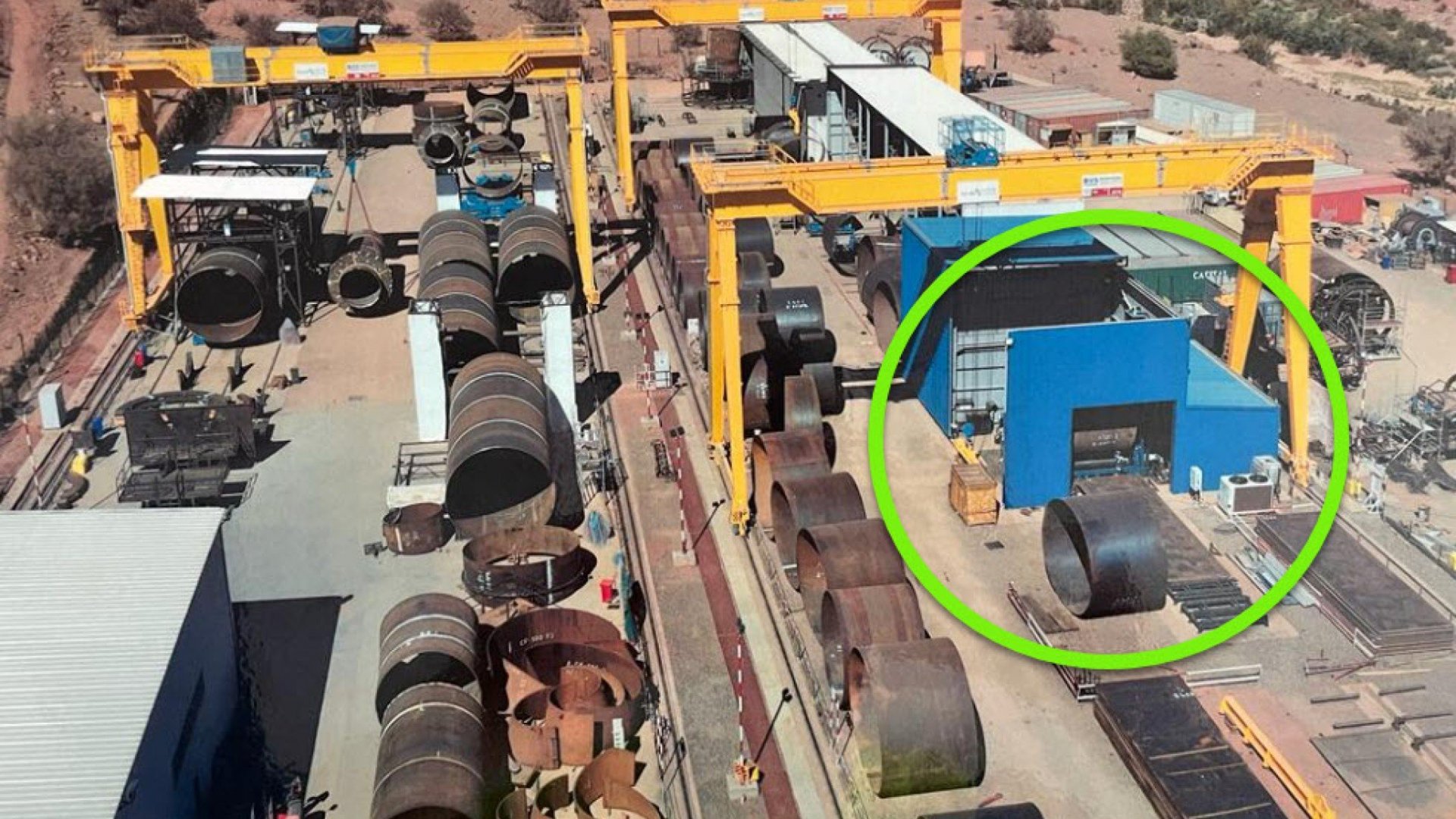

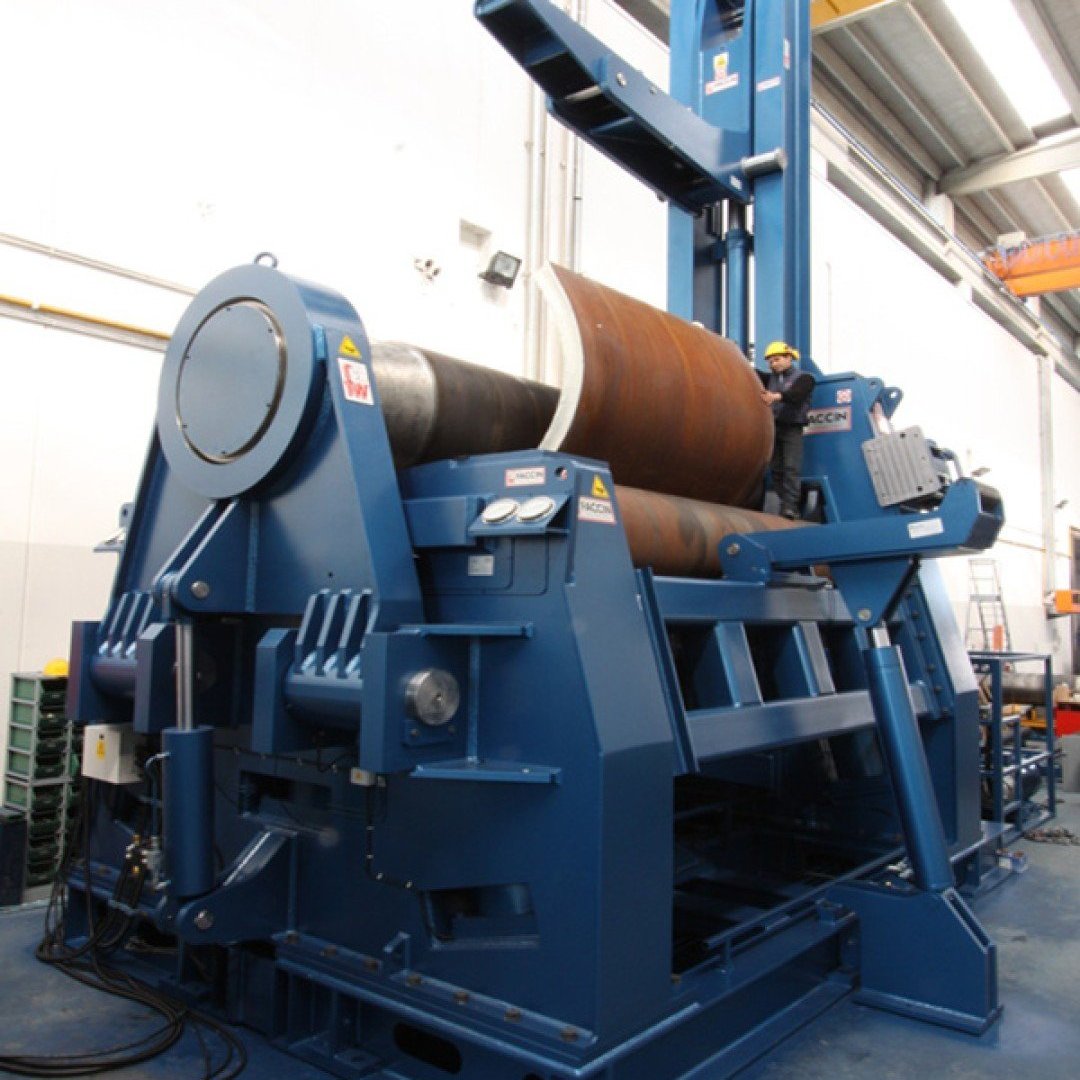

4 roll plate bender
FACCIN - 4HEL 3590
Rolling width: 3500mm
Rolling thickness 3x toproll Ø:80mm
Rolling thickness 5x toproll Ø:110mm
Rolling thickness prebending: 90mm
Top Roll Ø: 900mm
Top Roll Ø: 900mm
Bottom Roll Ø: 800mm
Side roll Ø: 600mm
Number of rolls: 4
Rolling speed: 0-6
Adjustiment lower roll: 0-200mm/min.
Adjustment side rolls: 0-400mm/min.
Top support: yes
Side supports: yes
Number of driven rolls: 2
Power: 90+75+9kW
Length: 4430mm
Width: 8800mm
Height: 11000mm
Weight: 178000kg
Specifications:
4 roll plate bender
FACCIN - 4HEL 3590
Rolling width: 3500mm
Rolling thickness 3x toproll Ø:80mm
Rolling thickness 5x toproll Ø:110mm
Rolling thickness prebending: 90mm
Top Roll Ø: 900mm
Top Roll Ø: 900mm
Bottom Roll Ø: 800mm
Side roll Ø: 600mm
Number of rolls: 4
Rolling speed: 0-6
Adjustiment lower roll: 0-200mm/min.
Adjustment side rolls: 0-400mm/min.
Top support: yes
Side supports: yes
Number of driven rolls: 2
Power: 90+75+9kW
Length: 4430mm
Width: 8800mm
Height: 11000mm
Weight: 178000kg
