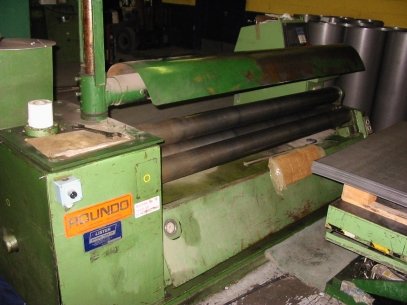

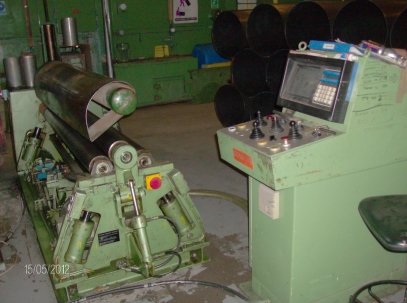

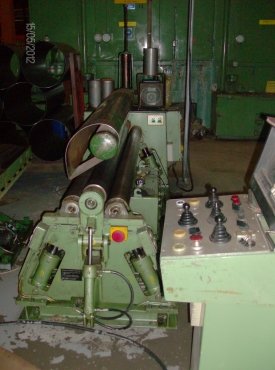

PAS 130/CNC CAPACITY 2000 X 3MM MILD STEEL, 2000 X 4MM ALUMINIUM
Upper and lower rolls driven via geared motor with brake.
Hydraulic adjustment of the lower roll by conical adjustment via hydraulic cylinder assistance giving accurate adjustment.
Hydraulic adjustment of the two side rollers.
Hydraulic adjustment of the end yoke.
Dial indicators showing the position of the two side rollers.
SKF roller/ball bearings in all journals.
Portable push button control.
Emergency stop placed on the machine frame.
Electrics 380 V 3 phase 50 Hz.
Colour RAL 6011 Green
Specifications:
Capacity;
Pre-bending and rolling in mild steel 2000 x 3 mm
Pre-bending and rolling in soft aluminium 2000 x 4 mm
OR;
Pre-bending and rolling in soft aluminium 1250 x 5 mm
Upper roll Diameter; 130 mm
Lower roll Diameter; 130 mm
Both side rolls Diameter; 130 mm
Motor size (CNC equipped machine); 5.5 H.P
Rolling speed; 0 – 6 M/min
