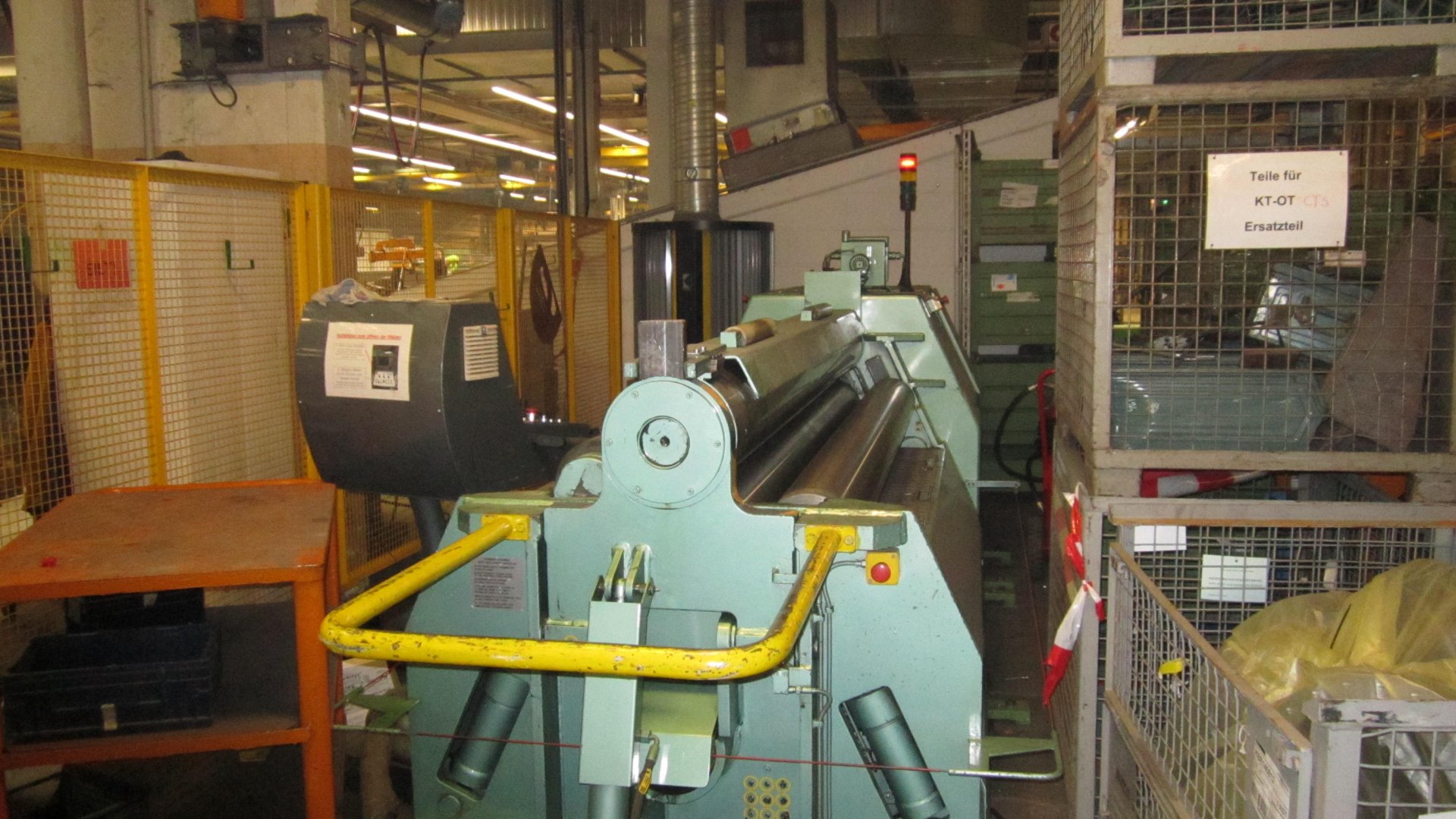

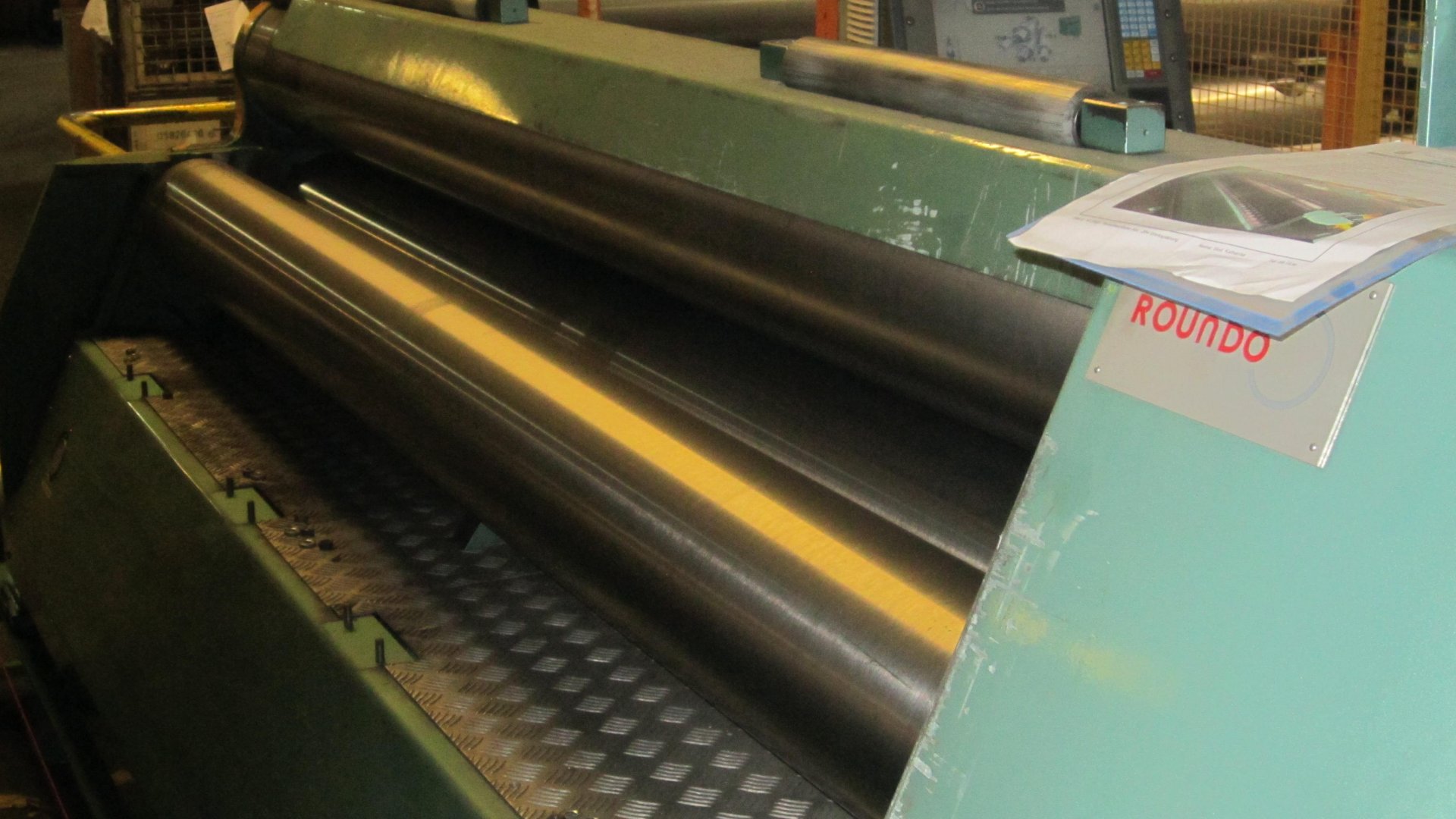

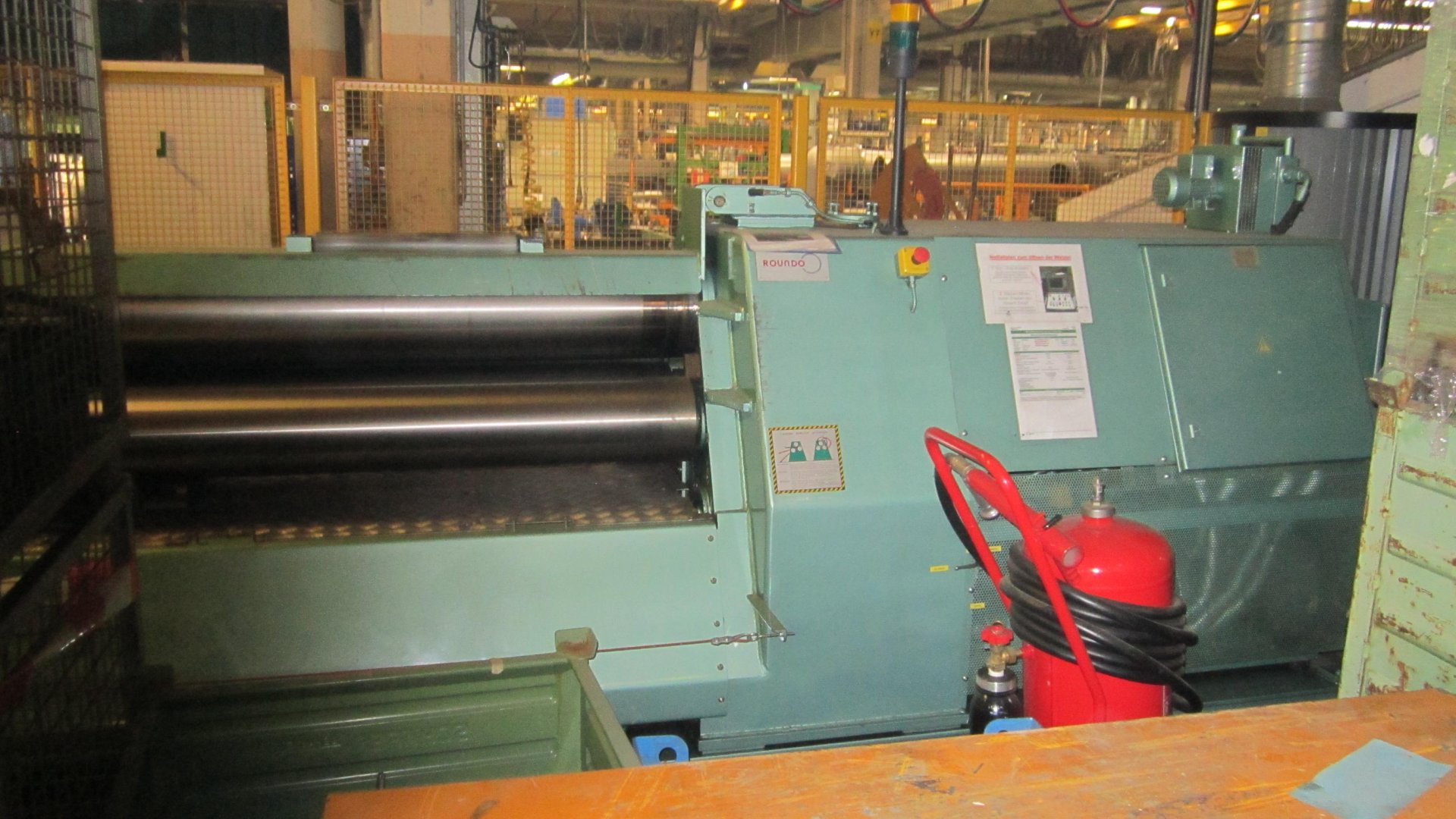

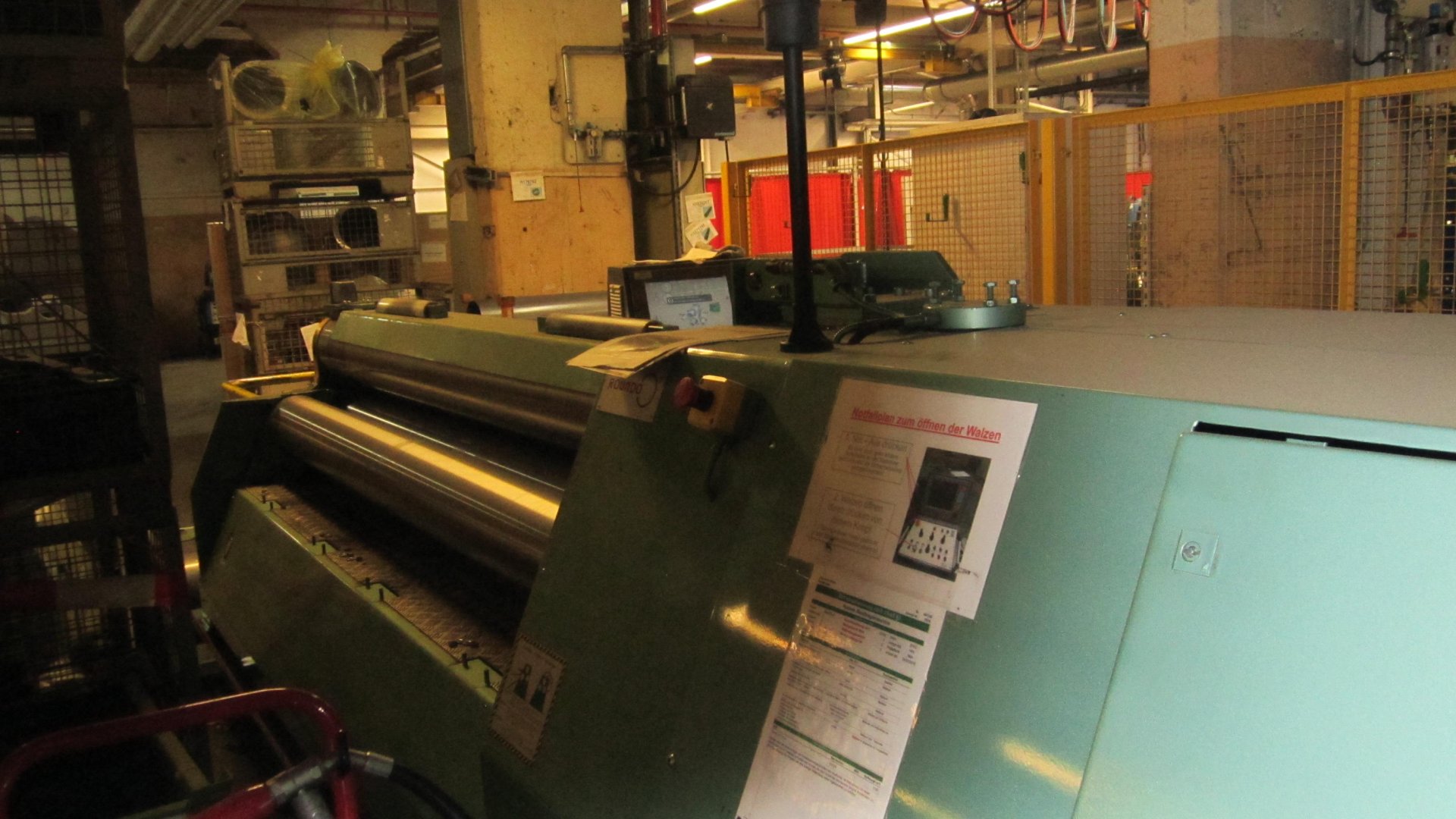

4 roll plate bender
ROUNDO - PASS 270
Rolling width: 2500mm
Rolling thickness 3x toproll Ø:10mm
Rolling thickness 5x toproll Ø:12mm
Rolling thickness prebending: 8mm
Top Roll Ø: 270mm
Bottom Roll Ø: 270mm
Side roll Ø: 215mm
Number of rolls: 4
Rolling speed: 0 - 6
Adjustiment lower roll: 200mm/min.
Adjustment side rolls: 200mm/min.

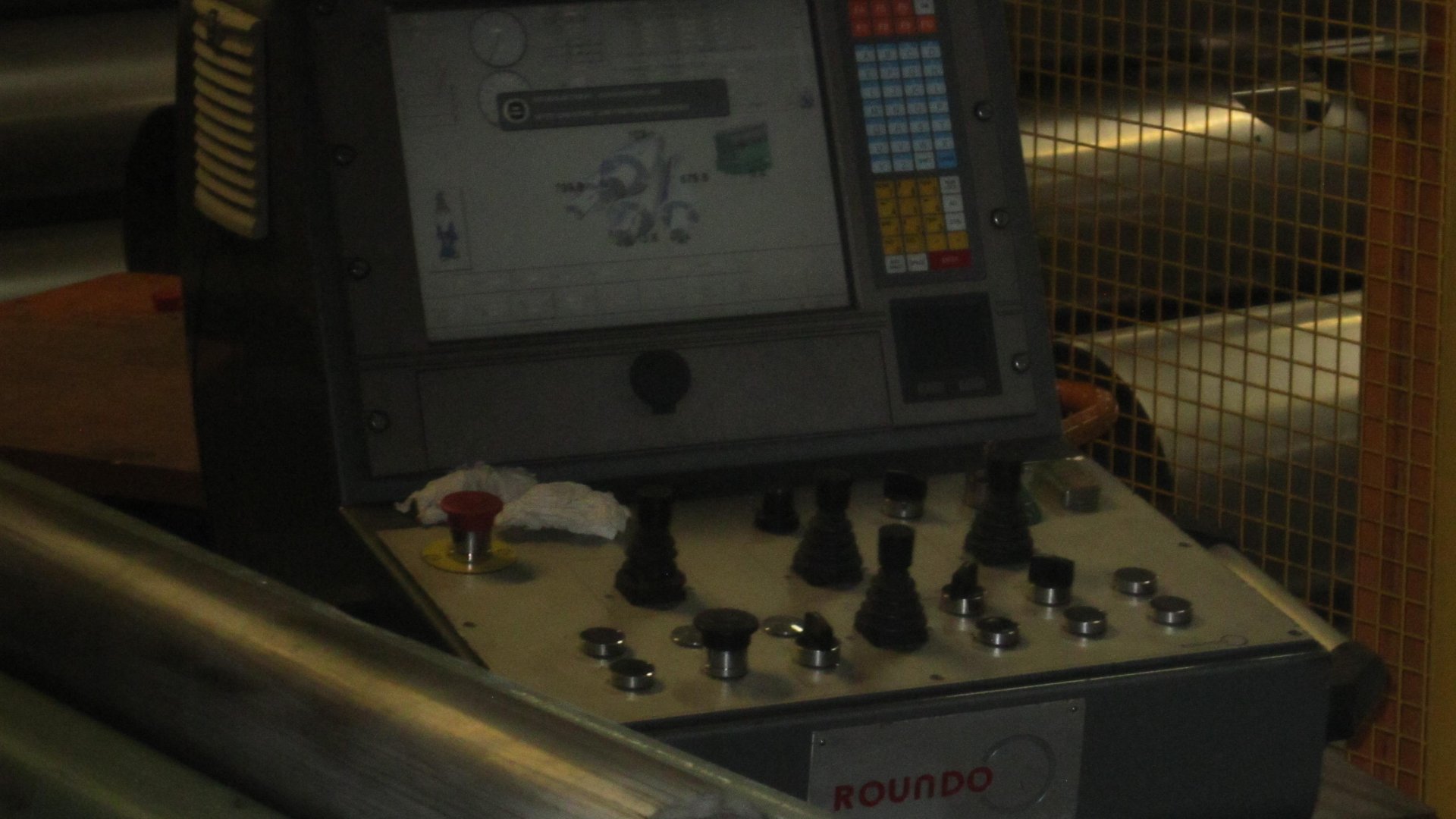

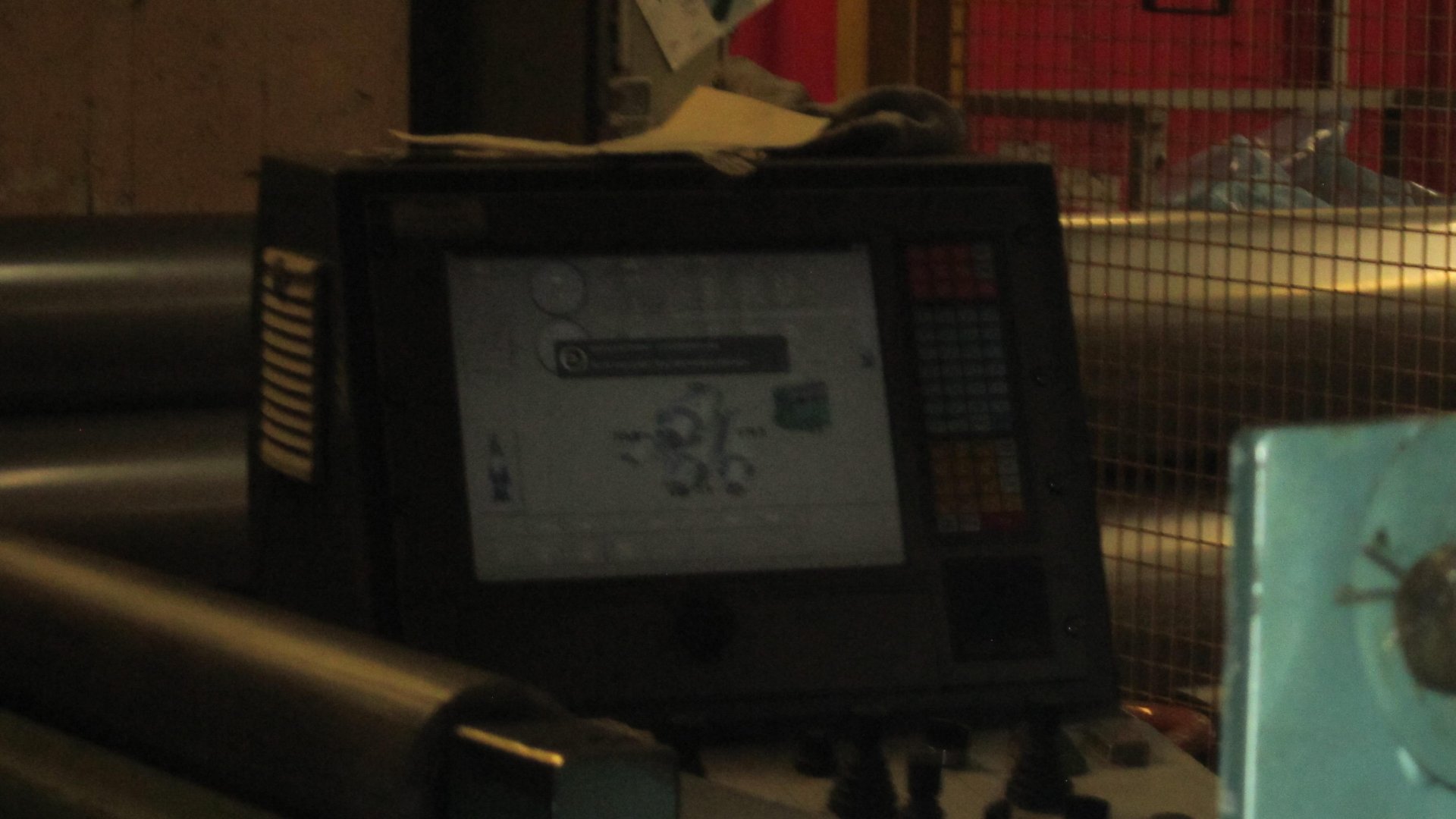

Control: Roundo PASw/CNC2
Number of driven rolls: 2
Power: 11kW
Length: 3500mm
Width: 2100mm
Height: 2300mm
Weight: 10500kg
Specifications:
4 roll plate bender
ROUNDO - PASS 270
Rolling width: 2500mm
Rolling thickness 3x toproll Ø:10mm
Rolling thickness 5x toproll Ø:12mm
Rolling thickness prebending: 8mm
Top Roll Ø: 270mm
Bottom Roll Ø: 270mm
Side roll Ø: 215mm
Number of rolls: 4
Rolling speed: 0 - 6
Adjustiment lower roll: 200mm/min.
Adjustment side rolls: 200mm/min.
Control: Roundo PASw/CNC2
Number of driven rolls: 2
Power: 11kW
Length: 3500mm
Width: 2100mm
Height: 2300mm
Weight: 10500kg
