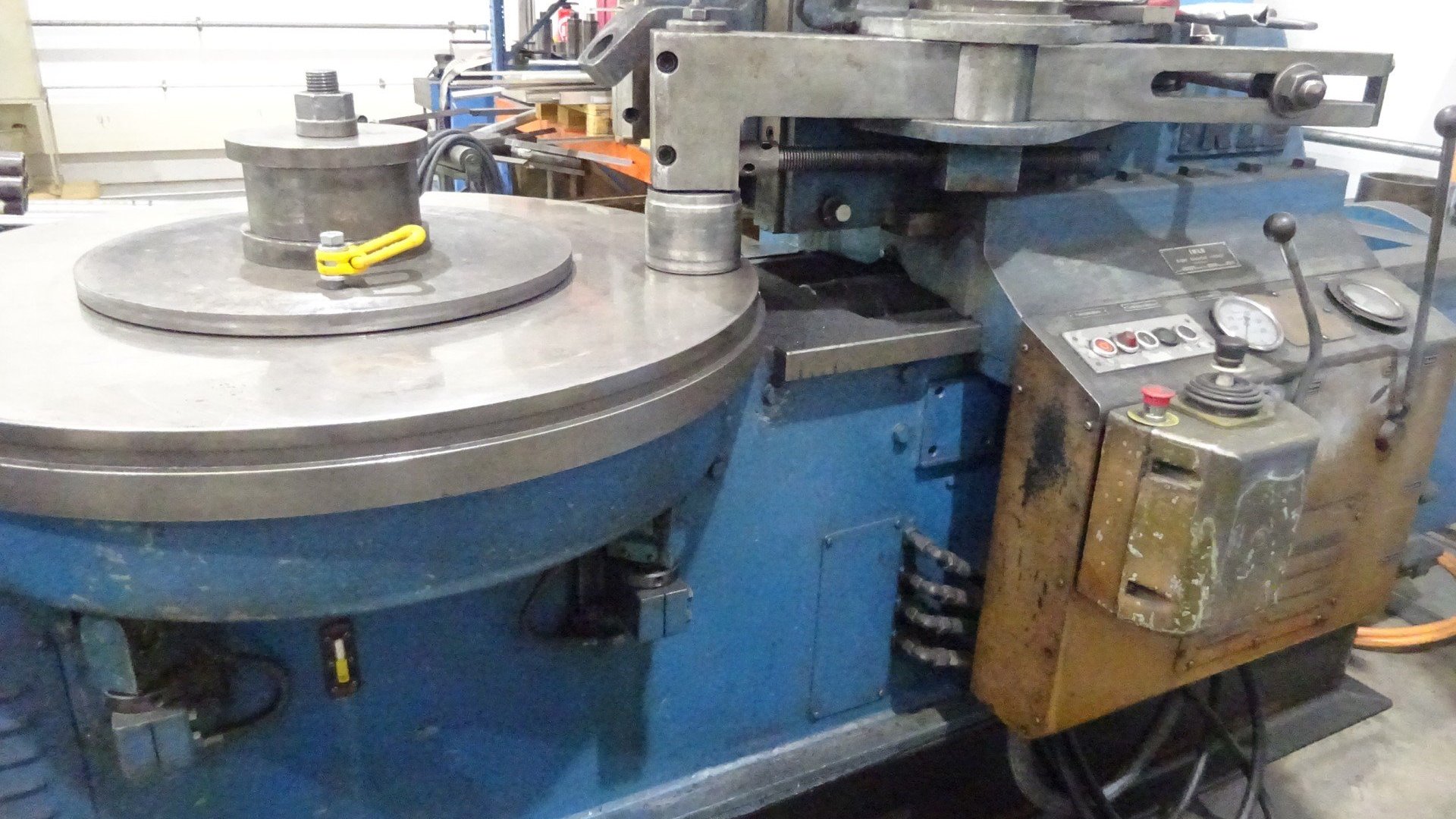

Profile bending machine IRLE - B 100 HH
Cast iron face plate diameter 1000 mm
Double suppport rolling slide
Rotation face plate 0 - 10 U/Min
For HOT & Cold bending jobs
Hardned & Grounded guideways
Cast iron extra table 1600 mm
Horizontal and vertical:Vertical
Number of rolls: 2
Stroke X-Axis: 1200mm
Capacity flat: 80 x 20mm
Capacity bar: 65 x 65mm
Capacity T-Profile: 100 x 100mm
Working speed: 2/3/5mm/min.
Adjustment siderolls: 200
Length: 3470mm
Width: 1600mm
Height: 1850mm
Weight: 4000kg
Specifications:
Profile bending machine IRLE - B 100 HH
Cast iron face plate diameter 1000 mm
Double suppport rolling slide
Rotation face plate 0 - 10 U/Min
For HOT & Cold bending jobs
Hardned & Grounded guideways
Cast iron extra table 1600 mm
Horizontal and vertical:Vertical
Number of rolls: 2
Stroke X-Axis: 1200mm
Capacity flat: 80 x 20mm
Capacity bar: 65 x 65mm
Capacity T-Profile: 100 x 100mm
Working speed: 2/3/5mm/min.
Adjustment siderolls: 200
Length: 3470mm
Width: 1600mm
Height: 1850mm
Weight: 4000kg
