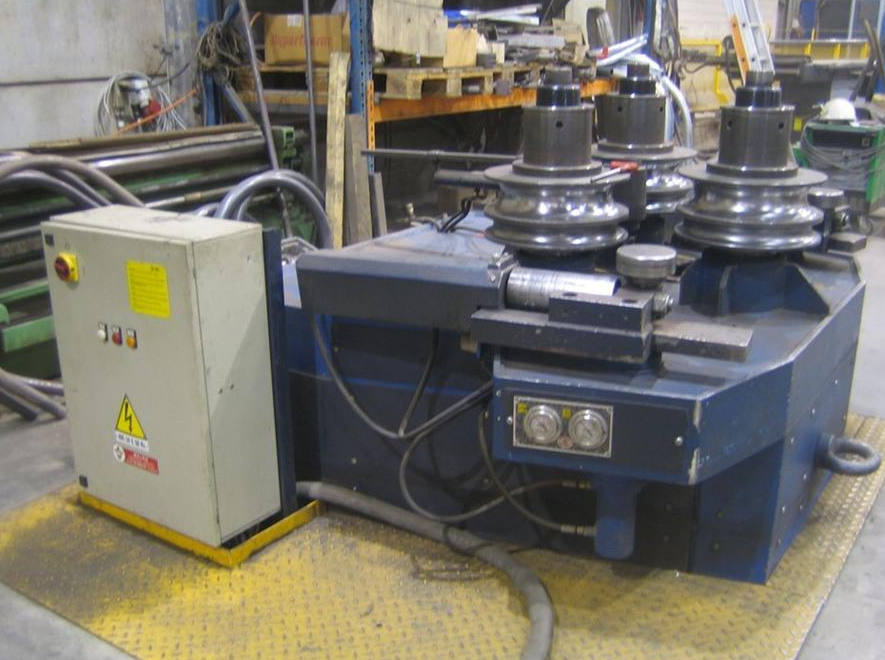

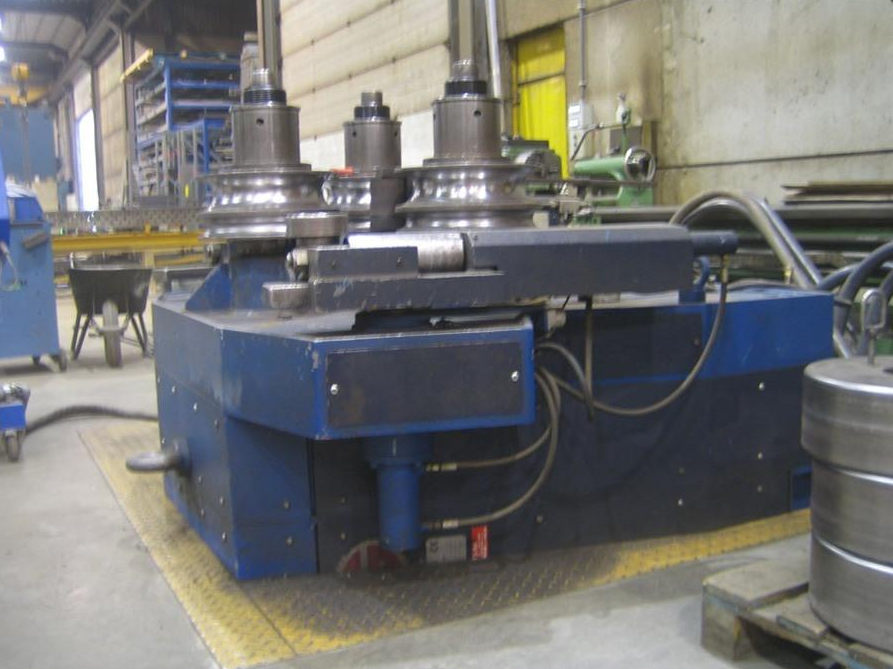

Profile bending machine
MG - AR 140
Roll diameter 390 mm
2 sets off rolls included
Hydraulic side support Left & Right

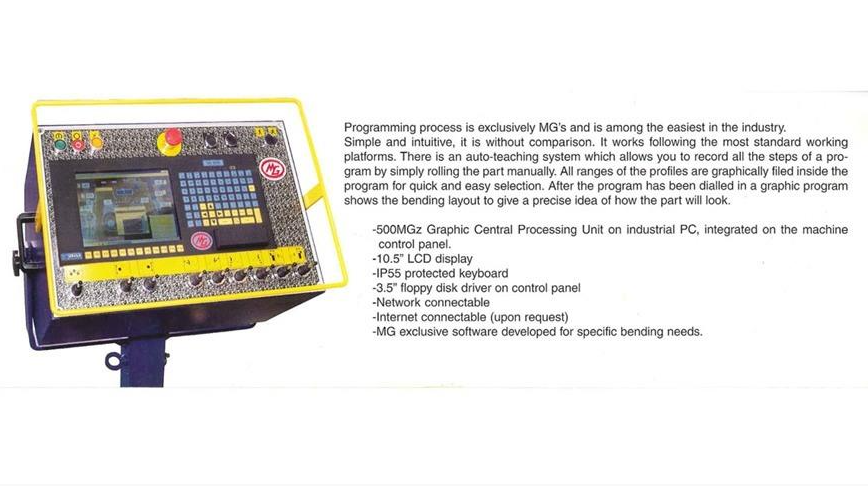

Manuel or NC-Cycle controlled
Horizontal and vertical:Yes, Horizontal + Vertical
Shaft Ø: 140mm
Number of rolls: 3
Stroke X-Axis: 400mm
Resistance moment: 130CM³

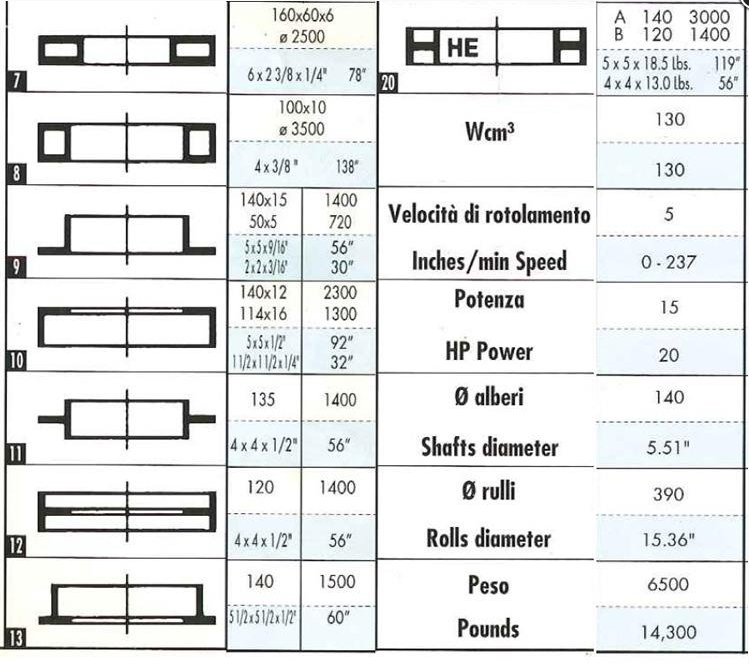

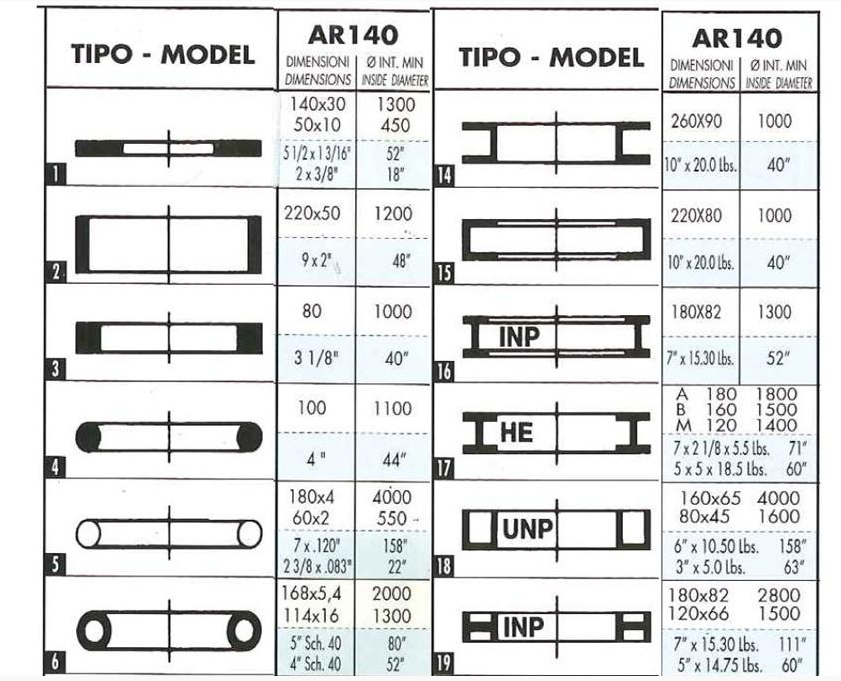

Capacity flat: 220 x 50 x R=2000mm
Capacity Tube: 180 x 4 x R=4000Ø x mm
Capacity bar: 80 x 80 x R=1000mm
Capacity HEA-Profile: 180 x R=1800mm
Working speed: 0 - 5000mm/min.
Adjustment siderolls: Hydraulic
Length: 2100mm
Width: 1900mm
Height: 2100mm
Weight: 6500kg
Specifications:
Profile bending machine
MG - AR 140
Roll diameter 390 mm
2 sets off rolls included
Hydraulic side support Left & Right
Manuel or NC-Cycle controlled
Horizontal and vertical:Yes, Horizontal + Vertical
Shaft Ø: 140mm
Number of rolls: 3
Stroke X-Axis: 400mm
Resistance moment: 130CM³
Capacity flat: 220 x 50 x R=2000mm
Capacity Tube: 180 x 4 x R=4000Ø x mm
Capacity bar: 80 x 80 x R=1000mm
Capacity HEA-Profile: 180 x R=1800mm
Working speed: 0 - 5000mm/min.
Adjustment siderolls: Hydraulic
Length: 2100mm
Width: 1900mm
Height: 2100mm
Weight: 6500kg
