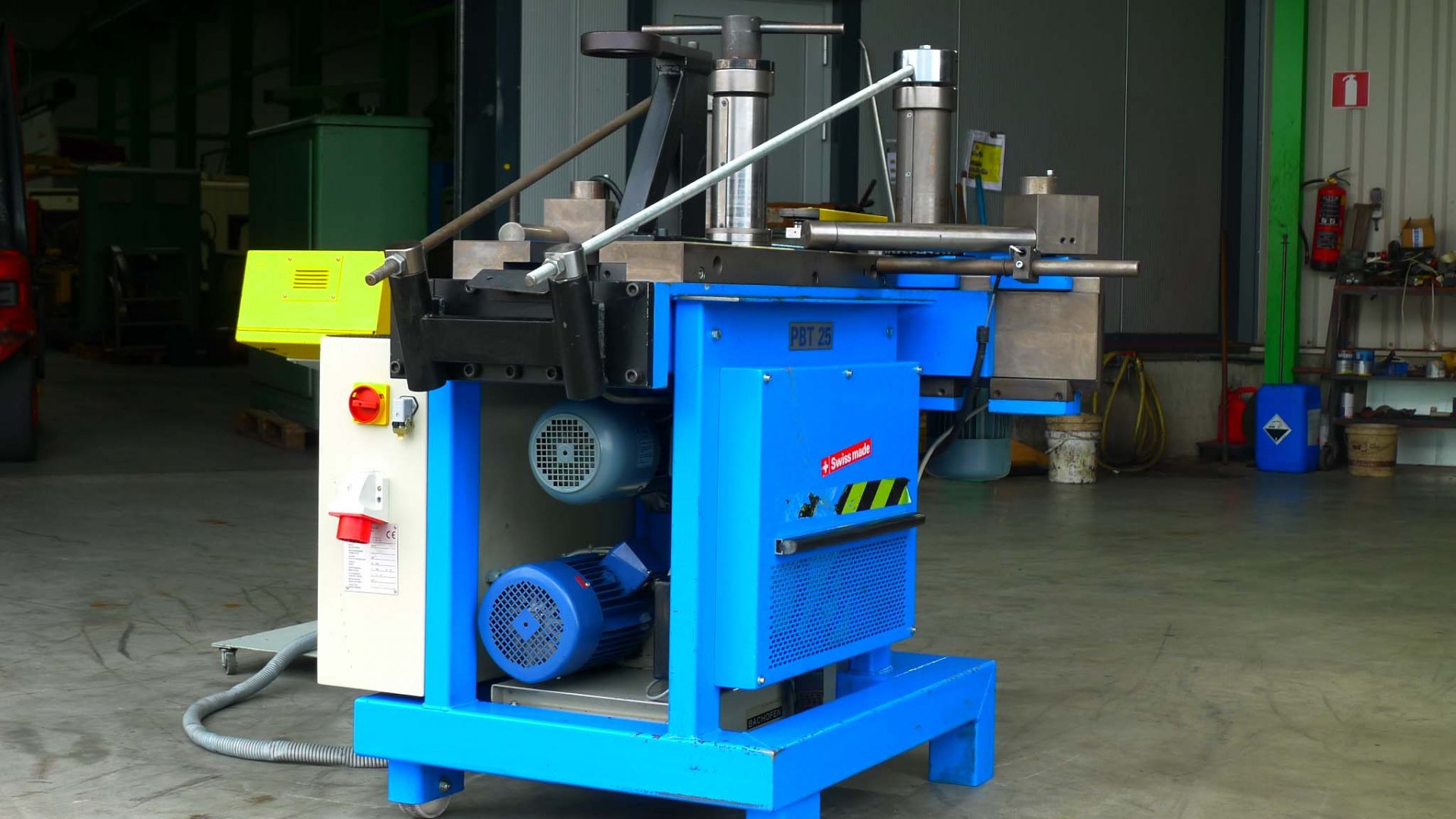

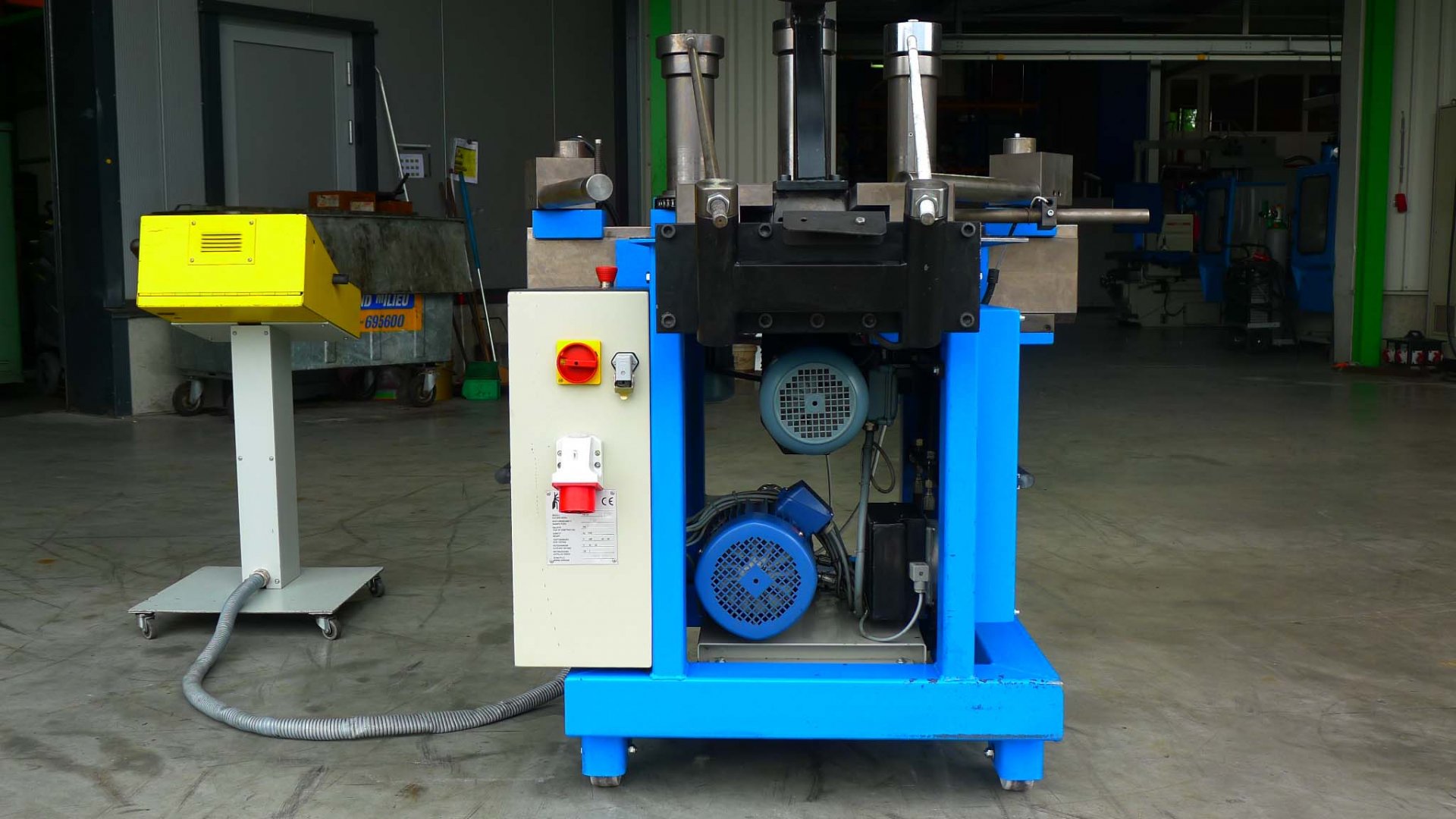

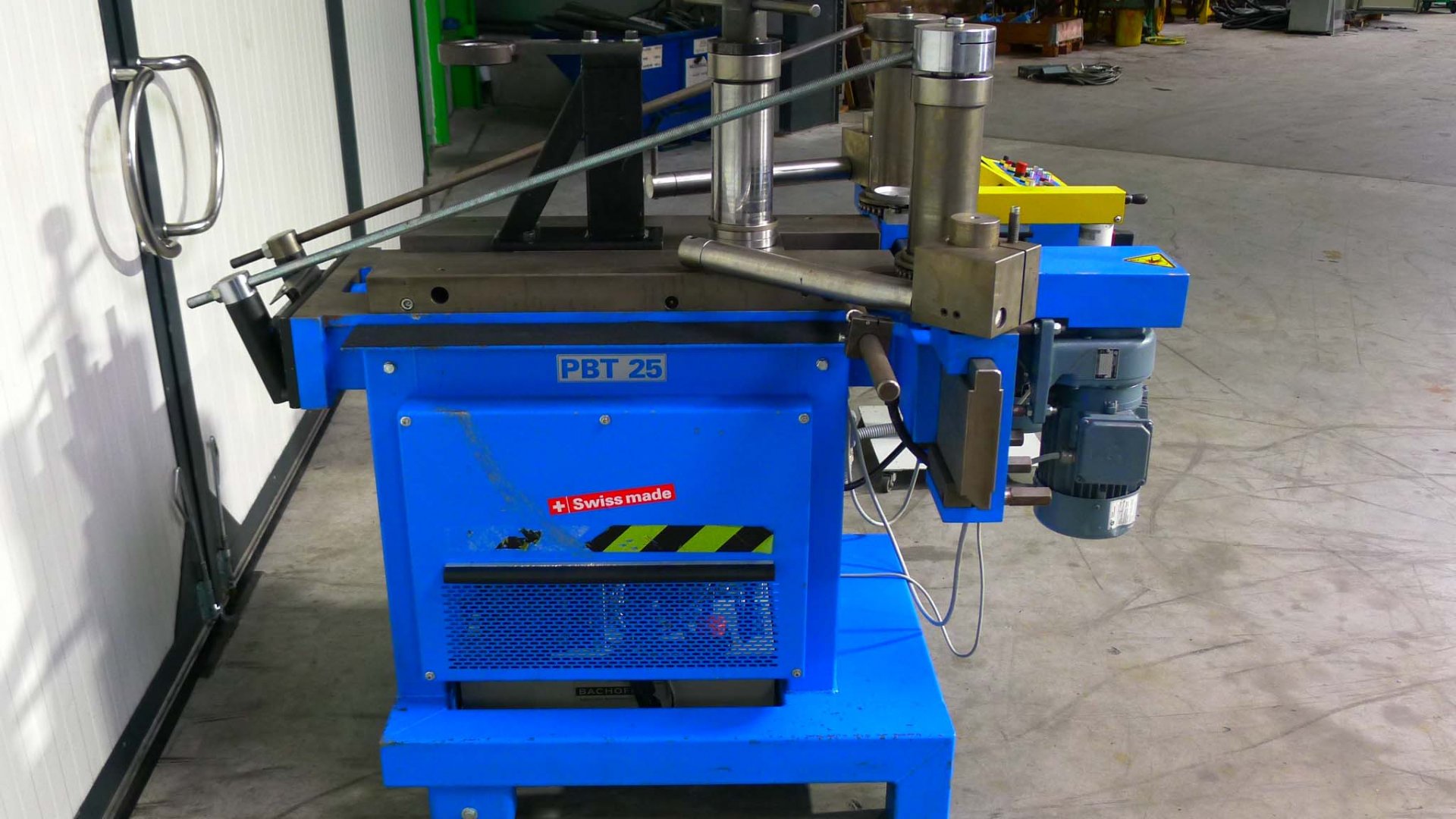

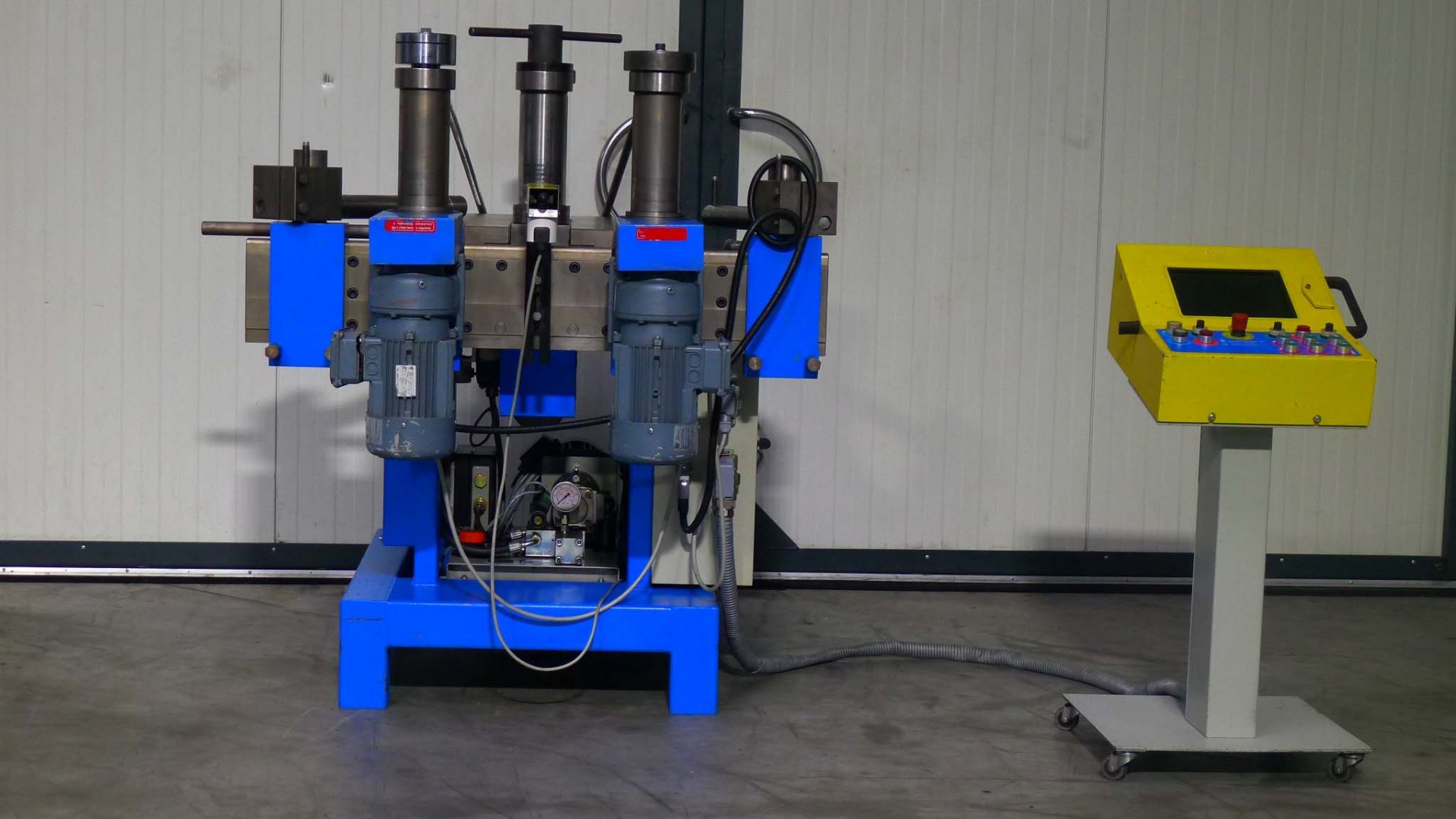

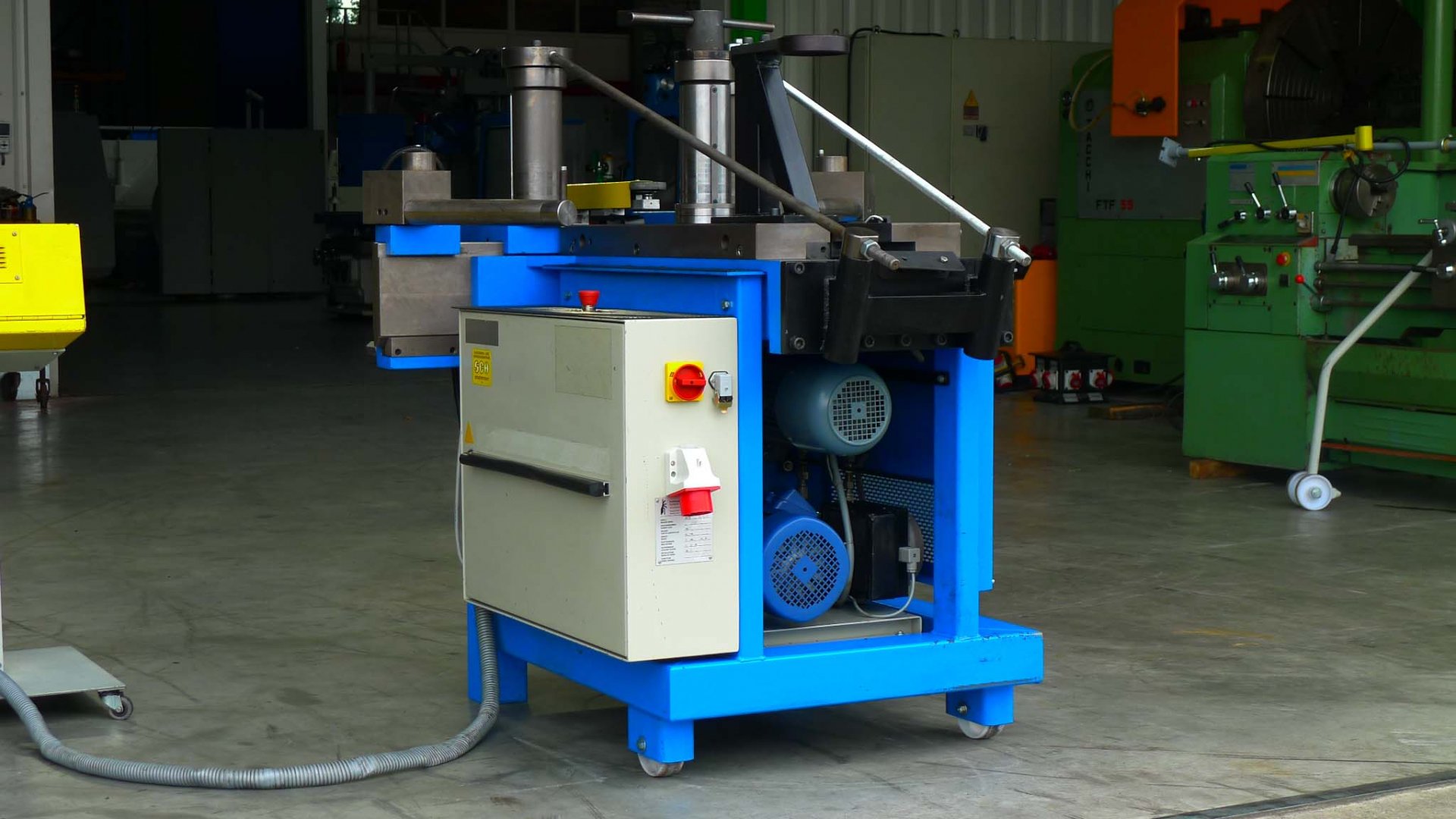

Profile bending machine
PBT Indumasch - 25 PC 200
Capacity X-Axis 27000 Kg
Power X-Axis 3 kW
Rol height up to 300 mm
Touch screen PC 200
Side rolls 200 - 1000 mm adjustable
Horizontal and vertical:Horizontal

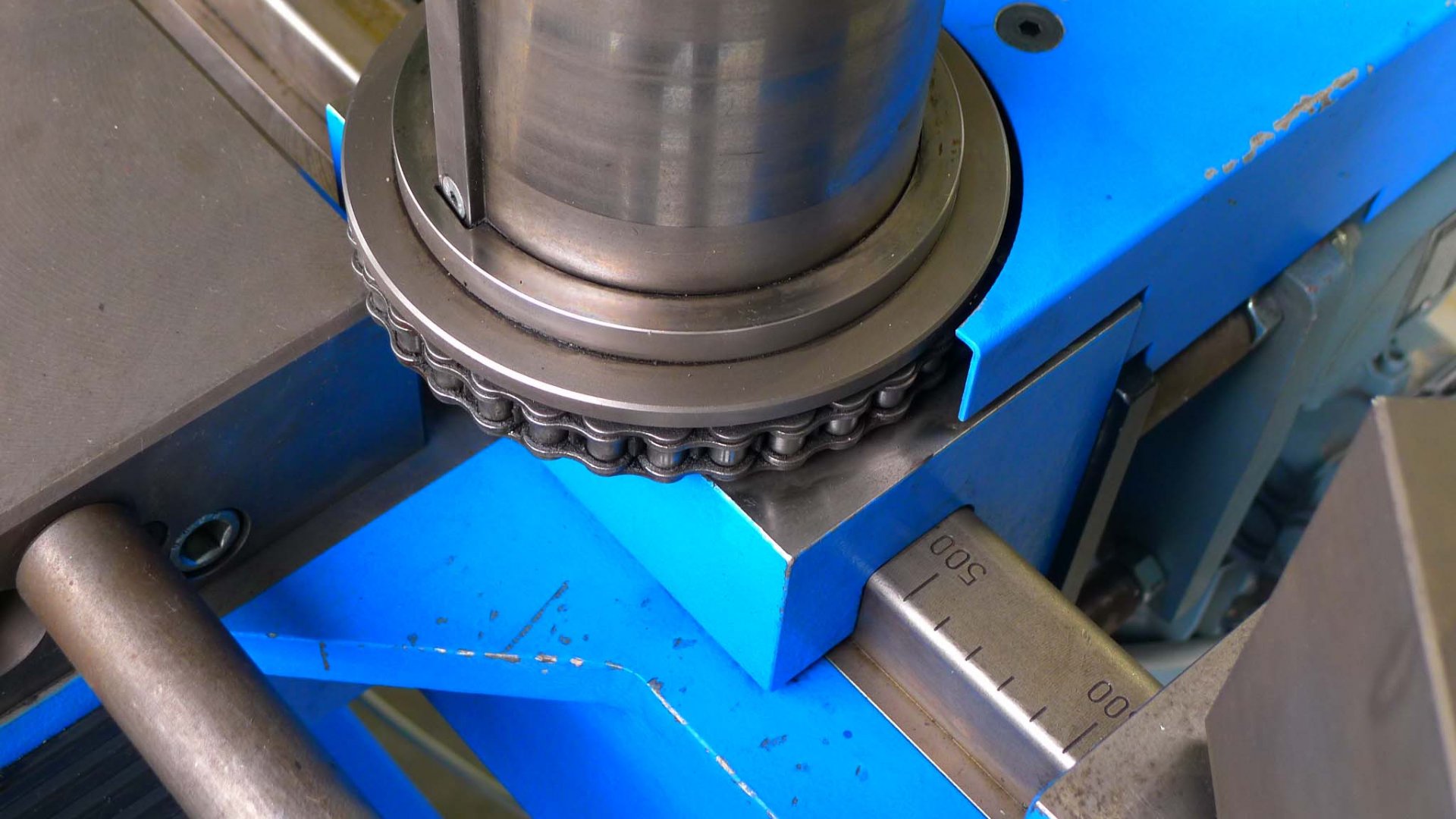

Shaft Ø: 105mm
Number of rolls: 3 rolls (interpolation)
Stroke X-Axis: 265mm
Resistance moment: 1600 NmCM³
Capacity flat: 120 x 15 x R=2000mm

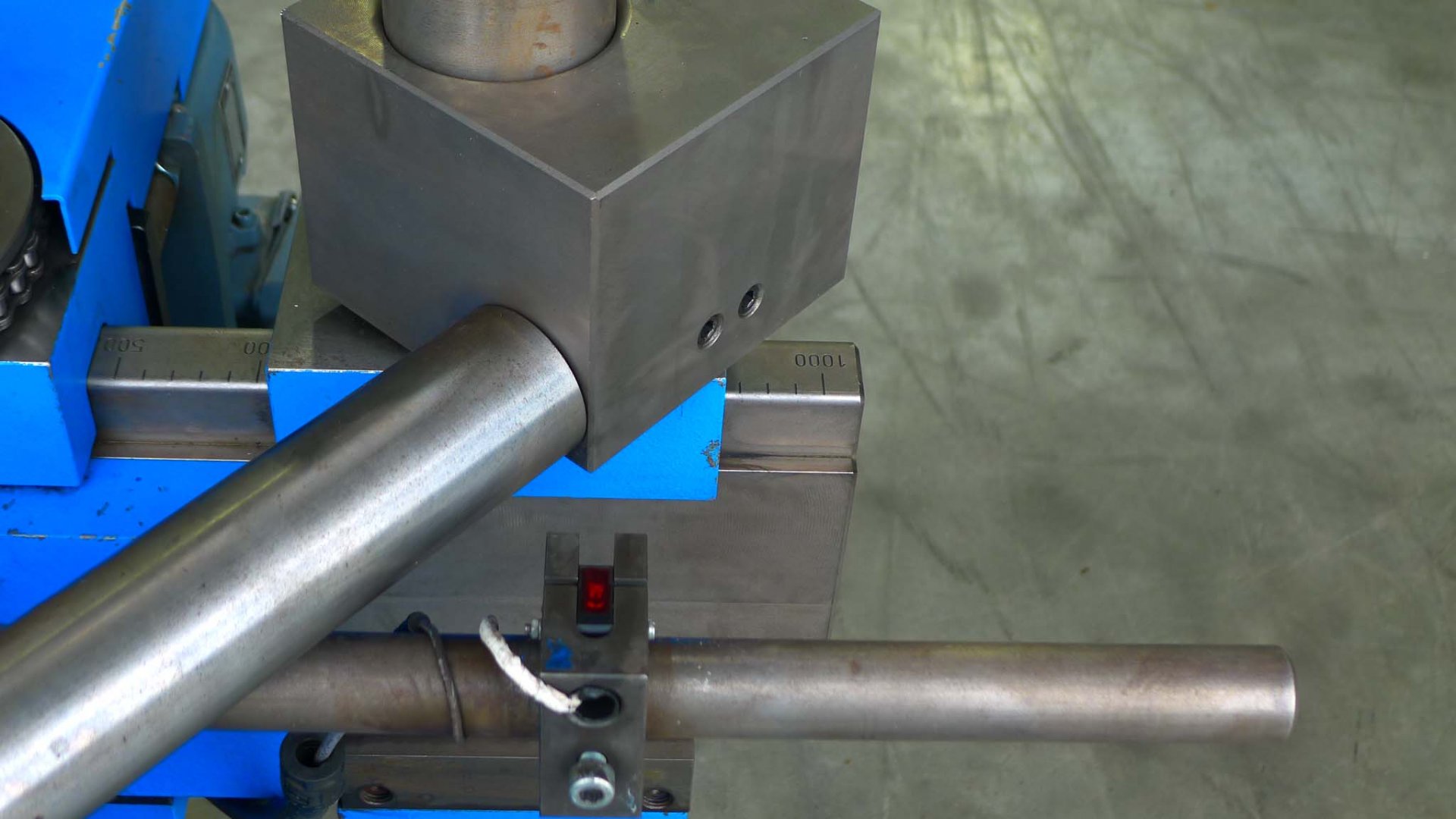

Capacity Tube: 114 x R=2000Ø x mm
Capacity bar: 60 x 60 x R=1000mm
Capacity T-Profile: 80 x 80 x 8 x R=1000mm
Working speed: 0-24 U/Minmm/min.
Length: 1600mm
Width: 1200mm
Height: 1400mm
Weight: 1400kg
Specifications:
Profile bending machine
PBT Indumasch - 25 PC 200
Capacity X-Axis 27000 Kg
Power X-Axis 3 kW
Rol height up to 300 mm
Touch screen PC 200

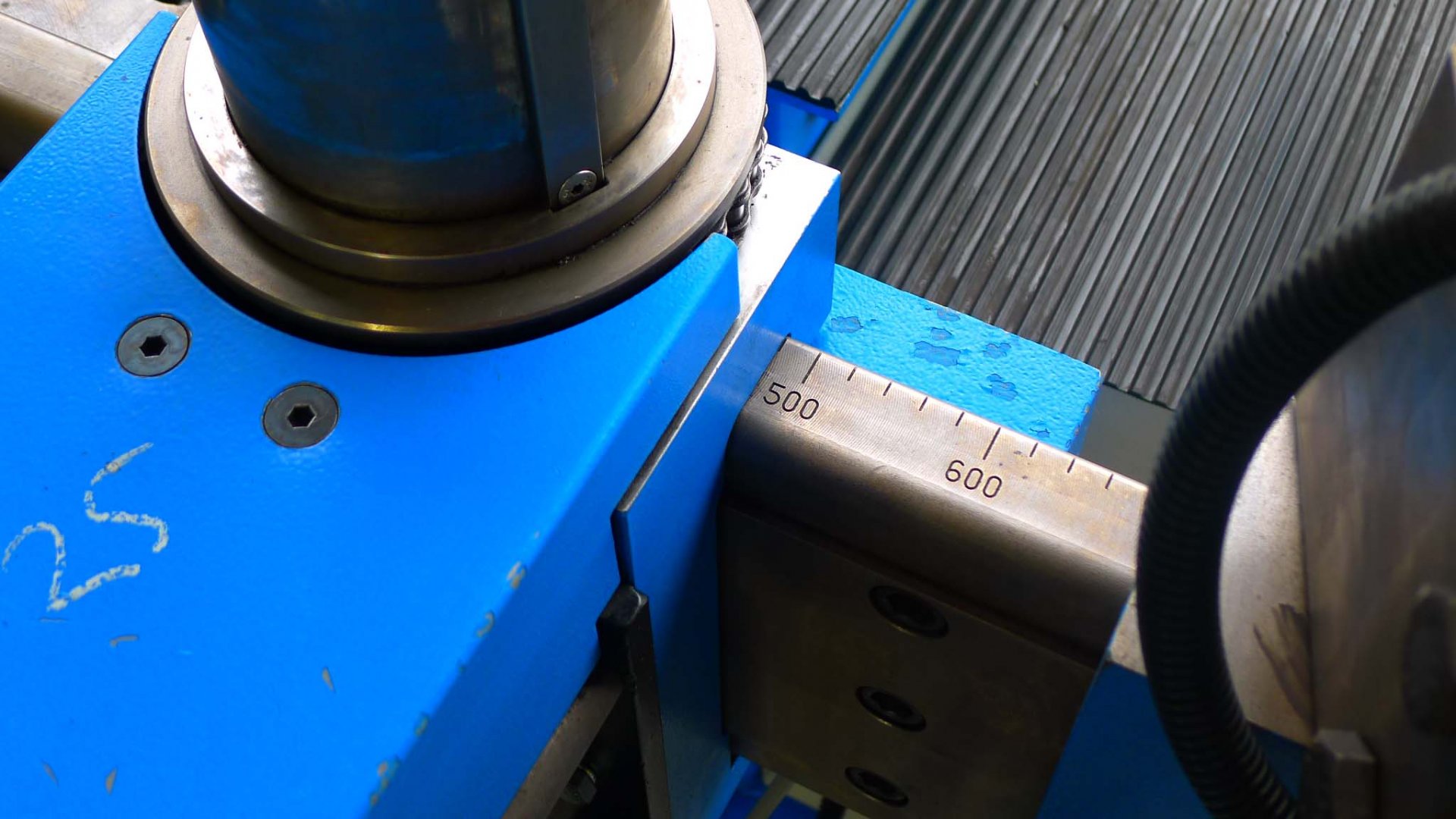

Side rolls 200 - 1000 mm adjustable
