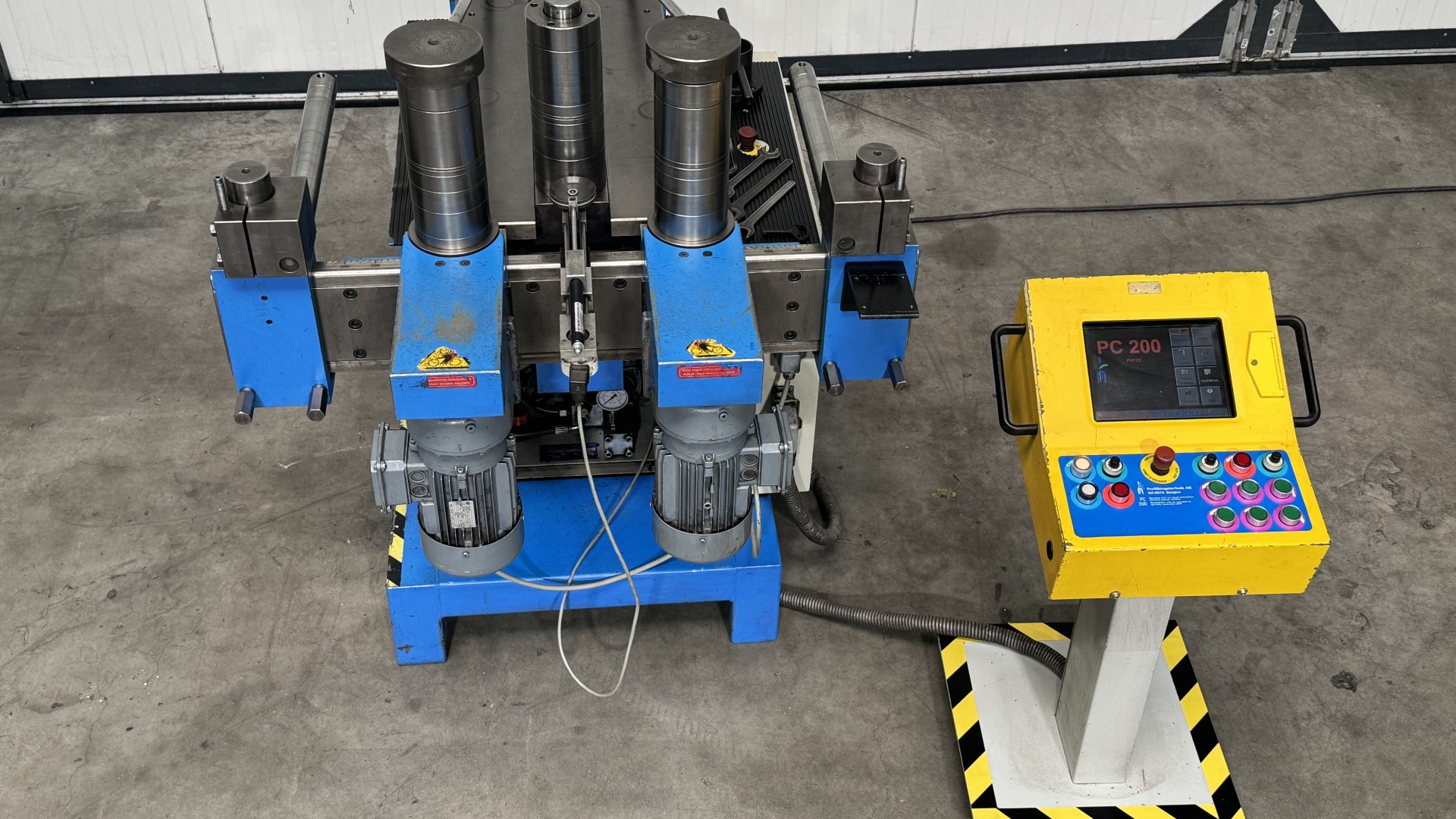

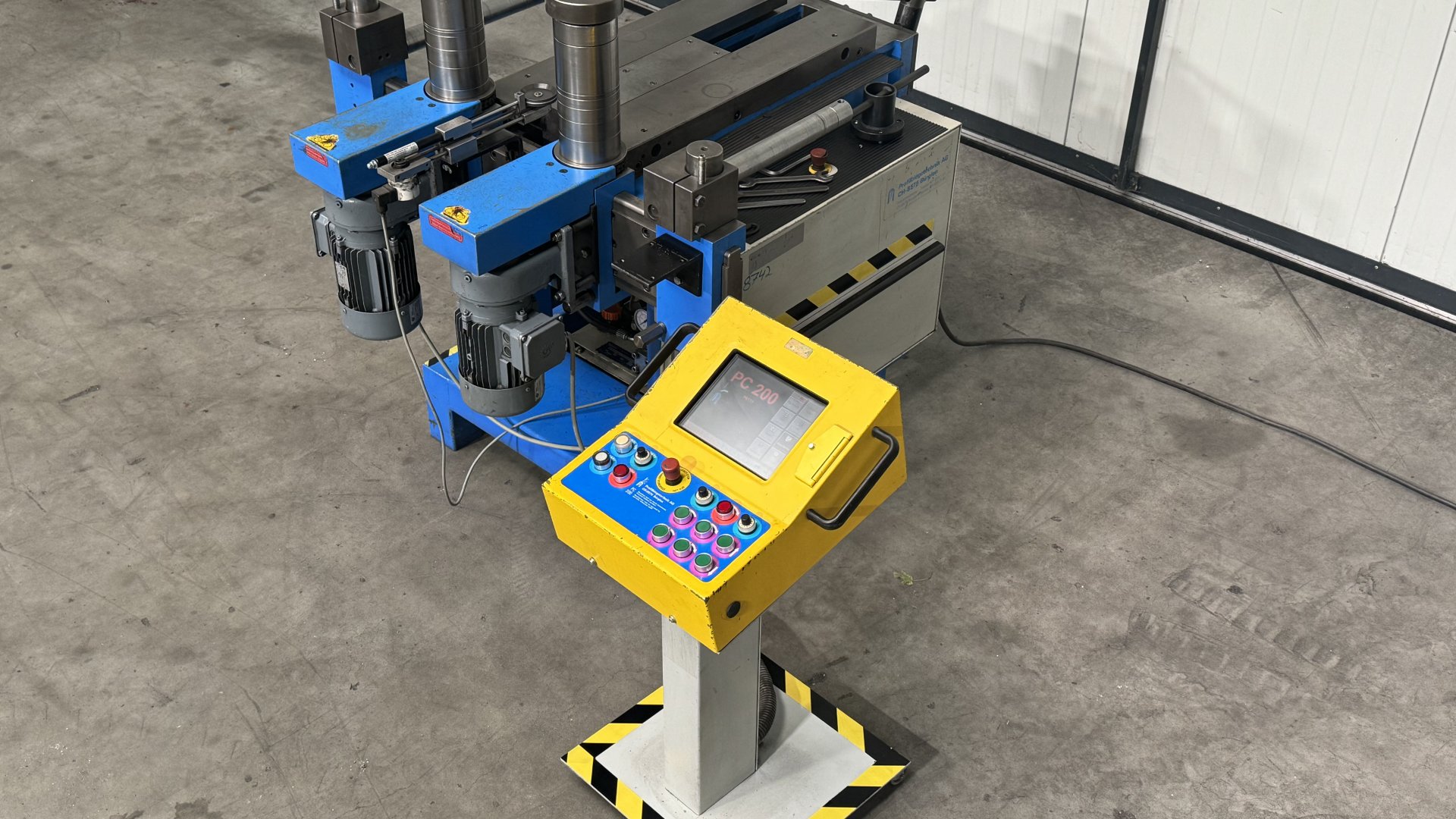

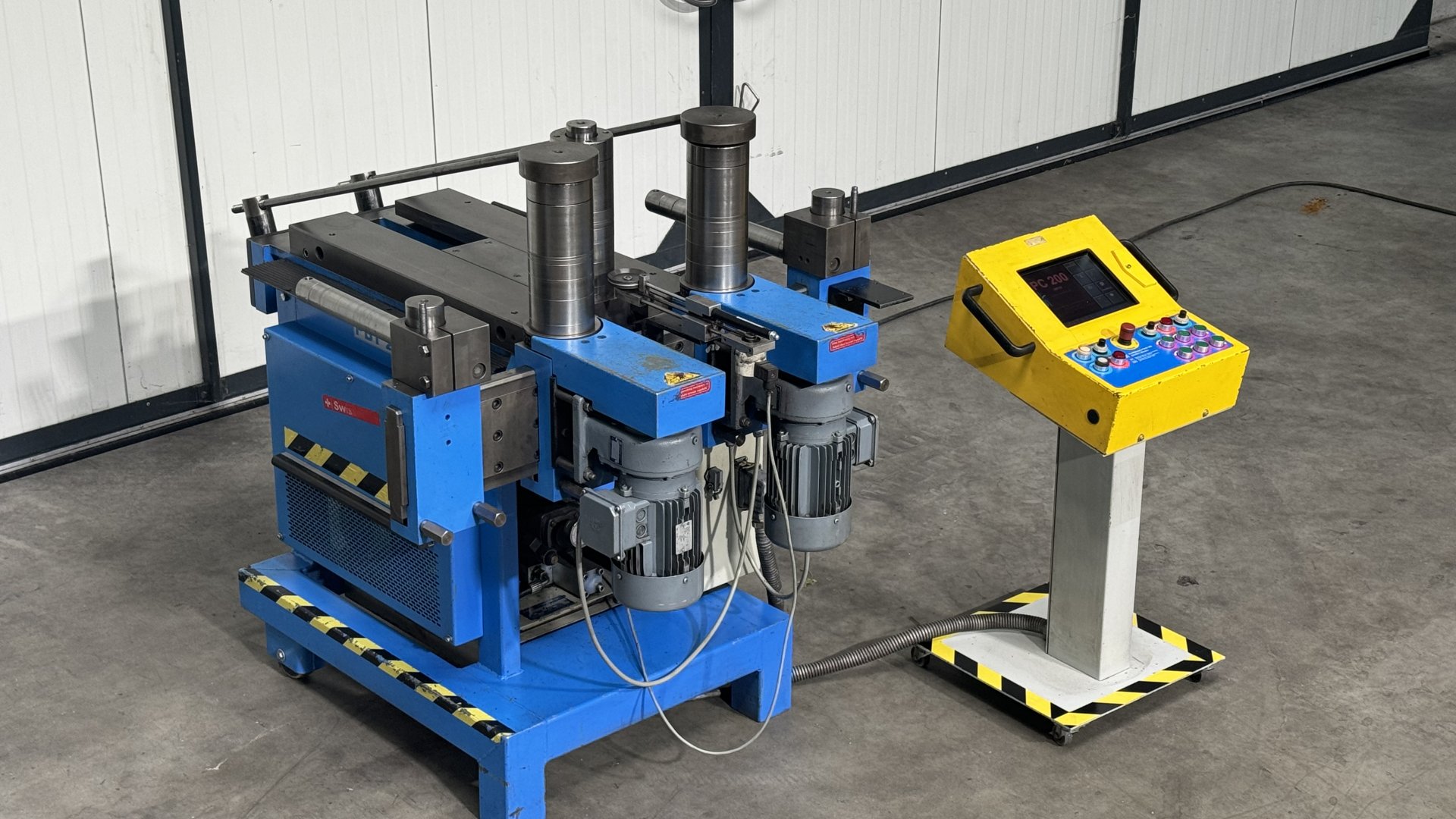

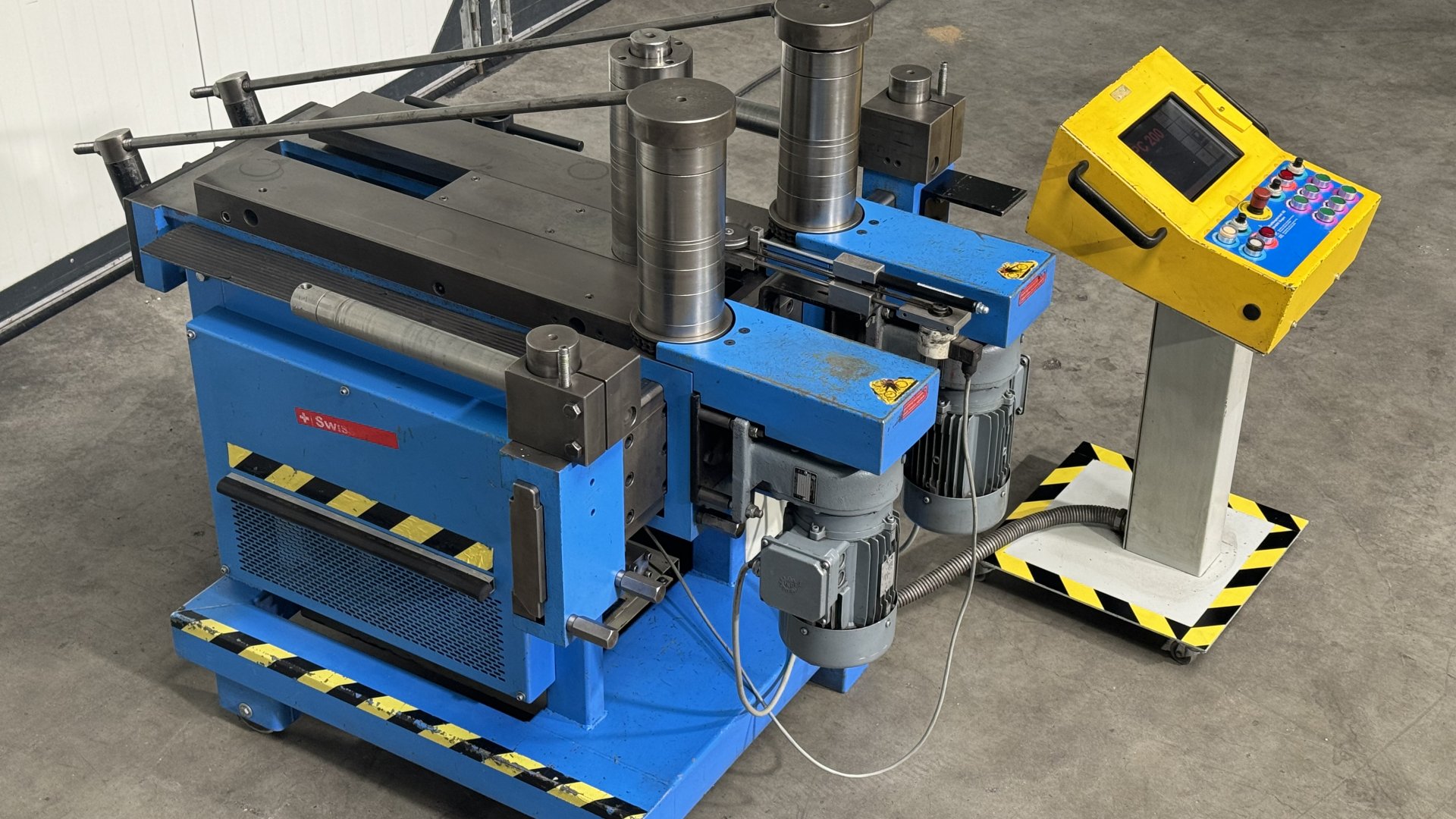

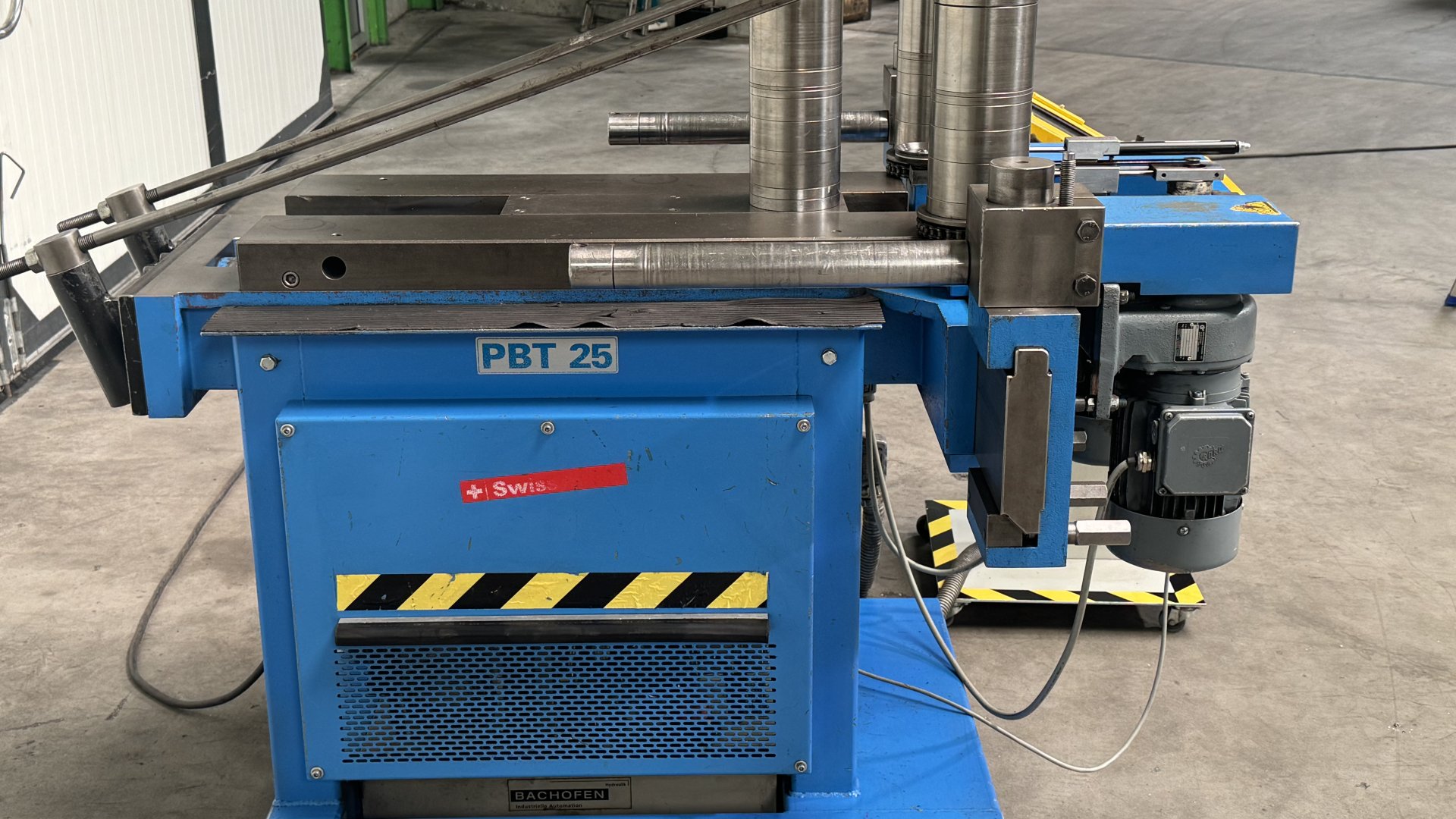

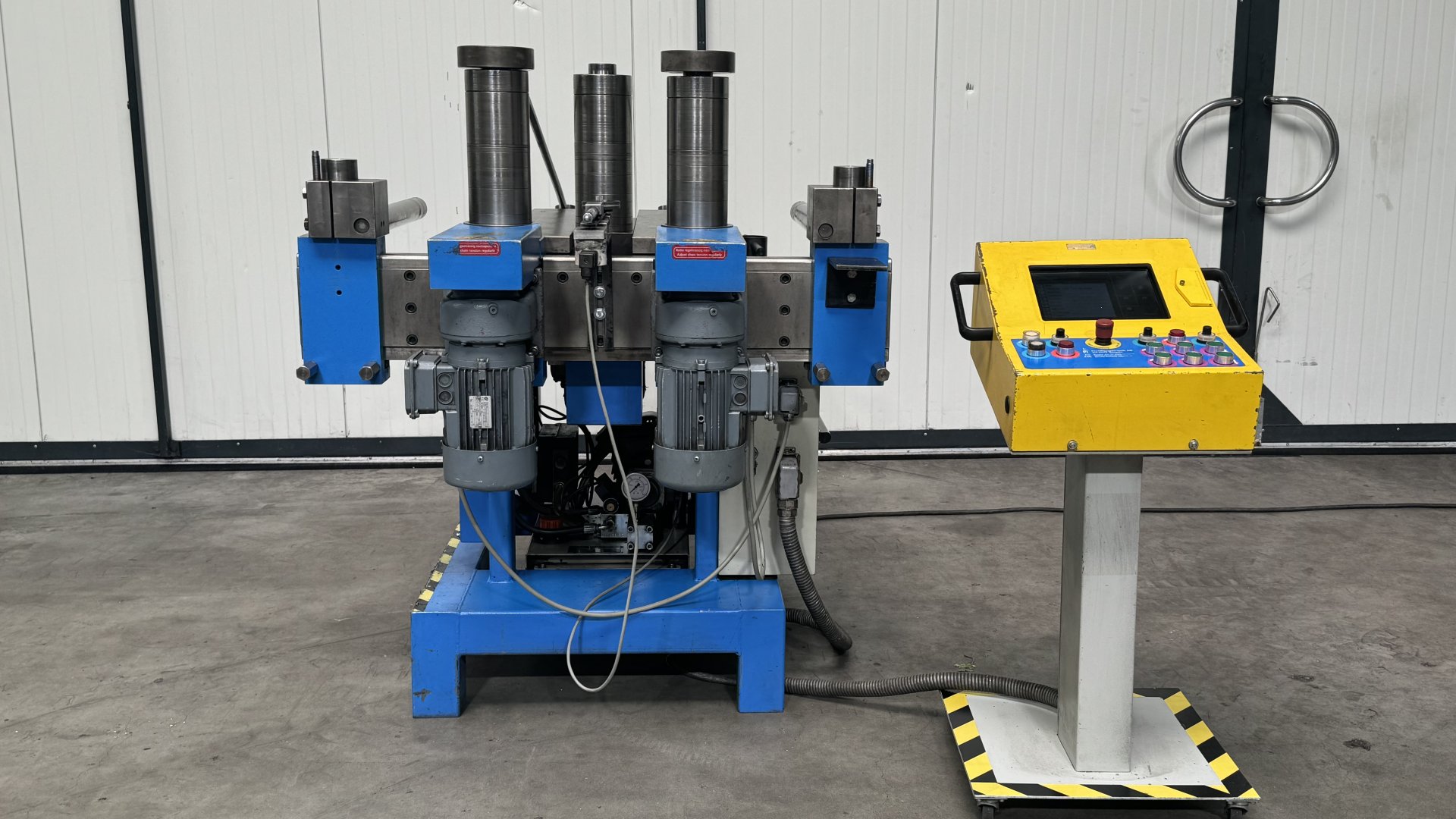

Profile bending machine
PBT - 25 PC TOUCH 200
3 roll driven
Interpolation
Roll height 300 mm

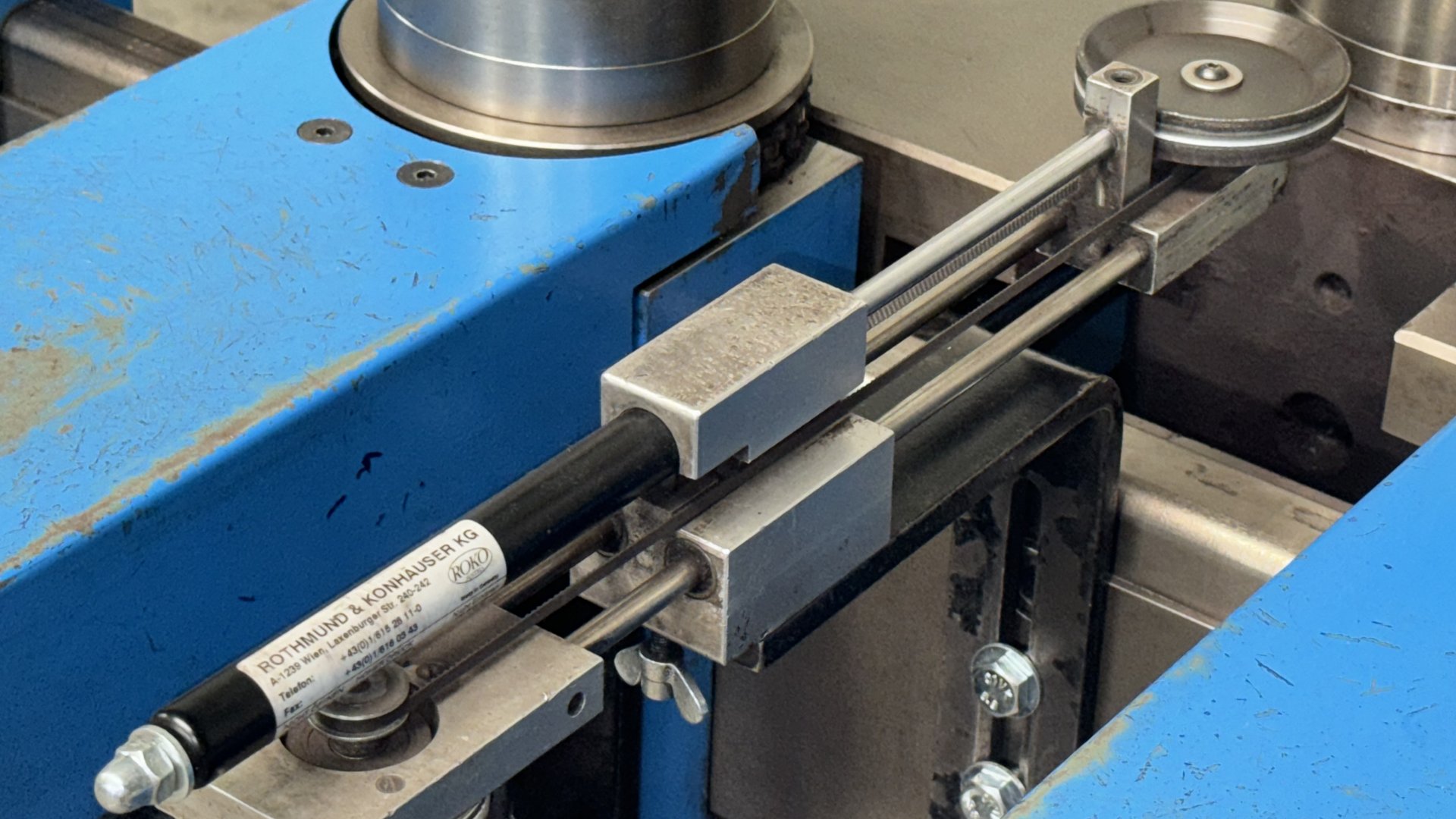

Radius measuring system
Power X-Axis 3 kW
Horizontal and vertical:Horizontal & Vertical
Shaft Ø: 105mm
Number of rolls: 3
Stroke X-Axis: 265mm
Capacity flat: 80 x 80 x R=1000mm
Capacity Tube: 114 x 3 x R = 2000Ø x mm
Capacity bar: 60 x 60 x R=1000mm
Capacity T-Profile: 80 x 80 x 8 x R=1000mm
Working speed: 1 - 24.000mm/min.

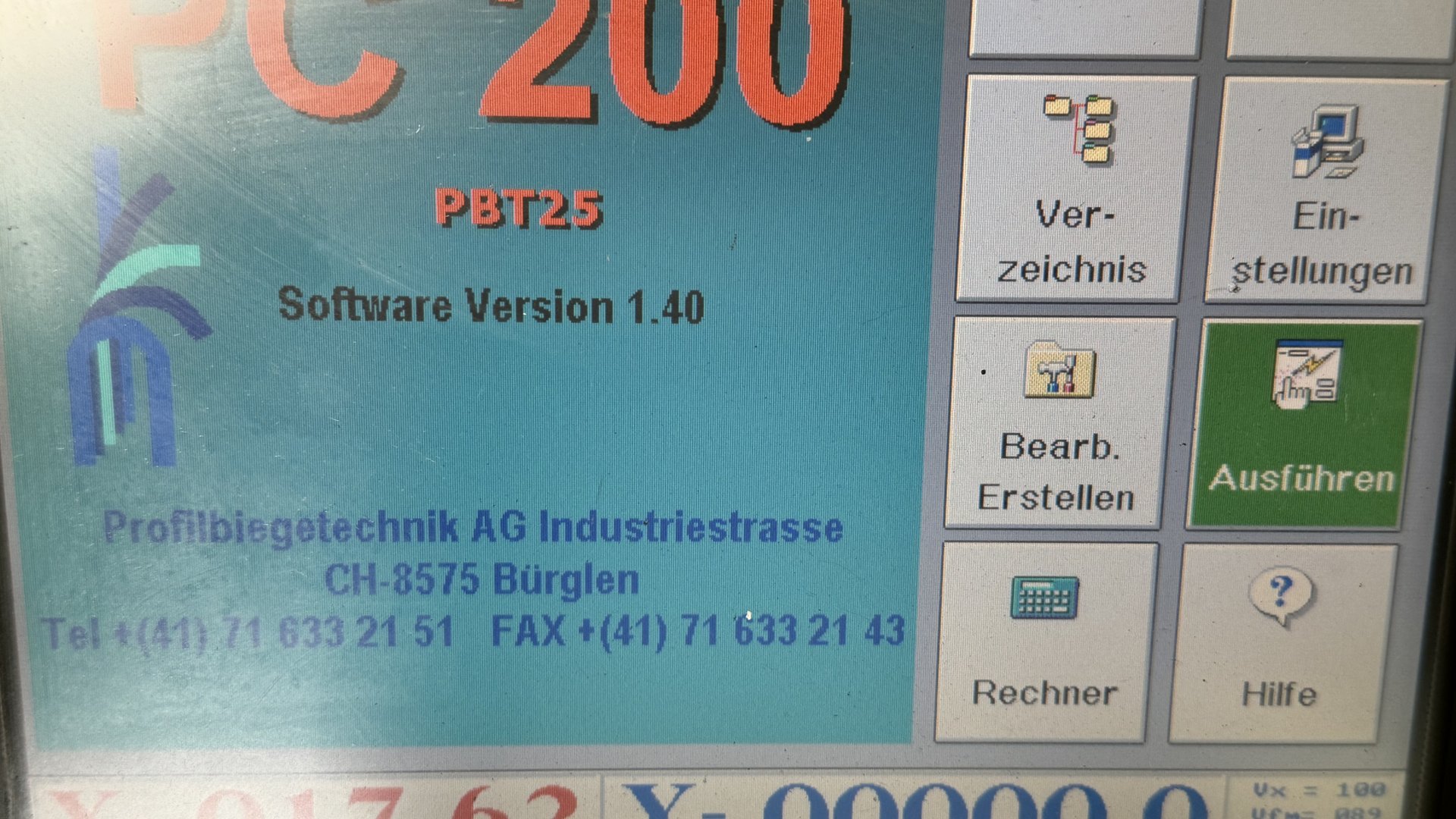

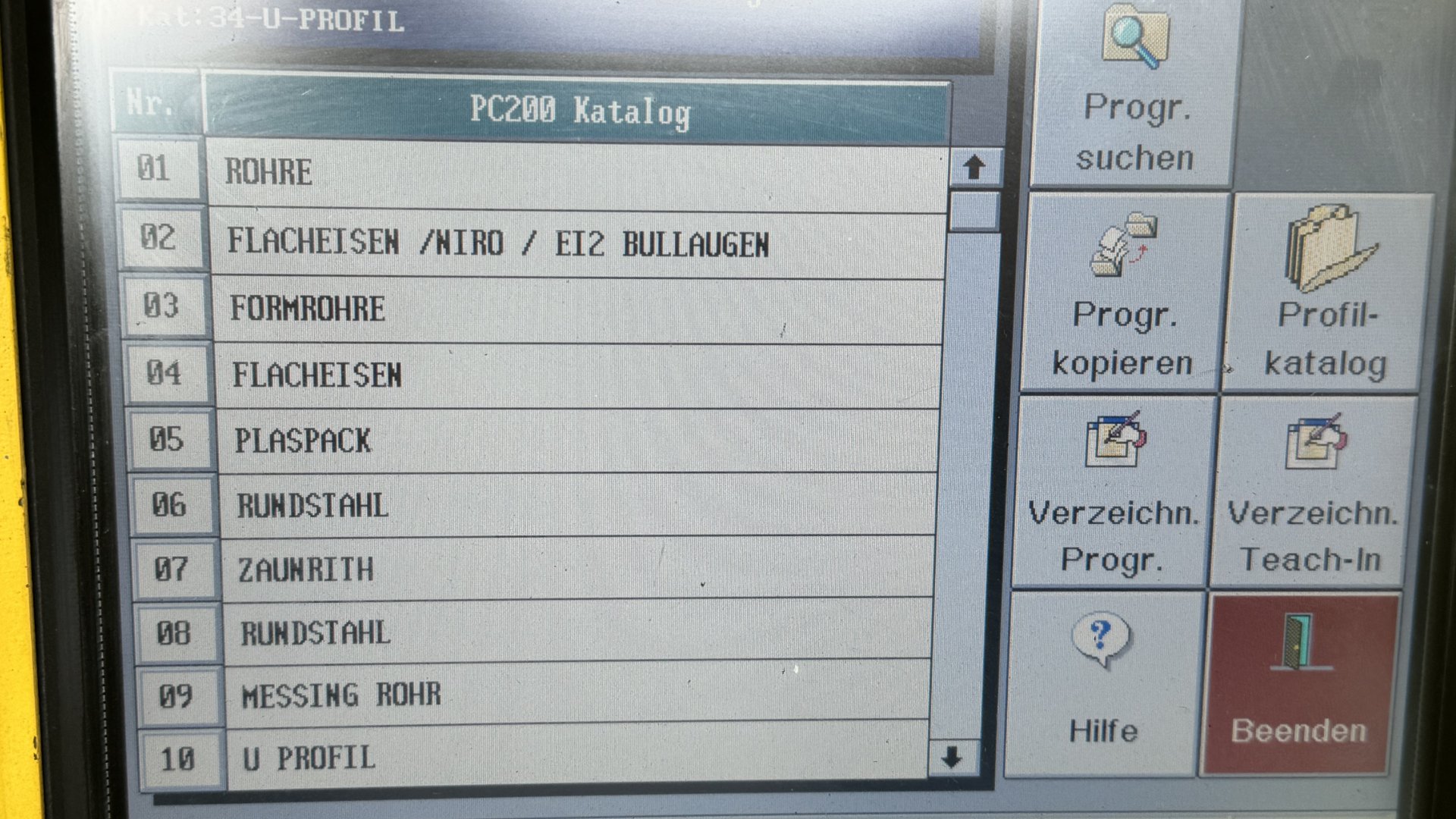

Control: PC 200
Length: 1500mm
Width: 1200mm
Height: 1400mm
Weight: 1200kg
