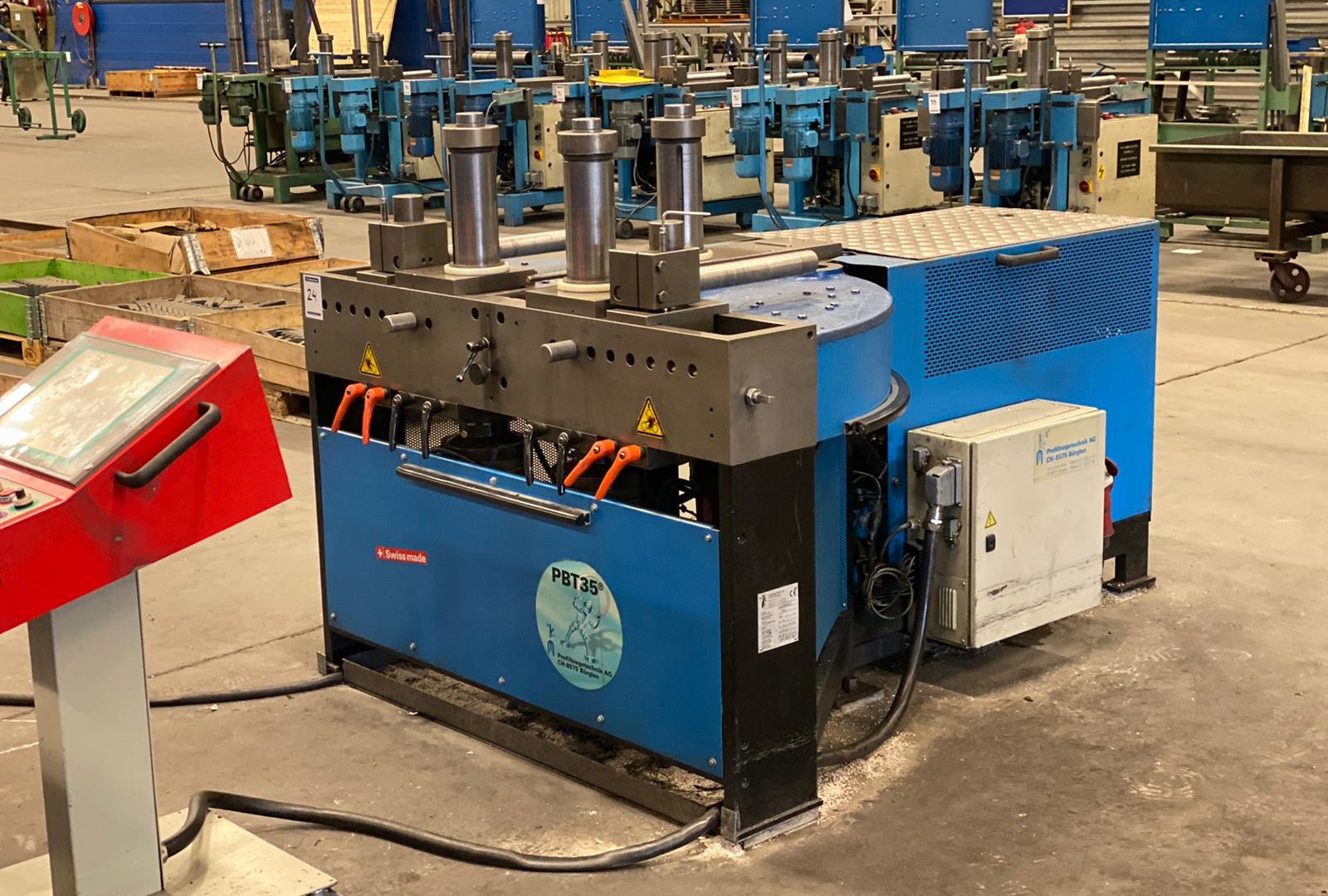

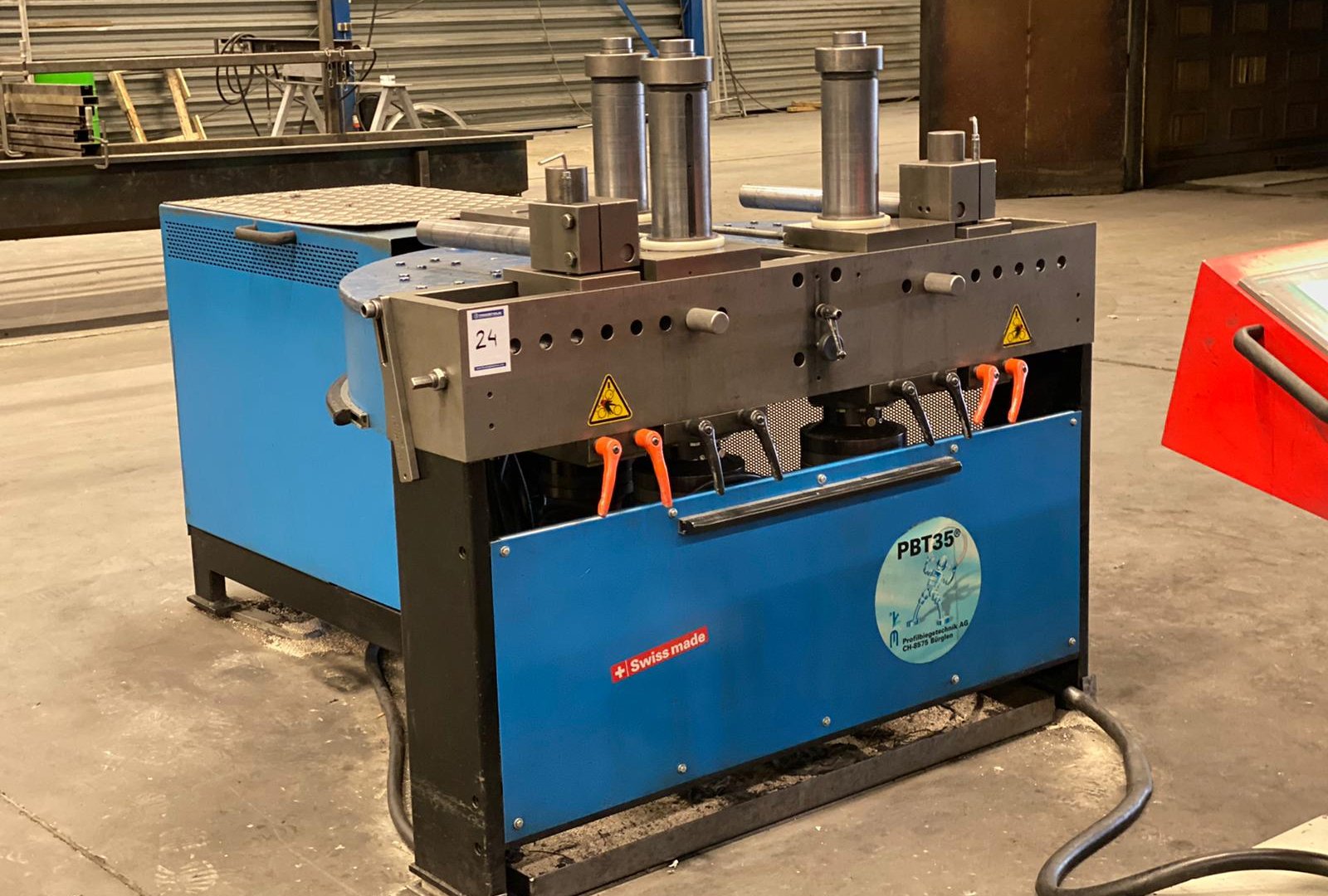

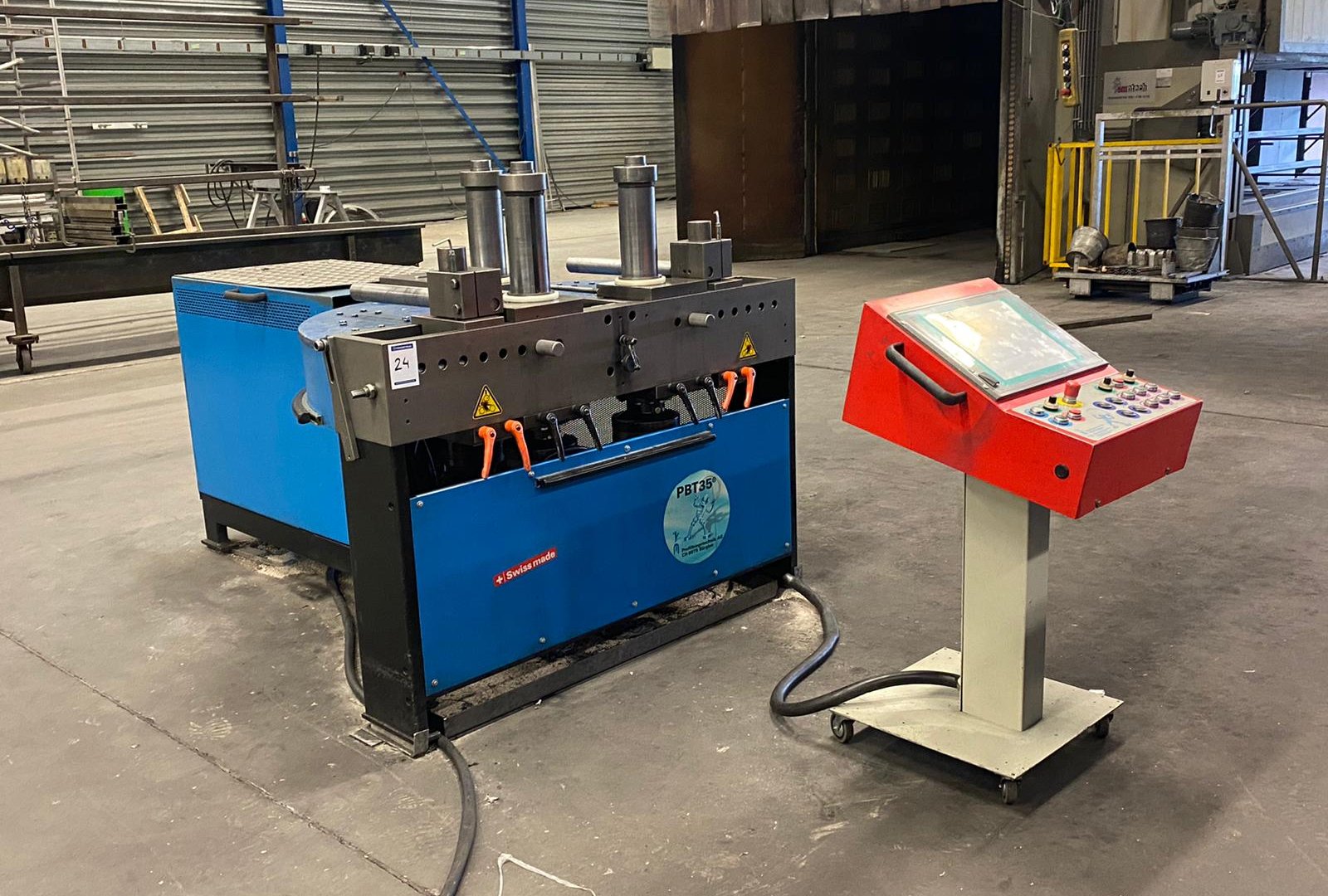

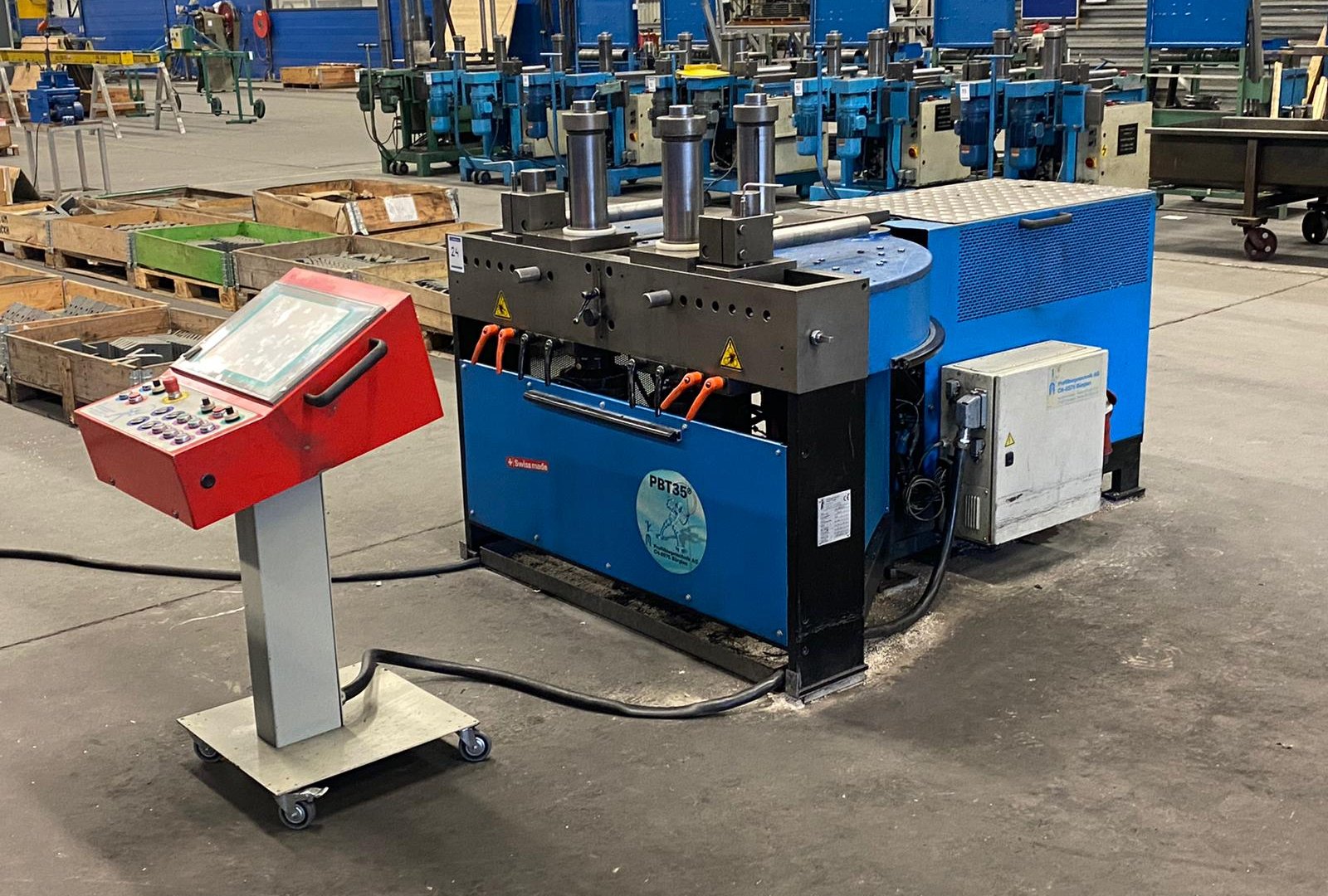

Profile bending machine
PBT - 35 TOUCH 300
MACH-ID 8773
Make: PBT
Type: 35 TOUCH 300
Control: PC 300
Year: 2010
Interpoleren on 3 rolls
Front rolls adjustable 360 - 1100 mm
Hydraulic driven on 3 rolls

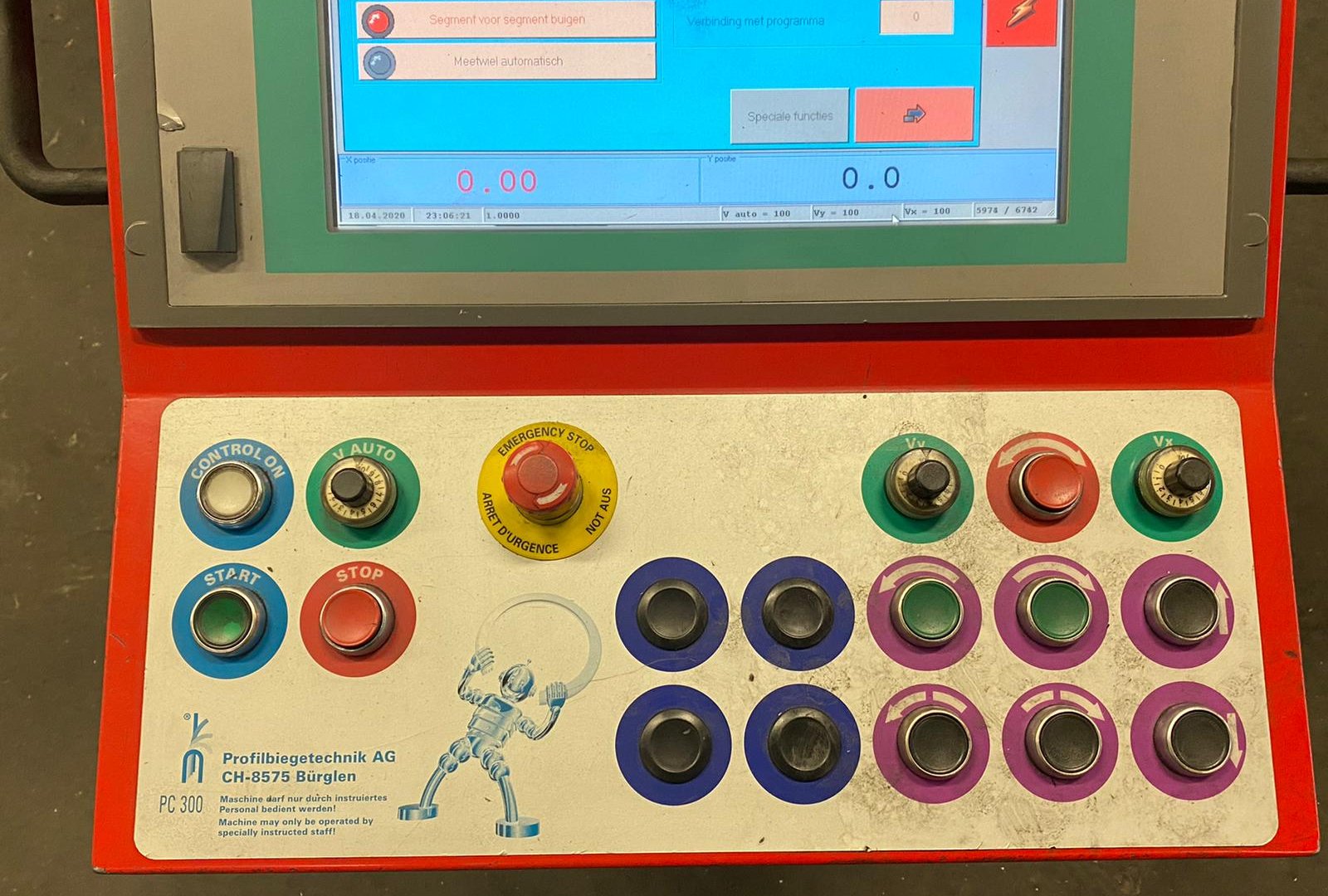

Touch screen with simulation
Horizontal and vertical:Horizontal
Shaft Ø: 105mm
Number of rolls: 3
Stroke X-Axis: 390mm
Capacity flat: 120 x 15 x R=1200mm
Capacity Tube: 180 x R=1100Ø x mm
Capacity bar: 80 x 80 x R=1400mm
Capacity T-Profile: 100x100x10 x R1200mm
Working speed: 1-16.000mm/min.
Length: 1850mm
Width: 1600mm
Height: 1400mm
Weight: 2500kg
Specifications:
Profile bending machine
PBT - 35 TOUCH 300
MACH-ID 8773
Make: PBT
Type: 35 TOUCH 300
Control: PC 300
Year: 2010
Interpoleren on 3 rolls
Front rolls adjustable 360 - 1100 mm
Hydraulic driven on 3 rolls
Touch screen with simulation
Horizontal and vertical:Horizontal
Shaft Ø: 105mm
Number of rolls: 3
Stroke X-Axis: 390mm
Capacity flat: 120 x 15 x R=1200mm
Capacity Tube: 180 x R=1100Ø x mm
Capacity bar: 80 x 80 x R=1400mm
Capacity T-Profile: 100x100x10 x R1200mm
Working speed: 1-16.000mm/min.
Length: 1850mm
Width: 1600mm
Height: 1400mm
Weight: 2500kg
