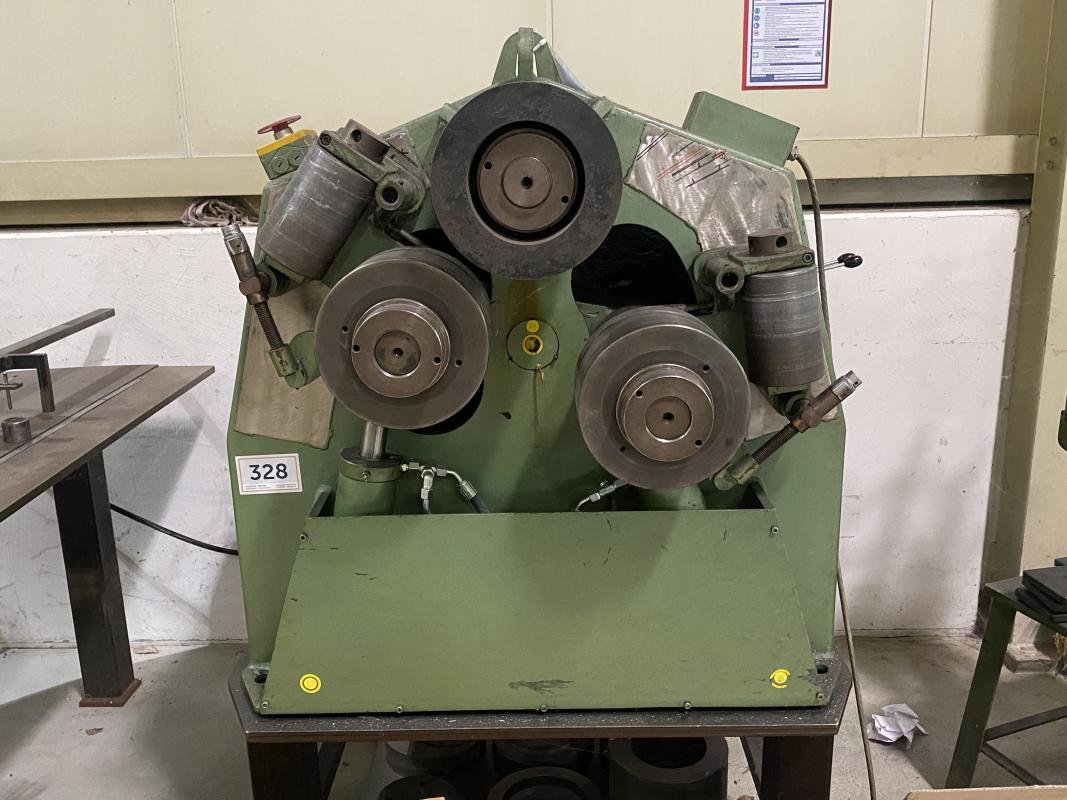

rofile bending machine
ROUNDO - R2
MACH-ID 8771
Make: ROUNDO
Type: R2
Year: 1987
Diameter rolls 190 mm
Two lower rolls are hydraulic adjusted
3 rolls driven
compensation slip clutch for top roll
2 guide rollers for bending A-Symetrical sections
Horizontal and vertical:Horizontal and Vertical
Shaft Ø: 60mm
Number of rolls: 3
Resistance moment: 7CM³
Capacity flat: 60 x 12 x R=400mm
Capacity Tube: 40 x R=500Ø x mm
Capacity bar: 35 x 35 x R=350mm
Capacity T-Profile: 60 x 7 x R=600mm
Working speed: 7000mm/min.
Adjustment siderolls: 150
Length: 1000mm
Width: 1000mm
Height: 900mm
Weight: 800kg
