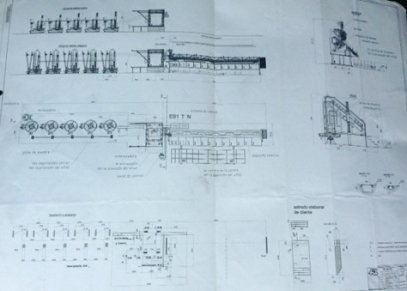

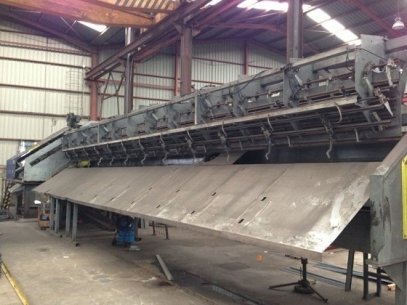

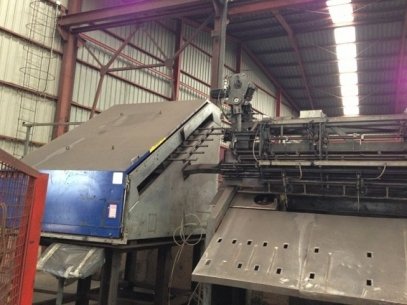

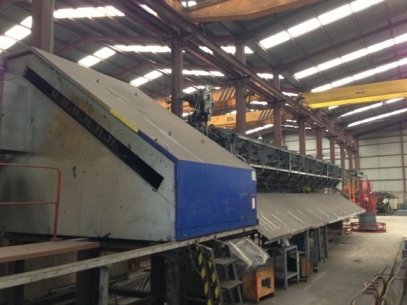

Completely automatic plant, electronically controlled, for the production of medium to large sized stirrups, straightened cut to length bars and bent/shaped bars, with bends on one or both ends, up to a length of 12m. The plant includes a straightening unit, with automatic diameter change and 5 hyperbolic rotors, and two independent mobile bending heads.
traightening machines in any performance class and with any straightening system. Steel from a coil with diameters from 5 to 16 mm can be treated, say straightened and cutted. One to six diameters can, depending on the configuration of the machine, be worked, the change of wire diameter is automatic and the speed adapts automatically to the wire diameter to be processed. Performance data depend on wire diameter and rod lenghts, a maximum wire advance of 120 m/min is possible.
Advantages:
Fully electric machine

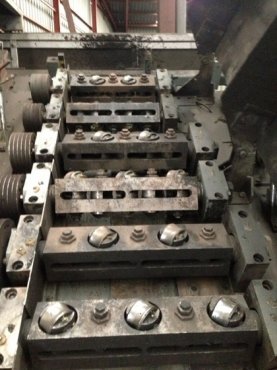

High straightening accuracy by hyperbolic roller straightener units
Also suitable for oval wire and varying wire diameter
Minimum length tolerances
No damage to steel structure because of the used straightening technology
High production speed
The RA-XE is a machine for straightening and cutting of reinforcing steel from coils. Cold deformed and hot rolled ribbed wire can be worked.
A maximum wire advance of 120 m/min is possible. By means of a fully automatic wire diameter change a changeovertime of 2 to 4 seconds is obtained. The speed adapts automatically to the wire diameter to be processed.

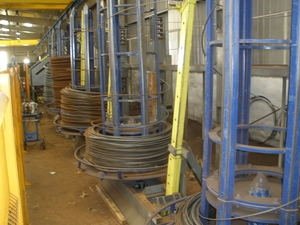

Incluid five basament pay/of and five holder coils
