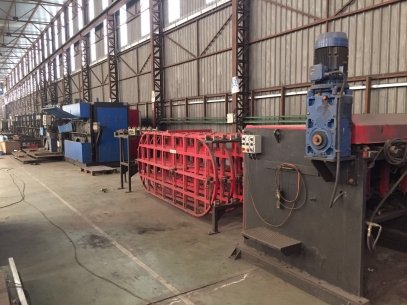

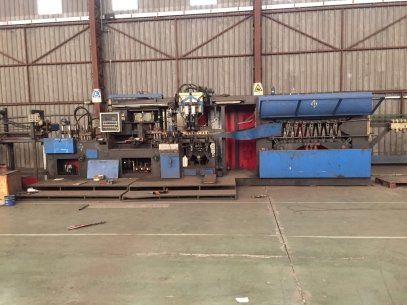

Welding machine for lattice girder MEP BETA SYSTEMS MTM 400
for the production of lattice girder

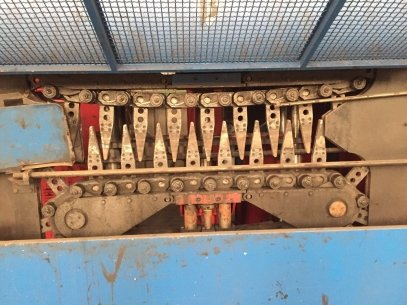

A completely automatic and electronically-programmable plant for the production of standard electrowelded lattice girders, comprising three longitudinal wires united by two continuous diagonal zigzag shapes of variable height (from 80 to 300mm), and of variable wire diameter from coil. Owing to the adoption of innovative solutions: viz. wire drawing and rotor straightening, (for the three longitudinal wires); chain shaper (for the two zigzag diagonal wires); welding unit ( upper section, piston-adjustable height); flying shear unit (minimum girder length 100mm); automatic stacking unit for bundling of the finished product
Specifications:
year of construction 2003,HOURS WORK 9990
- Voltage: 380 (V) – 50 (Hz)
- Output: 883 (KVA)
- Air pressure: 6 (Bar)
- speed 32 m/min
- hight of lattice girder 80 – 300 mm
- length of lattice girder 2000 - 12000
- zig-zag spacing 400 mm
- upper line wire diameter 5.0 – 12.0 mm
- lower line wire diameter 5.0 – 12.0 mm
- zig-zag wire diameter 3.5 – 6.0 mm
