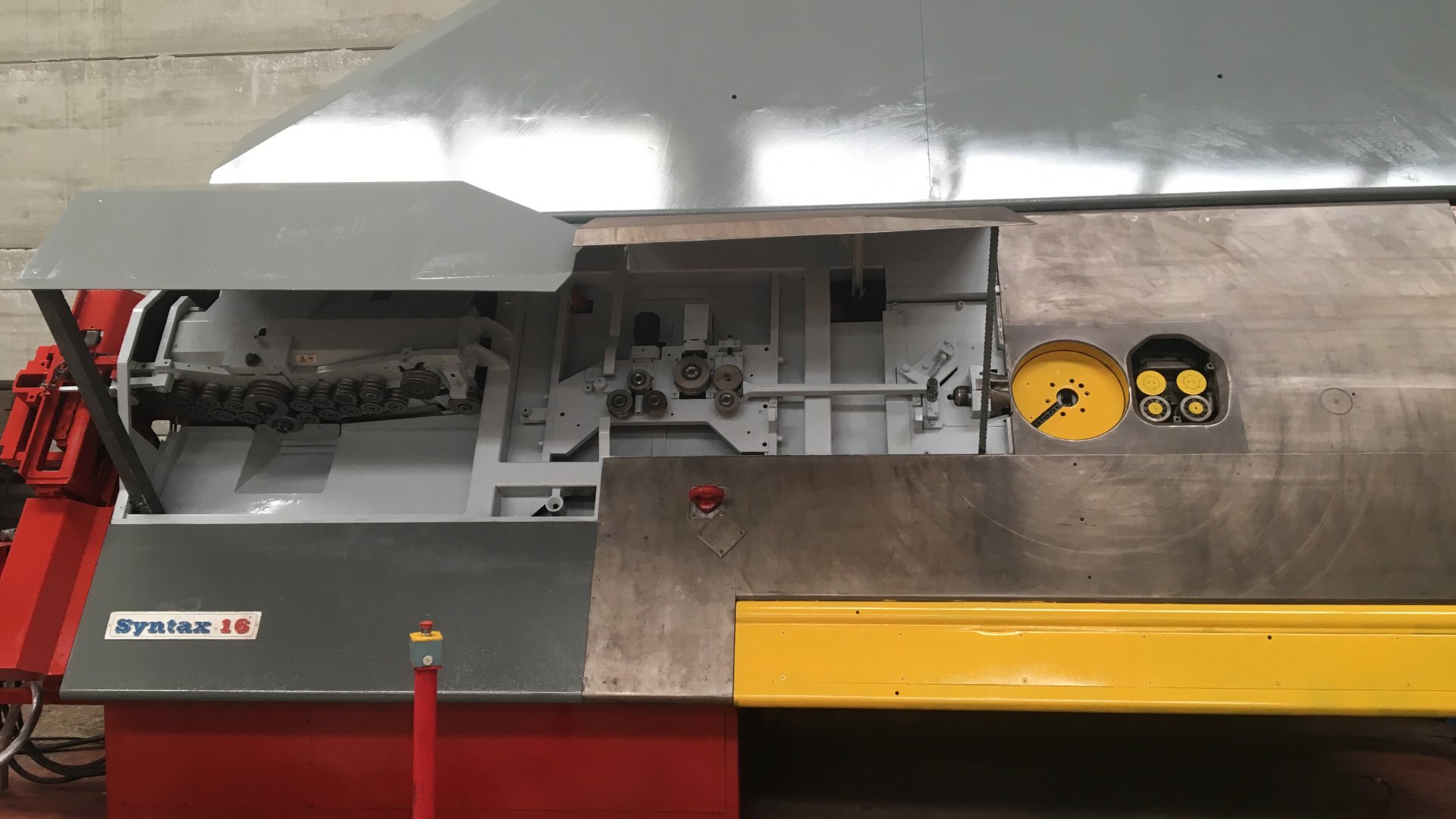

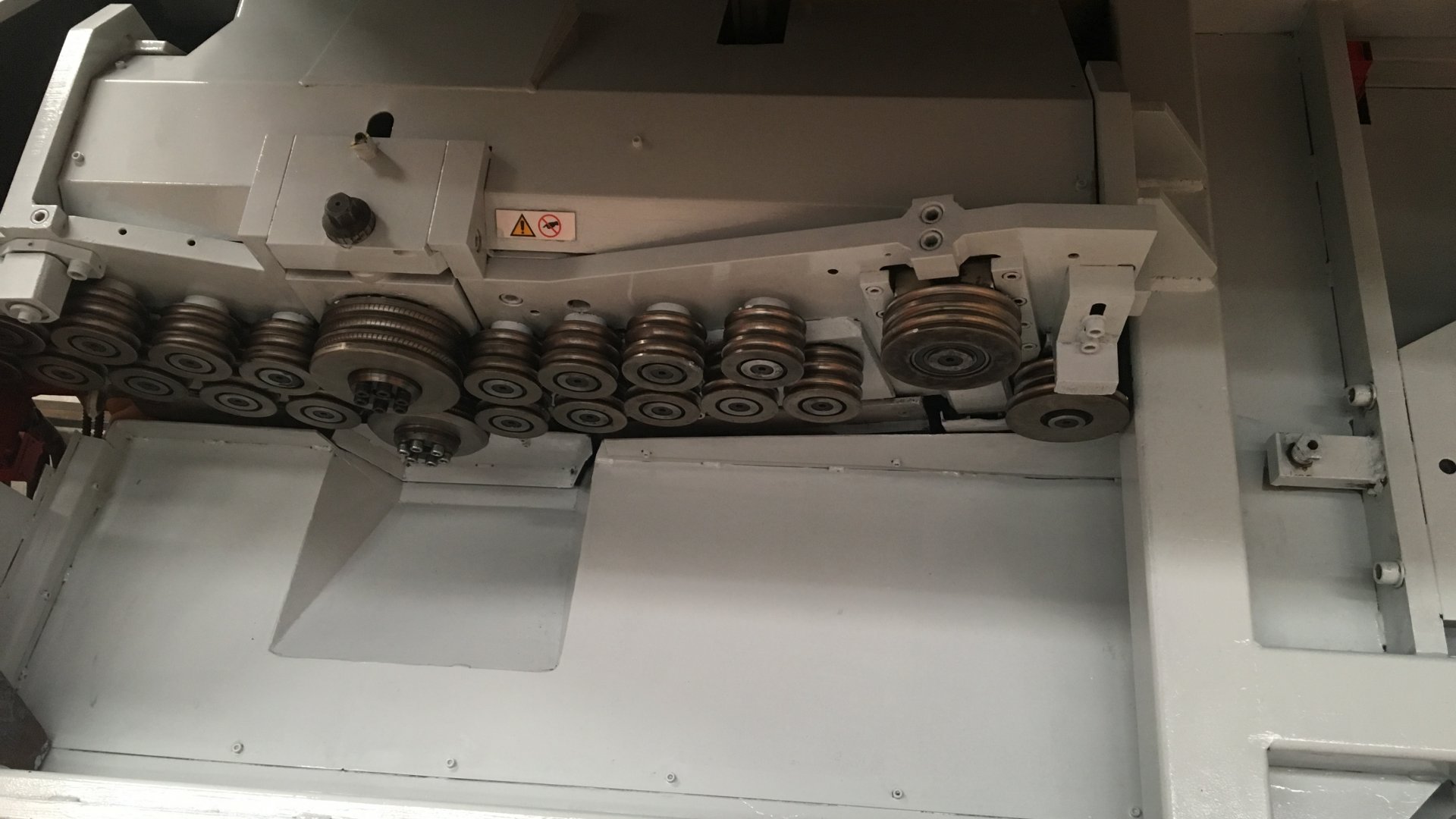

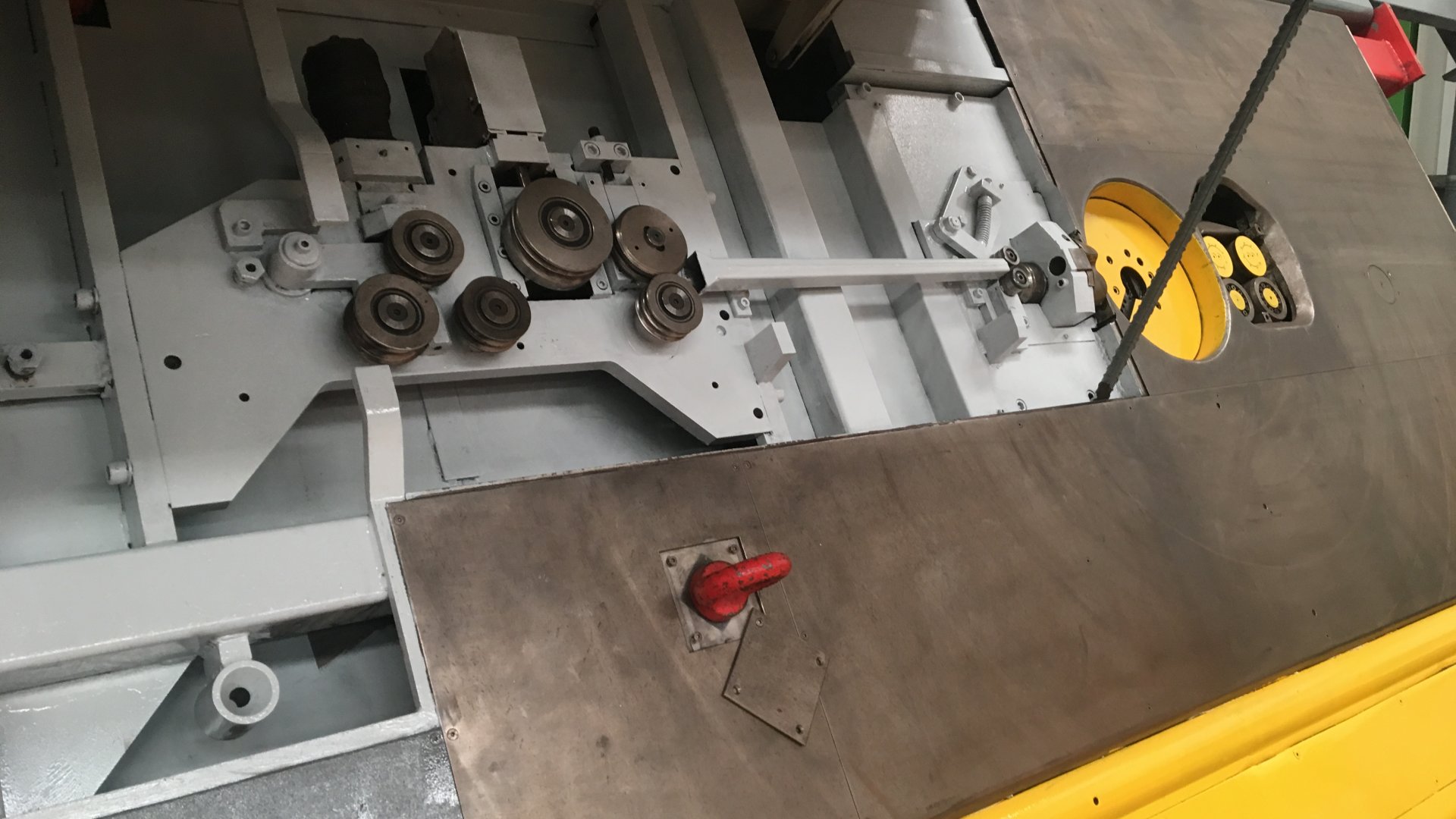

Center automatic production of rebar, bidirectional, with electronic programming for the manufacture of stirrups of small and large dimensions, straightened straight bars to measure and straightened bars, with bent at one or both ends, up to a length of 12 meters. It has a second drag group, guaranteeing a correct displacement and drag of the bars, achieving a perfect bending at both ends. Automatic straightening process, directed from plc computer, according to the diameters to be processed. They are delivered with five basement pay/off, five roll holders, a 12m bar discharge bench and a mobile tray for unloading already processed bars.
Touch Computer, automatic diameter change, Linux operating system
Technical characteristics
Main crawl advance speed 1,5m / s
Secondary feedrate 0.7m / s
Folding speed 1000ยบ / s
Cutting speed 4 / 10s
Electrical implant data
Working voltage 380/440
Frequency 50 / 60hz
Installed power 34kw
Conductor section 25mm
