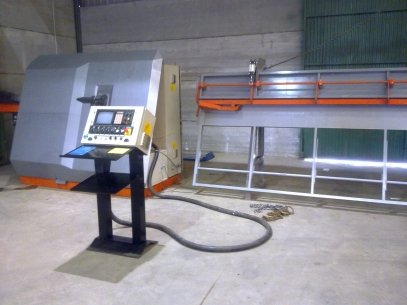

Bidirectional automatic stirrup benders to process hot-rolled or cold-drawn coiled wire. They are operated by electric servomotors and they can produce stirrups and cut-to-size bars from wires of ø 12 mm or double ø 10 mm.
Single strand up to: 6 ÷ 12,7 mm #2 ÷ #4
Double strand up to: 6 ÷ 10 mm #2 ÷ #3
Max.bending angle: 180° 180°
Central mandrels Ø: 20 ÷ 50 mm 3/4" ÷ 1 31/32"
Max pulling speed: 95 m/min 310 ft/min
Max bending speed: 1450°/sec 1450°/sec
Bending distance: 1500 mm 4'-11"
Working pressure: 7 bar 90/100 psi
Two units
Year fabrication 2005 34000€
Includ two basament pay/of ,two holder coils.
Price factory,not includ assembly and trasport
More information www.argemaq.com
