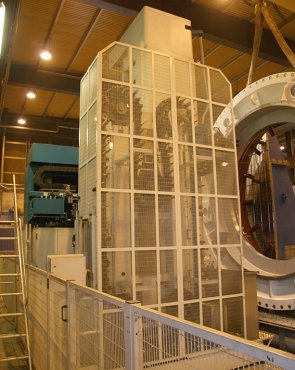

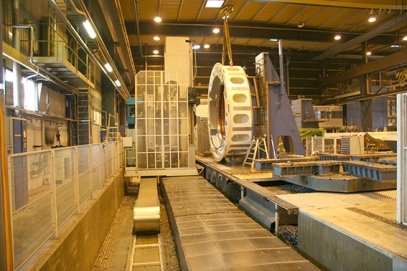

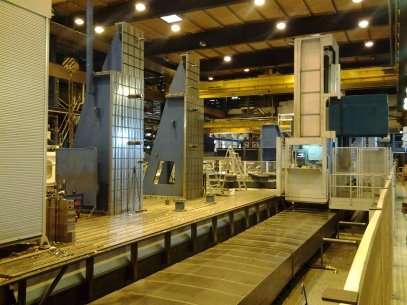

CNC Floor-Type Boring Machine PAMA Speedram 2000. Control HEIDENHEIN TNC 530 7 axis, PAMA TH 65 Rotary-Table, Right Angle Head TS 50-144, Universal Head TW 2-30 AC/2, Pickupstation for head. Renishaw RMP 60 Measuring Probe. ATC 120. New 2010.

X-Column Travel on Bed 20.000 mm
Y-Headstock Vertical Travel 5.000 mm
Z-Spndle travel 1.200 mm
W-Ram Travel
1.000 mm

Z+W 2.200 mm
Boring Spindle diam,
160 mm/ ISO 50
Spindle Rotation speeds i 3 steeps 3.500 rpm
Spindle motor Power / Torue 60 Kw/ 2.821 Nm
Ram dimenssions 400 x 440 mm
Work Feeds in X / Y/ Z / W axis 0,5-8.000 mm/min
Rapid Feeds in X / Z / W axis 20.000 mm/min
Rapid Feeds in Y axis 15.000 mm/ min
Rotary Table Size 4.000 x 4.000 mm
B-Table rotation 360.000°
Table load 65 Tons
V-Axis longitudinal stroke 1.500 mm
Accesories:
Automatic right angle head TS 50-144
Spindle diam 128,57 mm/ ISO 50
Max spindle rotation speed 1.800 rpm
Max spindle power 50 kW at 120 rpm
Universal Milling Head with 2 Controlled axis TW 2-30 AC/2
Axis of ratation around spindle axis C axis
Tilting angle A axis
Tool change and loading on the machine automatic
Max Spindle rotation speed 3.000 rpm

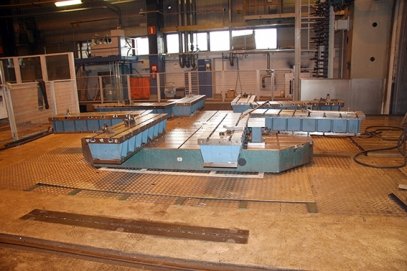

Floor plates
Size 15.000 x 4.000 mm
Load 15.000 kg/m²
External coolant 50l/min-0,75 MPa
Internal coolant 30 l/min 4,5 MPa
Electric workpiece measuring probe renishaw RMP 60
3 pcs Angle plates
8 pcs Table outriggers 2 m long
Chips Transporter


Tech specs for the Automatic right angle head TS 50-144

Tech specs for the Universal Milling Head with 2 Controlled axis TW 2-30 AC/2
