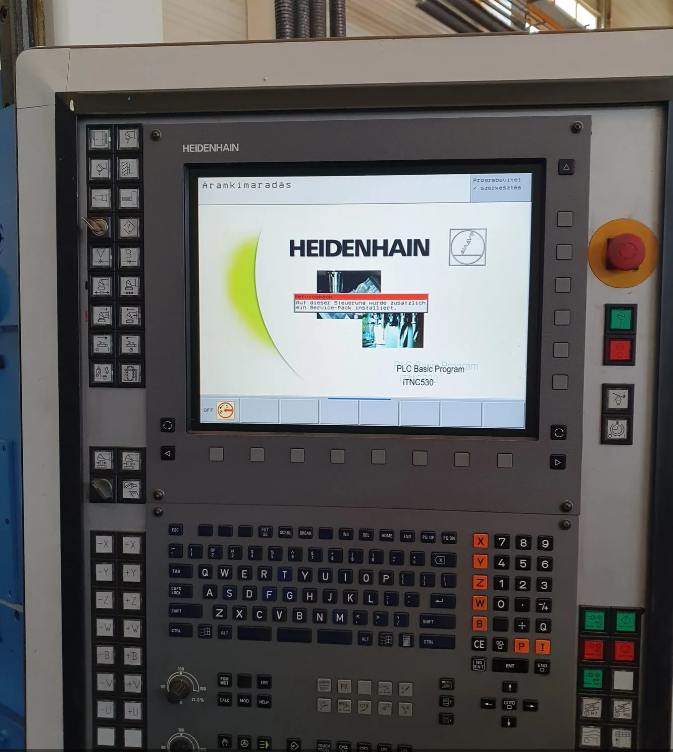

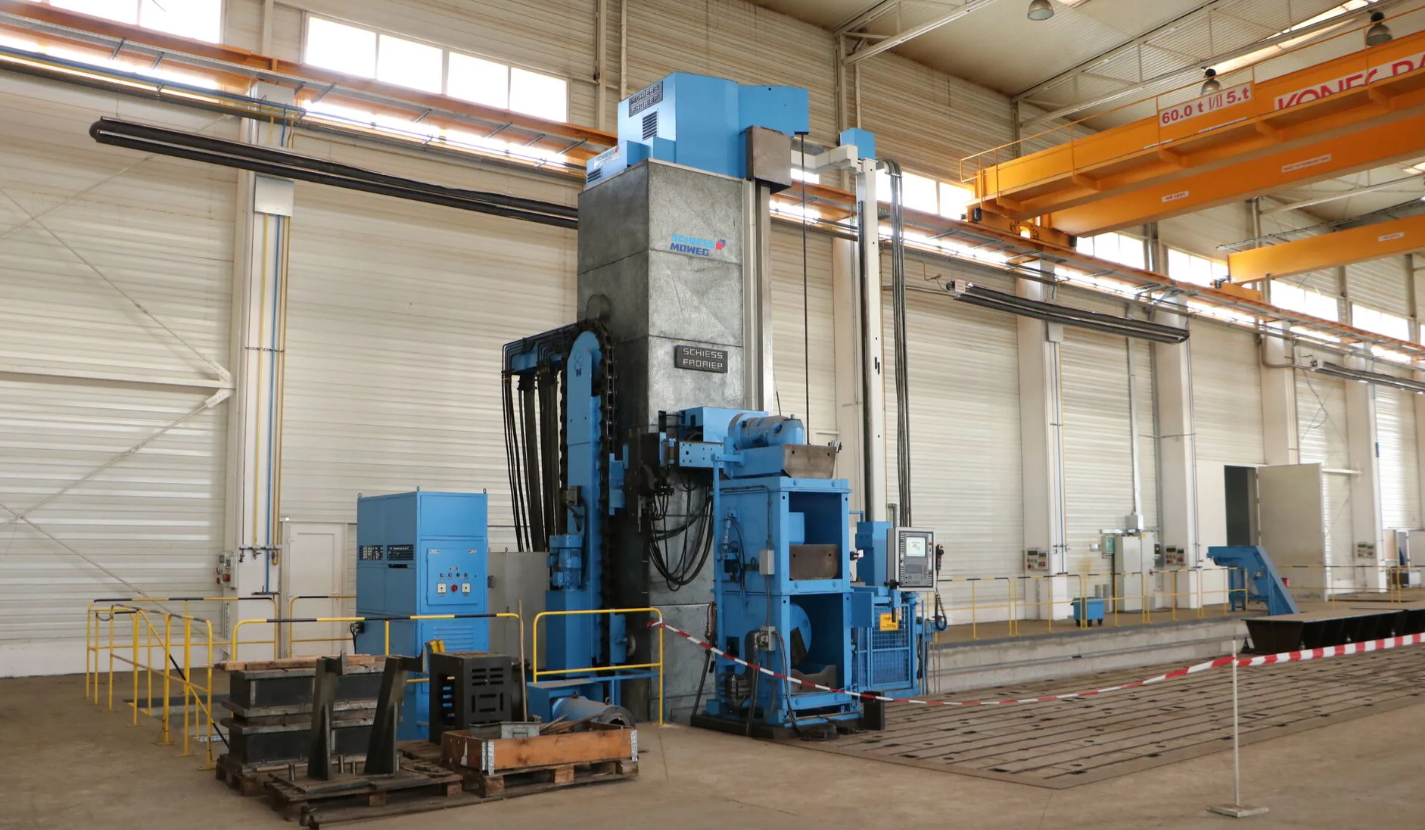

SCHIESS FRORIEP - 1FB180 CNC Horizontal borer 18500 x 4500 x 950 x 900 mm iTNC530 6675 = Mach4metal
Hydrostatic guideways
Hydrostatic spindle bearing

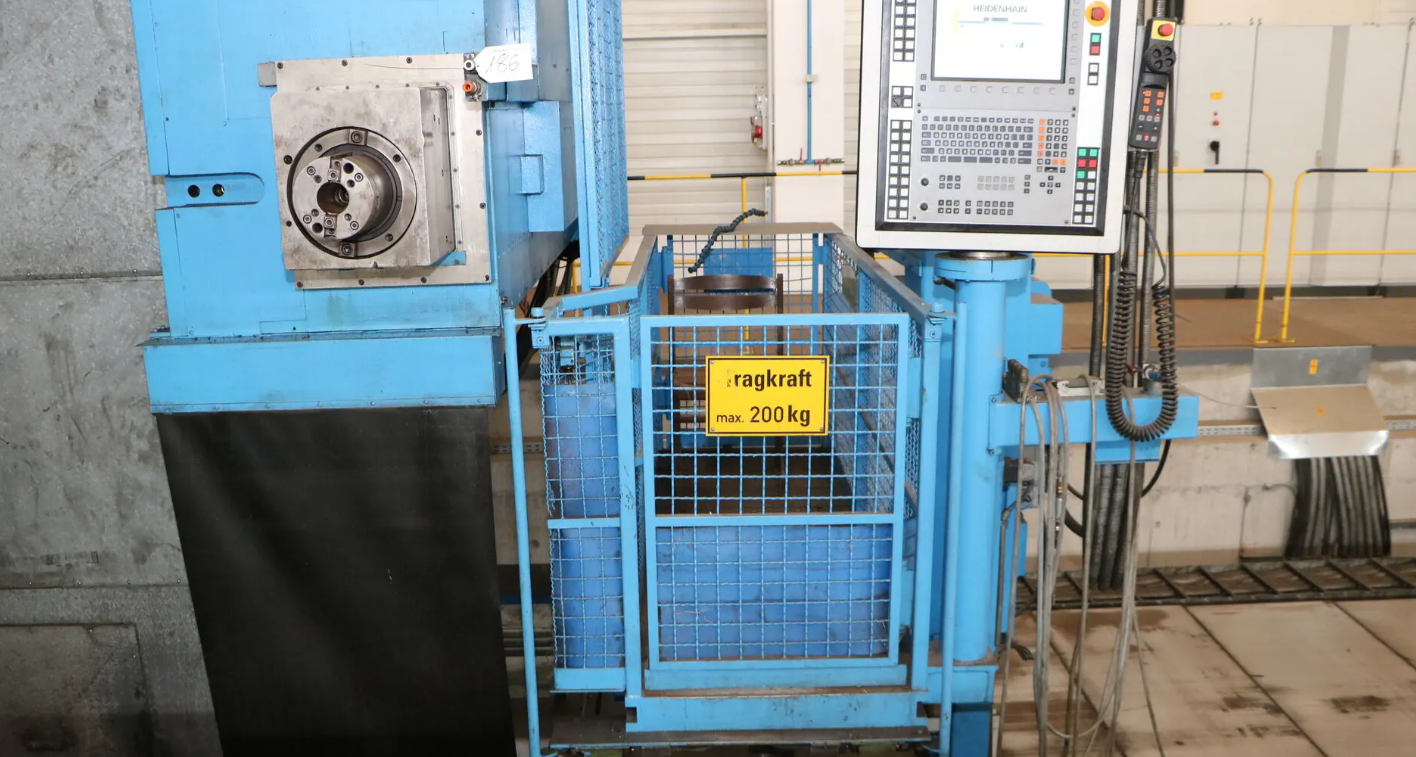

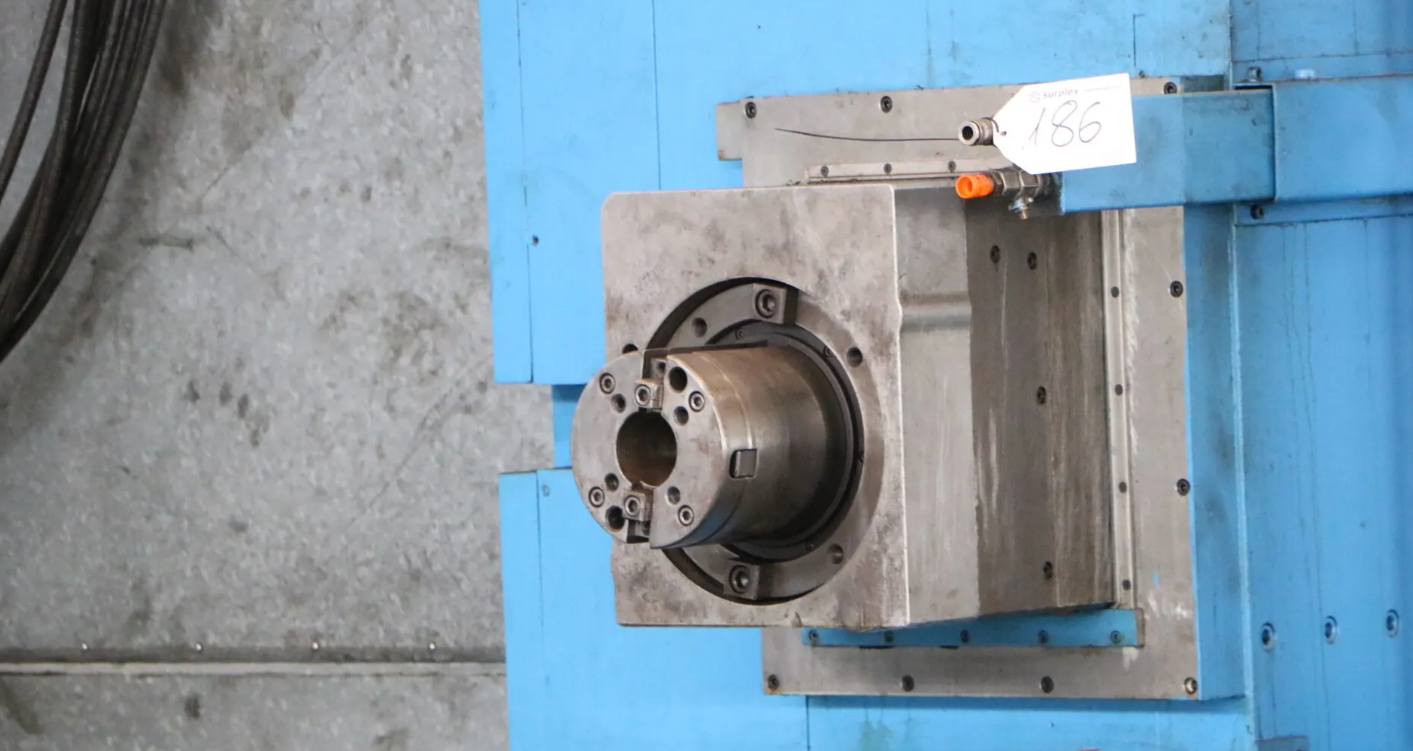

Pick place head change station
1 = Facing head with U-Axis
2 = Universal milling head
3 = Boring Spindel support
4 = Vertical milling head
X – Travel: 18.500mm
Y – Travel: 4.500mm
Z – Travel: 950mm
W – Travel: 900mm

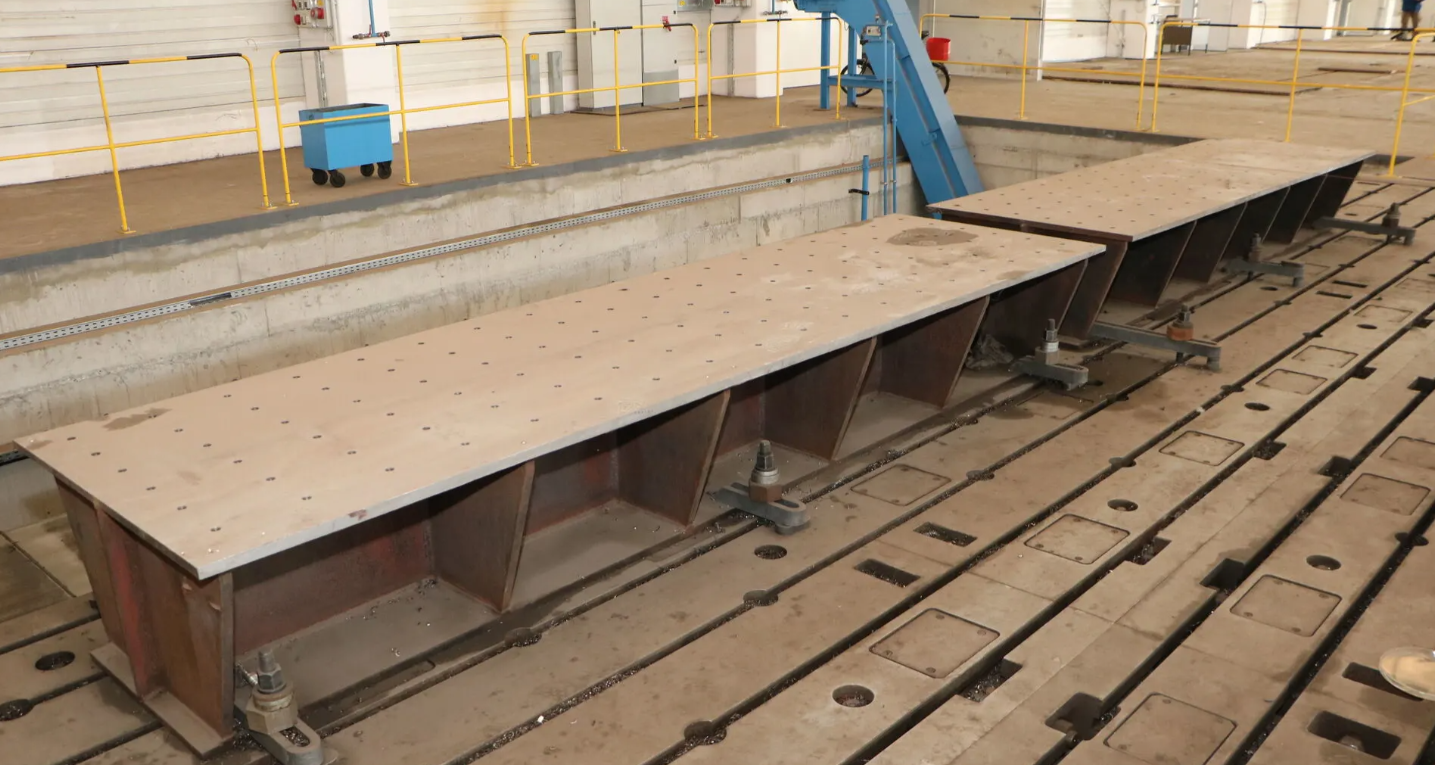

Table Length: 20.000mm
Table Width: 4.200mm
Table load: 15000 / Mtr Kg
Speeds / ranges: 1000Rpm
Power: 85kW
Ram size: 400 x 340 mm
Spindle Taper: Iso 60/50 ISO/Bt/Mk
Feed rate X-Axis: 5.600mm/min.
Feed rate Y-Axis: 5.600mm/min.
Feed rate Z-Axis: 5.600mm/min.
Feed rate W-Axis: 5.600mm/min.
ATC Toolchanger: 60
Number of controlled axis:4
Length: 26.000 mm
Width: 12.000 mm
Height: 7.000 mm
Weight: 110000 + 65000 kg
