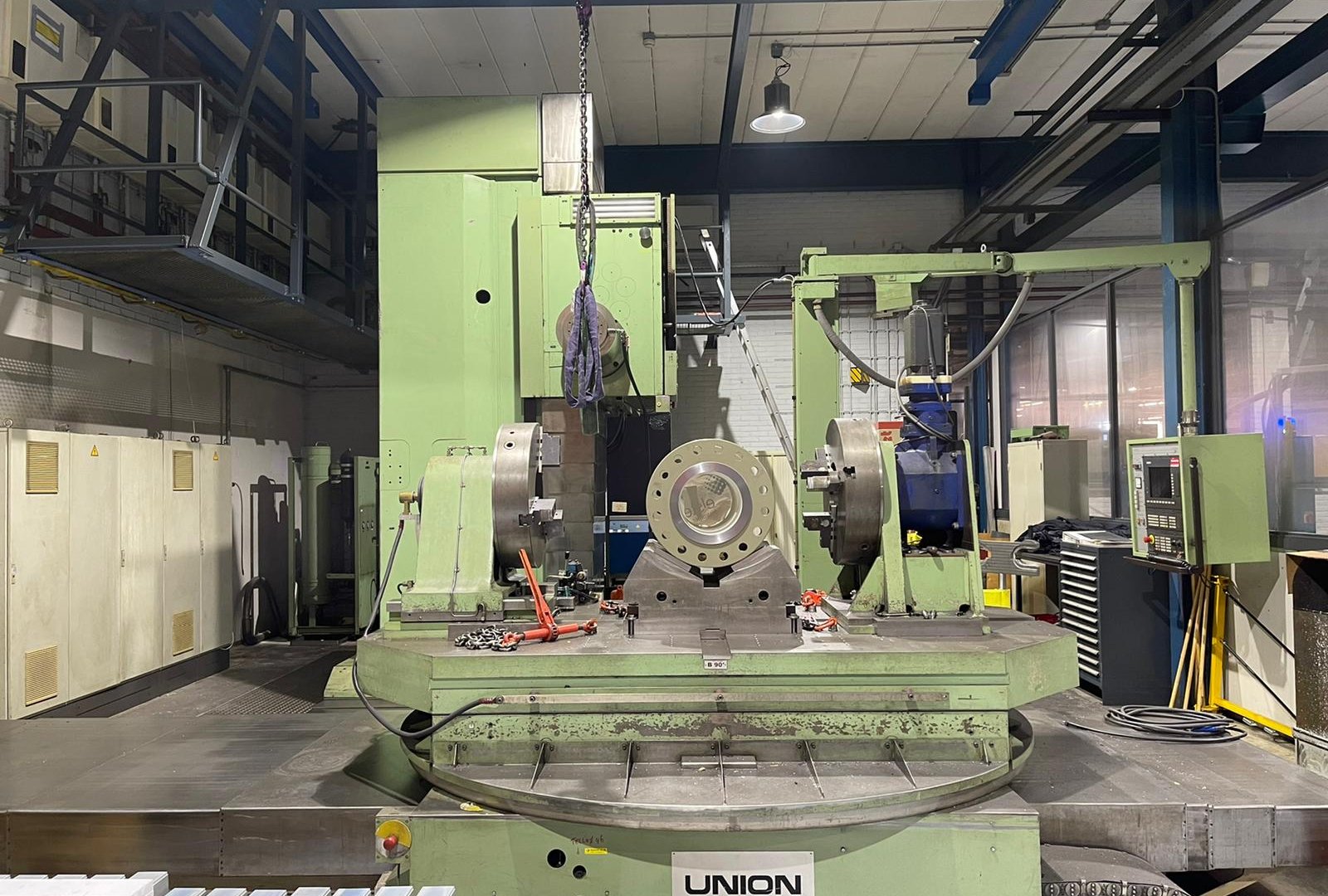

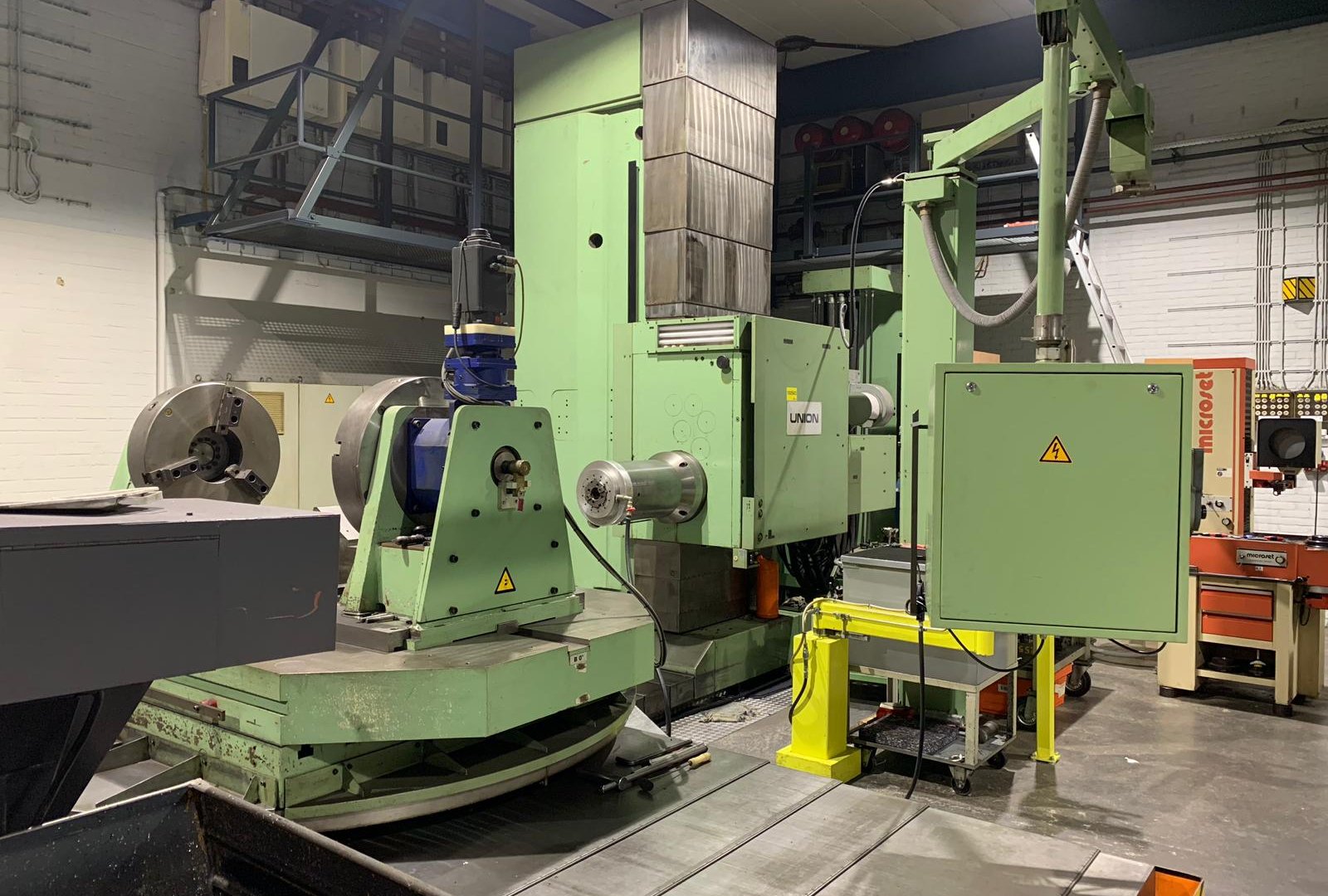

UNION - CBFK 150 CNC horizontal borer Ø 150 mm 2500 x 1600 x 1600 x 850 mm 6556 = Mach4metal
X – Travel: 2.500mm
Y – Travel: 1.600mm
Z – Travel: 1.600mm
W – Travel: 850mm
Table Length: 2.000mm
Table Width: 1.600mm
Table load: 12.500Kg
Speeds / ranges: 1120Rpm
Power: 45kW
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 8.000mm/min.
Feed rate Y-Axis: 8.000mm/min.
Feed rate Z-Axis: 8.000mm/min.
Feed rate W-Axis: 8.000mm/min.
Number of controlled axis:5
Length: 6.750 mm
Width: 6.750 mm
Height: 4.450 mm
Weight: 34.000 kg

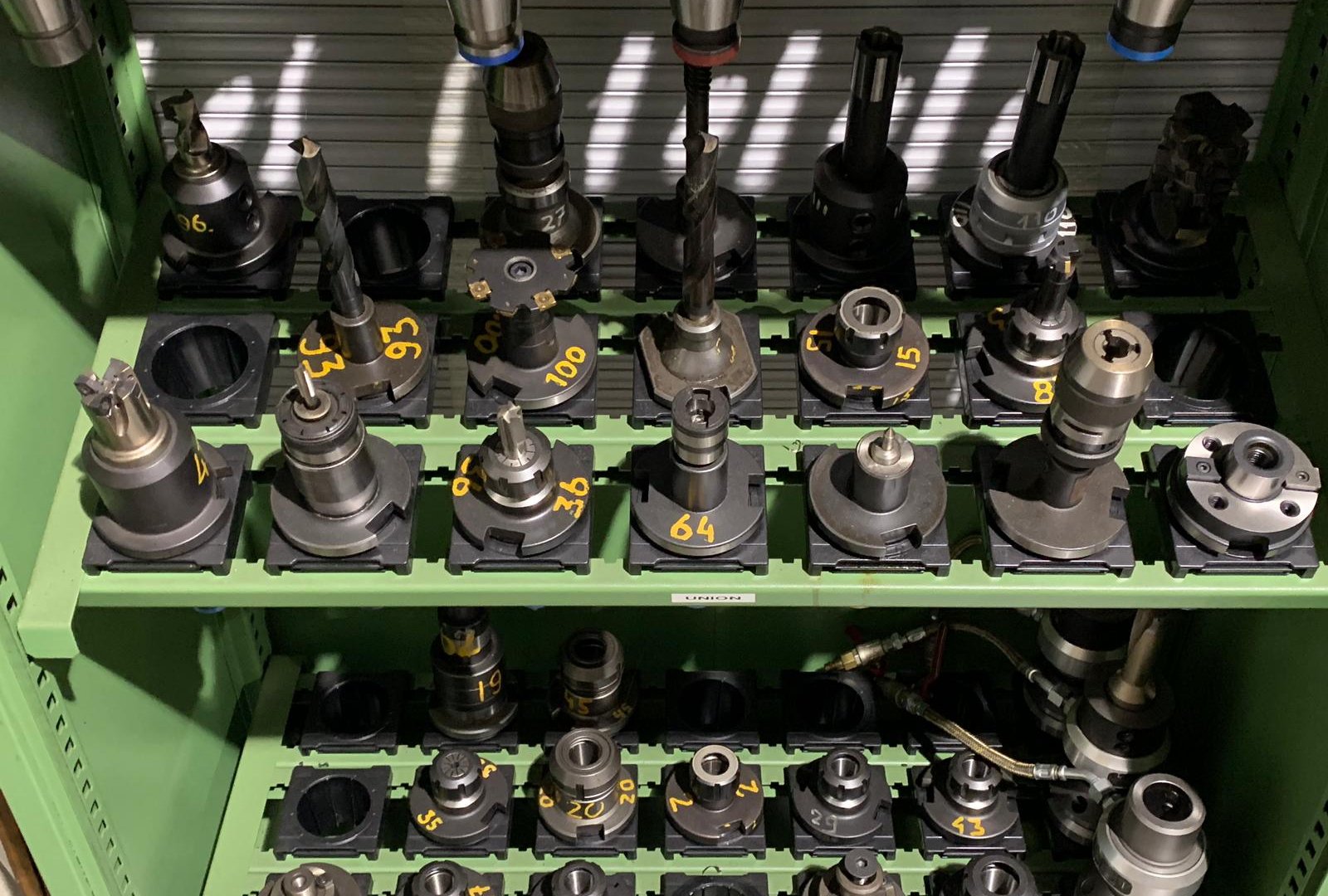

Large tool holder package ISO 50
Large face tooling package ISO 50

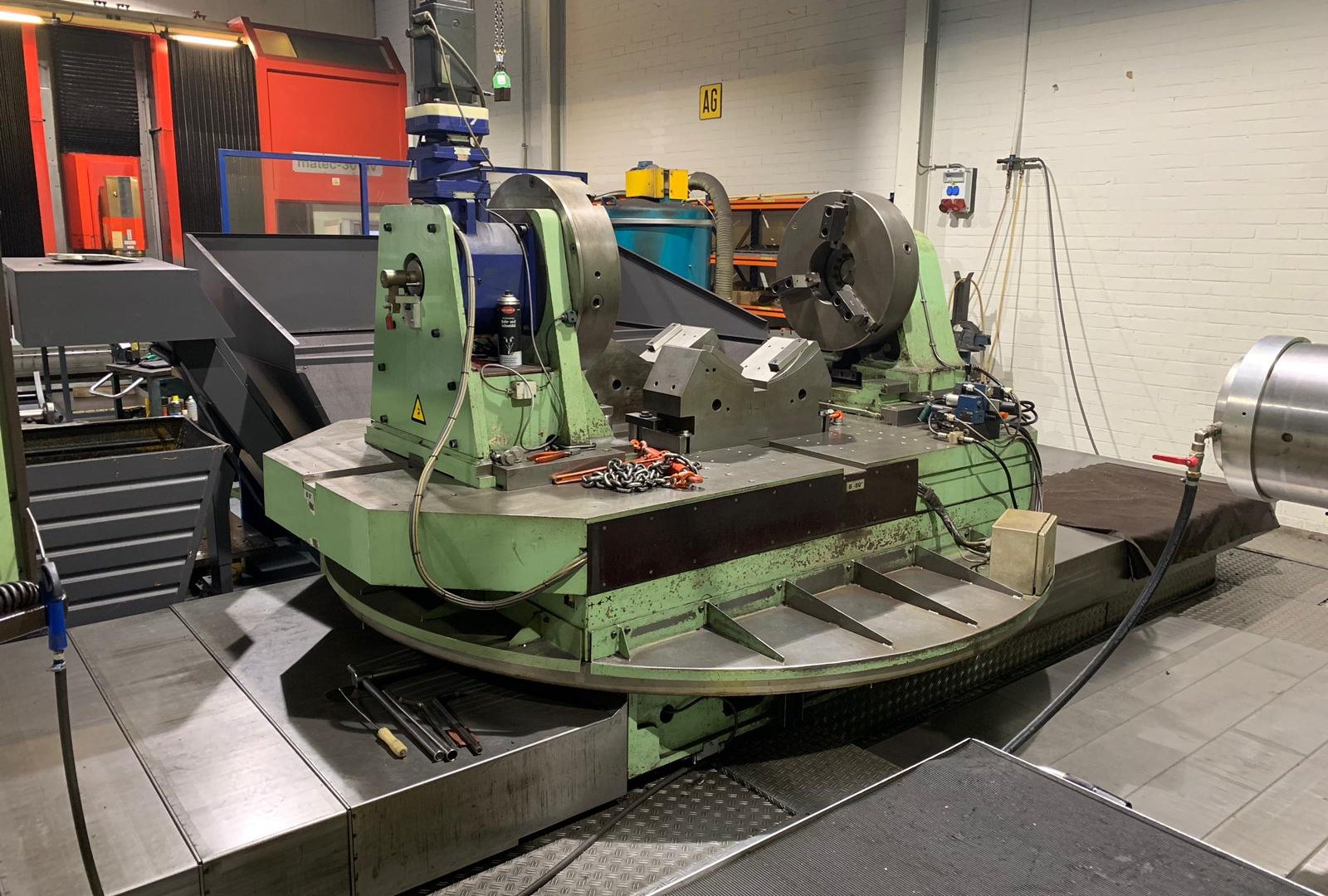

Double indexing 4e axis swivel over CNC

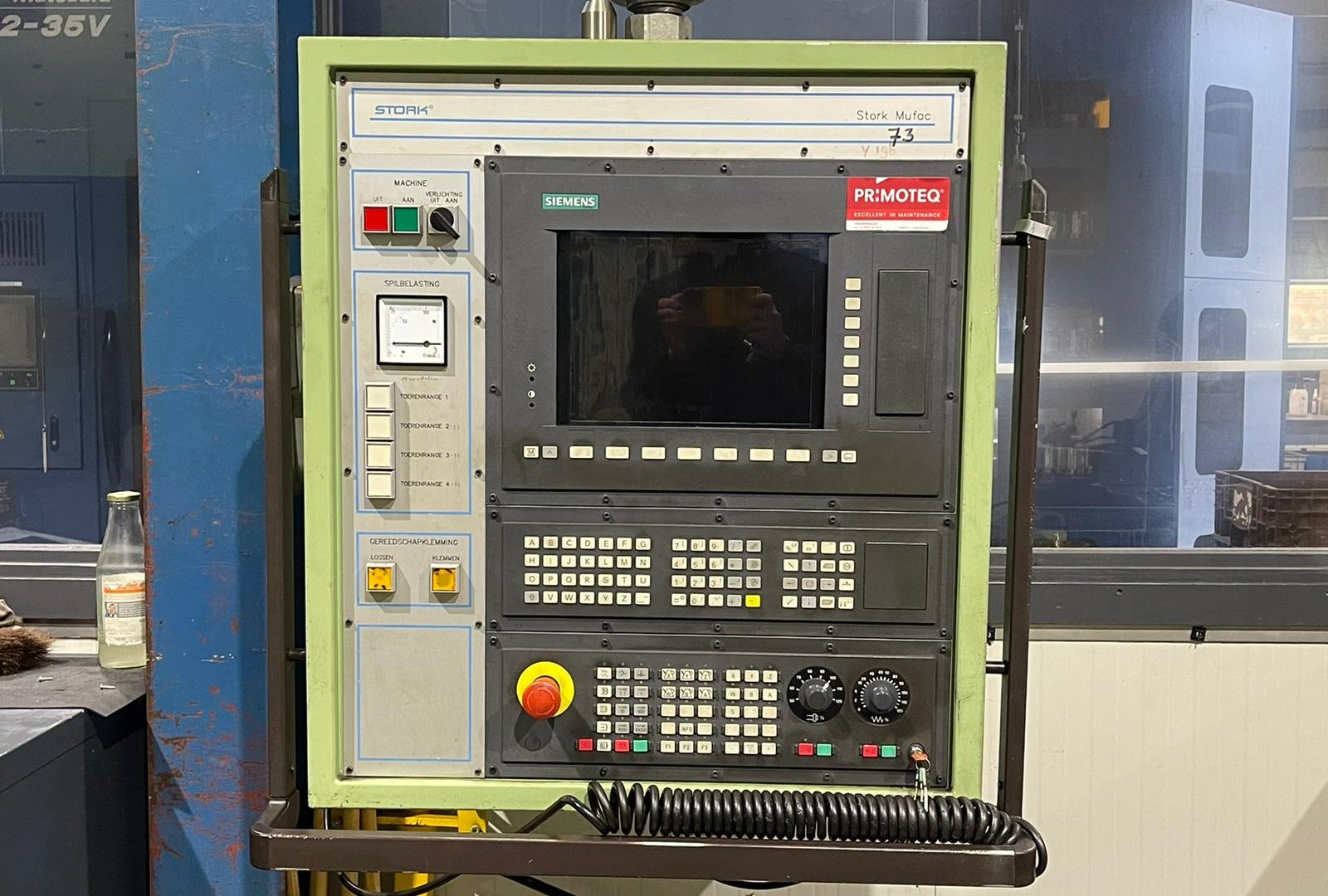

Retrofitted in 1995 by STORK PRIMOTEQ
Original YOP 1985
