Controll HeidenHain TNC 415

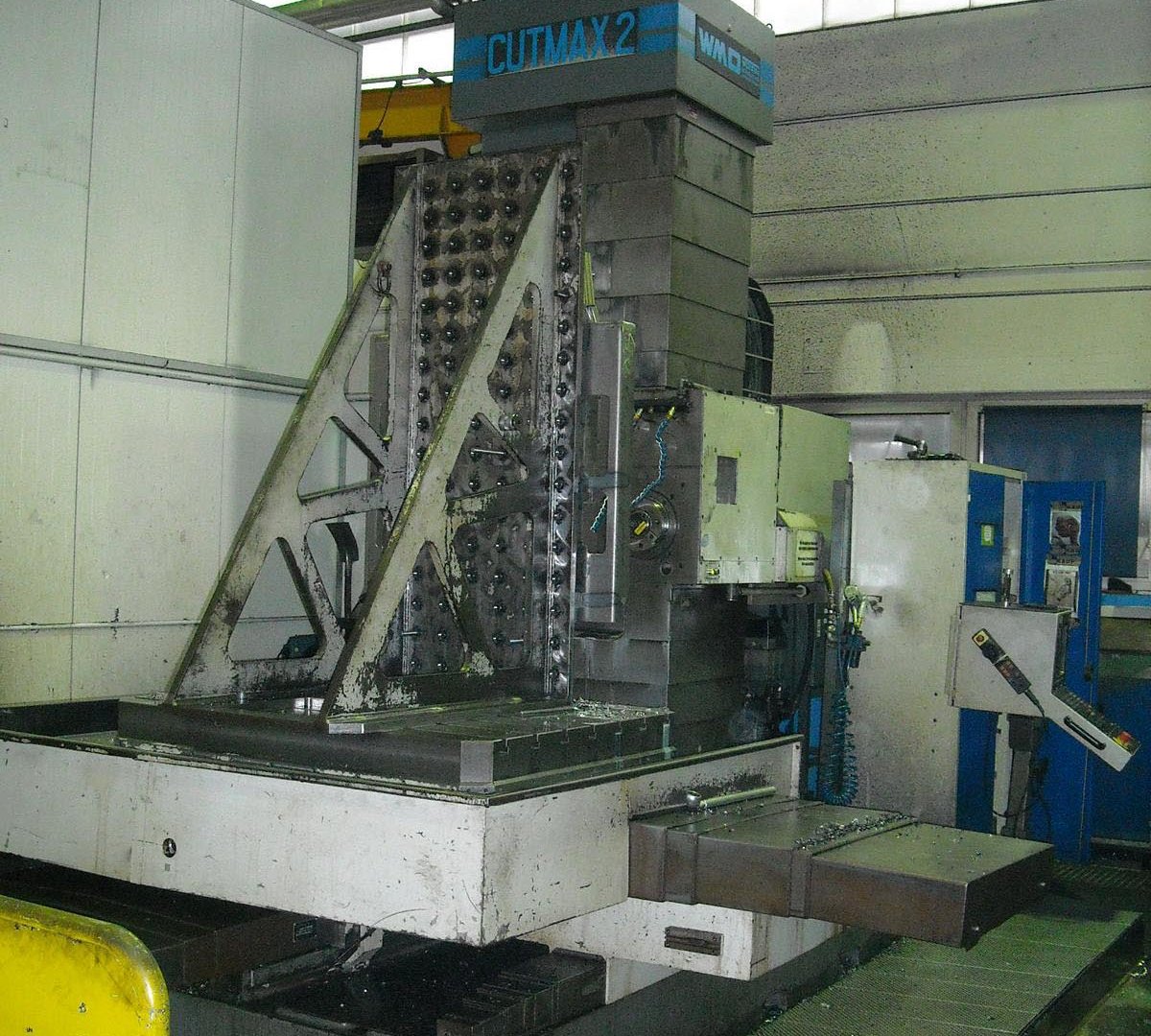

Table type borer
X – Travel 1800 mm
Y – Travel 1700 mm
Z – Travel 600 mm
W – Travel 1500 mm
Spindle Diameter Ø 130 mm
Spindle Taper ISO 50
kW power on spindle 30 kW
Spindle speeds / ranges 0 - 3000 Rpm
Table Length x Width 1400 x 1120 mm
Table load in 6000 Kg
Number off controlled axis 5
Specifications:
Controll HeidenHain TNC 415
Table type borer
X – Travel 1800 mm
Y – Travel 1700 mm
Z – Travel 600 mm
W – Travel 1500 mm
Spindle Diameter Ø 130 mm
Spindle Taper ISO 50
kW power on spindle 30 kW
Spindle speeds / ranges 0 - 3000 Rpm
Table Length x Width 1400 x 1120 mm
Table load in 6000 Kg
Number off controlled axis 5
