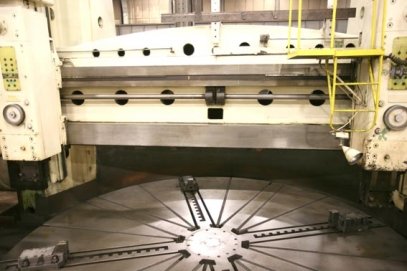

Table Diameter 4,750 mm
Table Weight Capacity 45 Tons
Table Motor, GE Variable Speed Drive 80 kW
Table Speeds (Inf. Variable) 0.33 - 32.8 RPM
Max Turning Diameter-Rams 5.180 mm
Distance between the columns 5.200 mm
Max Height Under Cross Rail 3,260 mm
Max height under tool 3,050 mm
Left Ram Vertical Travel 1,400 mm
Left Ram Horizontal Travel 2,960 mm
Right Ram Vertical Travel 1,400 mm
Right Ram Horizontal Travel 2,960 mm
Vertical Ram Swivel +/- 30 to 45 Degrees
Feeds (15) 0.005 - 11 mm/rev
Dimensions
Front to back 8,370 mm
Left to right 12,600 mm
Height 9,890 mm
Machine Weight 134 Tons
Equipped with
Two Swivelling Ram Heads
Side Head
2-Axis Newall DP7 Digital Readout System
