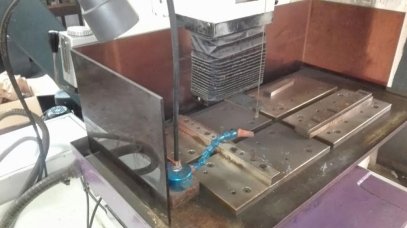

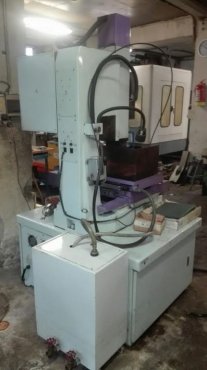

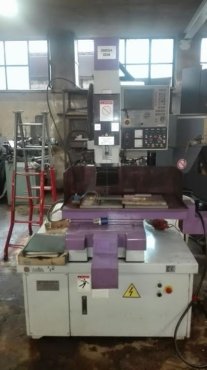

The cnc drilling machine has a work table stroke of 300x200, the maximum weight of 150 kg is to be machined, the spindle rotation speed is 200 rmp. The diameter of the electric tube ranges from 0.3 to 3 mm, the electrode length is 400 mm, the distance of the guide is at the table ceramic of 50-150 mm.
The dielectric capacity is 20 liters, the maximum power is 4.5 kva, pulse generator, power mosfets, maximum machining current 25 amps.
Specifications:
Technical specifications
Brand And Model BORING CM 500 CM 800 CM 1000
number Giri RPM 200
X-axis stroke 300
Z-axis stroke SERVO RAM MM 350
Other… ELECTRODE LENGTH 400 mm-diameter electrodes from 0.3 to 3 mm
