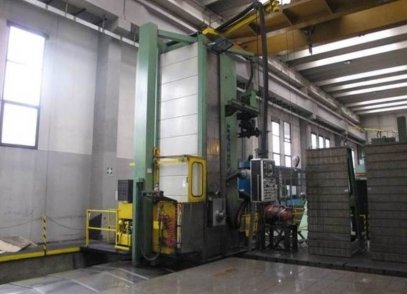

USED TRAVELLING COLUMN MILLING/BORING MACHINE WITH ROTARY AND SHIFTING TABLE and AUTOMATIC A/B-AXIS HEAD
Specifications:
YEAR: 1989
LONGITUDINAL TRAVEL: 15500 mm
TRANSVERSAL TRAVEL: 1000 mm
VERTICAL TRAVEL: 3500 mm
QUILL TRAVEL: 800 mm
QUILL DIAMETER: 160 mm

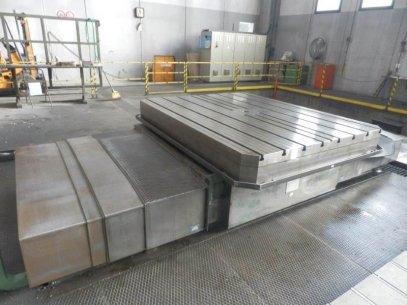

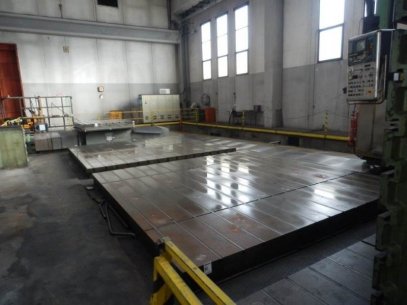

TABLE SIZE: 2500x2000 mm
TRANSVERSAL TRAVEL OF THE TABLE: 2000 mm
MAX ADMITTED LOAD: 30000 Kg
SPINDLE: 1500 rpm; 55 Kw

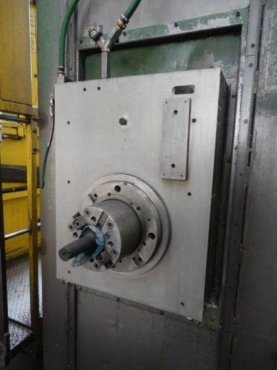

HEAD: AUTOMATIC A/B-AXIS ; ISO 50; 1500 rpm

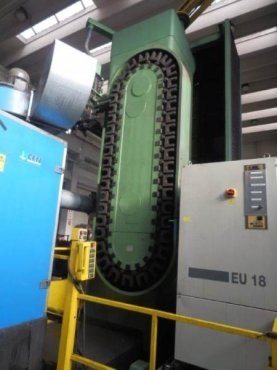

TOOL MAGAZINE: /40 POS

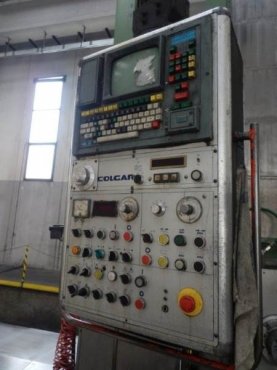

CONTROL UNIT: ECS 2301
ACCESSORIES: SWARF CONVEYOR
