ŠKODA MACHINE TOOL a.s. continues its more than 100 years old tradition of high-precision machine tool manufacturing.

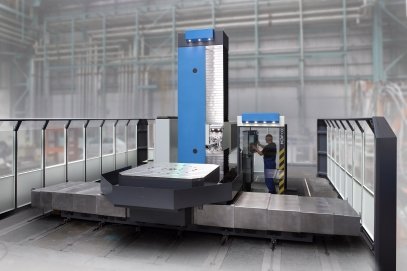

Based on market situational analysis, the company has decided to expand the present product scopeby the table type milling and boring machine ŠKODA HCW 1000 with spindle dia. 130 mm.
Specifications:
HCW 1000 CNC Siemens Sinumerik 840 D technical data:
X axe travel 4 000 mm
Y axe spindle headstock traverse 2 500 mm
Z axe ram travel 2 000 mm
W axe spindle travel 1 000 mm
Traversing speed X, Y, Z 15 000 mm/min
Traversing speed W 10 000 mm/min
Traversing forces in all axes 30 000 N
Spindle diameter 130 mm
Main motor power rating 37 kW
Rotary table TDV 25
Chips conveyor
