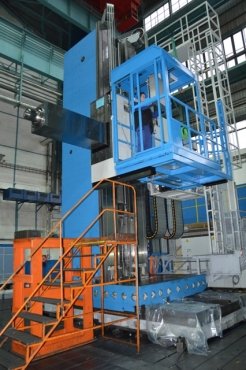

The HCW-series machines are the most advanced and sophisticated horizontal boring machines within the ŠKODA range of that type of product. These machines are used to full satisfaction of the customers in modern factories where the state-of-the-art technology and high labour productivity are of prime importance. With their operational range, high power and machining precision the HCW machines are the best solution for high-precision milling, drilling and boring of large and heavy workpieces. These machines can be used within single-purpose work stations for efficient machining of generator rotor shafts, heavy crankshafts and other large components of complex shape.
Specifications:
SPECIFICATION
HCW 3
X axe travel 6 000 mm
Y axe spindle headstock traverse 3 800
Z axe ram travel 1 600
W axe spindle travel 1 400
Z + W traverse 3 000
Spindle diameter 250 mm
Main motor power rating 100 kW
Spindle speed 1 – 2 000 1/min
Milling head IFVW 203S
Boring head IWD 700 A
Rotary table TDV 70
