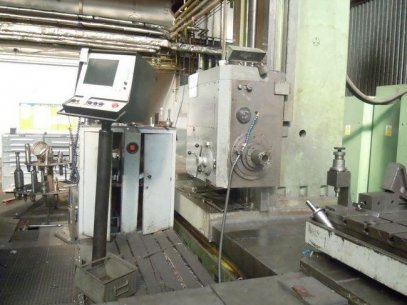

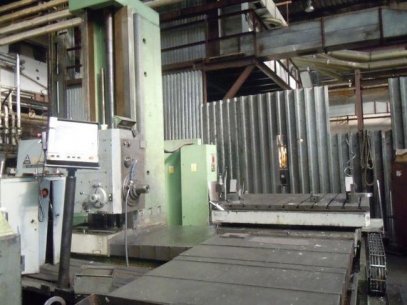

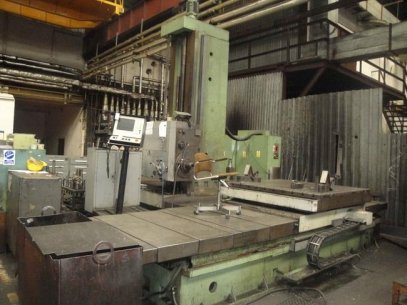

Boring horizontal table TOS WHN 13.4 CNC TOS Varnsdorf WHN 13.4 CNC
Machine is under power. System Mefi CNC in year 2000, circular interpolation.
Specifications:
Diameter of working spindle ... 130 mm
Travel X-axis ... 2000 mm
Cross adjustment of table (X) ... 2000 mm
Motion of work head on frame (Y) ... 2000 mm
Longitudinal adjustment of pedestal (Z) ... 1250 mm
Slip out of working spindle (W) ... 800 mm

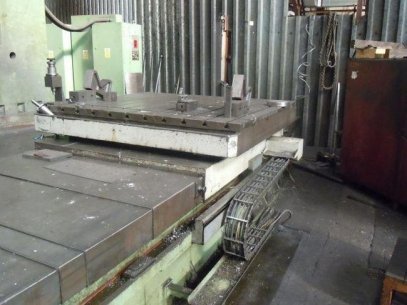

Clamping area of table ... 1800x1600 mm
Max. weight of workpiece ... 12000 kg
Spindle nose ... ISO 50 -
Main motor output ... 37 kW
Dimensions l x w x h ... 7200x7800x4900 mm
Machine weight ... 36000 kg
