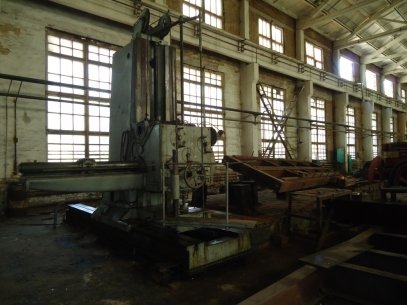

Horizontal borring machine BFP160
1955 year of manufacturing
made by WMW Union, Germany
Specifications:
Horizontal borring machine BFP160
Specification:
spindle diameter 160 mm
x-travel 3000 mm
y-travel 1900 mm
z-travel 500 mm
w-axis (spindle longitudinal) 1400 mm

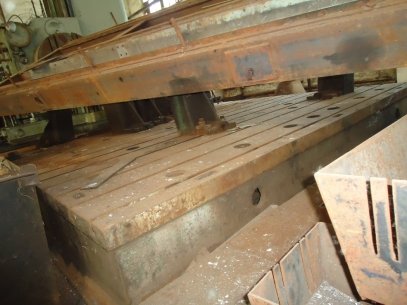

table surface l x w 1600 x 1800 mm
turning speed range 1,5 - 270 rpm
feed range 0,005 - 48 mm/min
weight approx. 44000 kg
dimension of the machine l/w/h 7 x 8 x 5 m
Very nice condition, like new machine, guides like mirror.

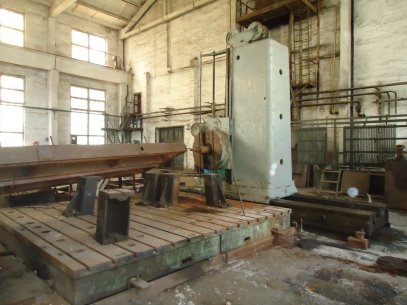

There are rear column and table, but rotary table is absent.
