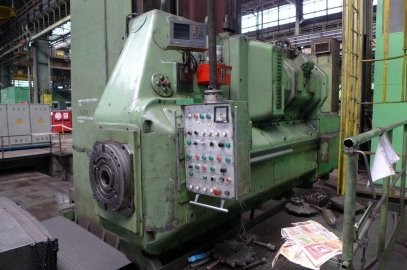

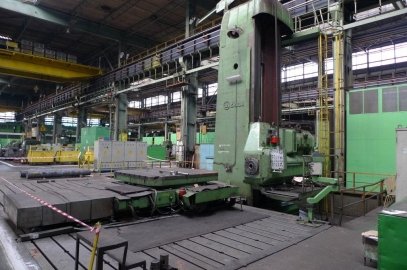

Main technical data is:
- spindle diameter 200 mm
- spindel taper : ISO 60
- X travel: 8000mm
- Y travel: 4150mm
- W travel (ram stroke): 1600mm
- Z travel: 2000mm
- dimension of the ram 520 x 520 mm
- spindle turning speed range 2 - 800 U/min
- main motor power 75.6 KW
- total installed power 150KW
- weight of the machine ca. 125 t
The machine is delivered with:

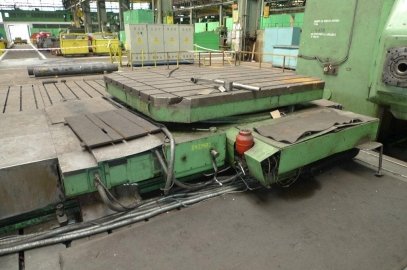

- Rotary table 2500x2240mm with longitudinal travel 1500mm
- Digital readout model Heidenhein both for machine and rotary table (3 + 2 axis)
- Angular milling head
- Face plate
- Counter column (Tailstock)
The machine is now dismantled and stored in our warehouse.
More details on request.
