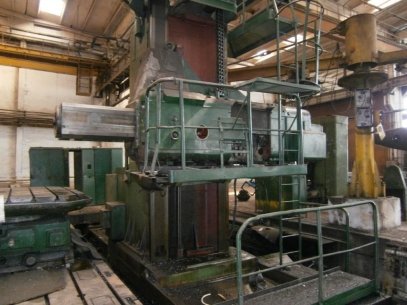

HORIZONTAL BORING MILL SKODA WD160.

TECHNICAL DATA:

MAIN SPINDLE DIA.: 160 MM

SPINDLE TAPER 100 METR.

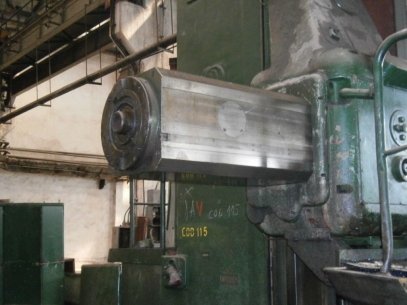

RAM SIZE: 450MM x 450MM

MAXIMUM TORQUE CROSS AXLE SPINDLE 160000 KPCM

BED HEIGHT 480 MM

X AXIS TRAVEL IS AB. : 3800 MM

Y AXIS TRAVEL IS AB.: 2500 MM

Z AXIS TRAVEL IS AB.: 1600 MM

WEIGHT OF MACHINE WITHOUT FLOOR PLATE: AB. 50000KG

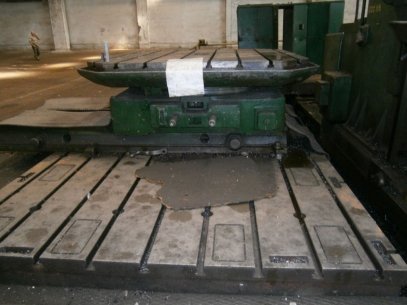

THE MACHINE HAS ONE ROTARY TABLE 1970X2000MM AND ONE FLOOR PLATE 2700X5000MM.

MORE INFORMATION IS AVAILABLE BY EMAIL.

-
