Description:

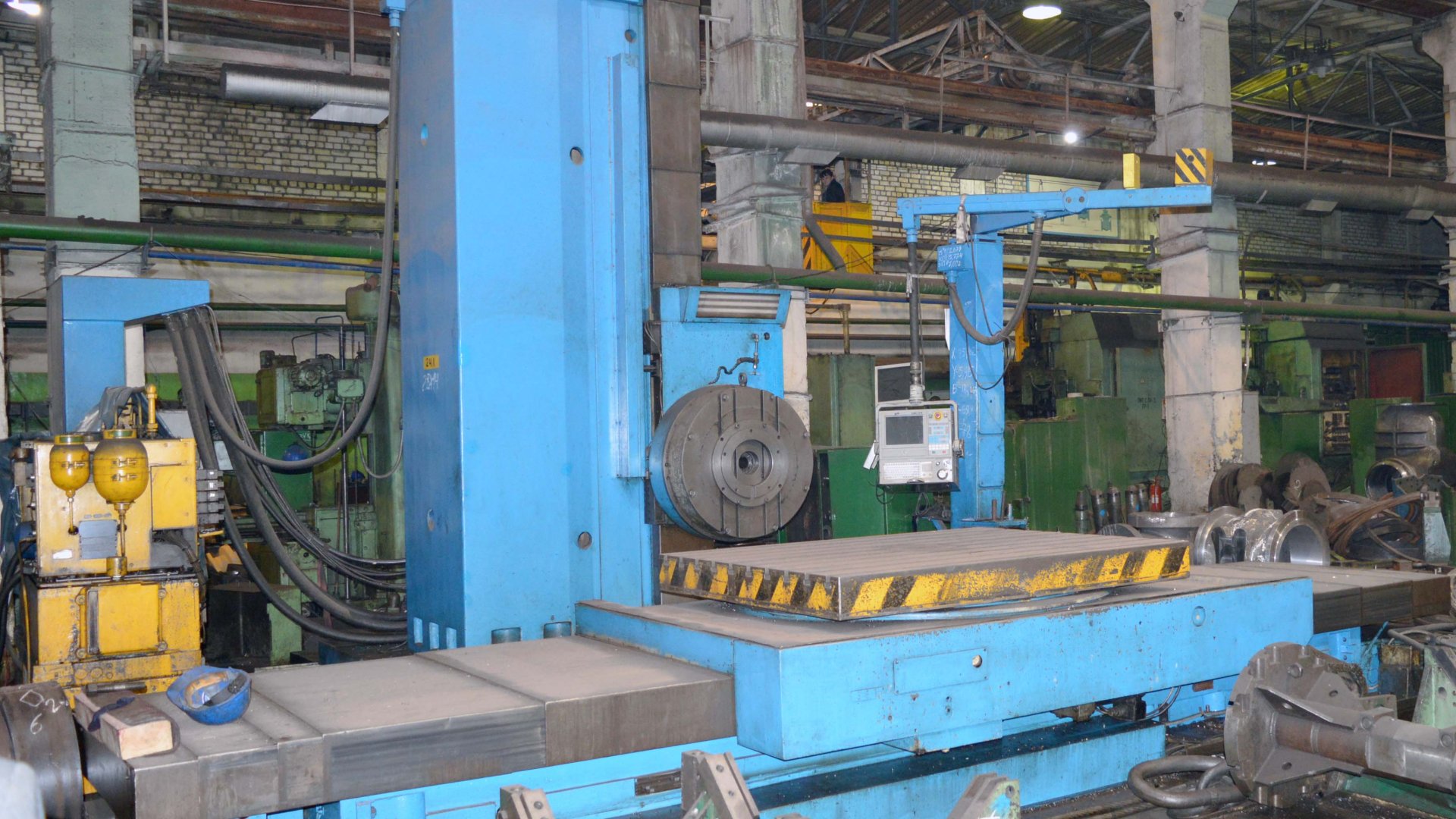

Horizontal boring mill BFKP-130 CNC
Manufacturer: UNION
Condition: complete. The machine is equipped HEIDENHAIN, faceplate and angle head.
General description: Horizontal Boring and Milling Machine UNION BFK-130 CNC is used for machining of large parts and irregular shape of design and also cast details. It is particularly beneficial to use for precise drilling, boring, milling and axis facing at high accuracy requirements
Specifications:
- spindle diameter, mm 130
- spindle taper ISO 50
- spindle torque, Nm 5350
- spindle speeds, RPM 1120
- main motor power, kW 47
- X axis (table), mm 3000
- Y axis (headstock), mm 2000
- Z axis (column - longitudinally), mm 1000
- W axis (spindle movement), mm 850
- U axis (support of faceplate), mm 280
- feed-rate X, Y, Z, W / U axis, m/min 10, 10, 10, 10, / 1
- rotary table size, mm 2000 x 1600
- B axis (table rotation angle), deg 360
- power capacity, kW 80
- machine weight, kg 26000
Weight:
26000 kg
