ALESA MONTI, MCS 100, HORIZONTAL TABLE TYPE, BORING MILLS
  • Condition:Used
  • Category:BORING MILLS
  • Type:HORIZONTAL TABLE TYPE
  • Manufacturer:ALESA MONTI
  • Model:MCS 100
  • YOM:-
  • Location:United States, San Jose
  • Price:-
  • Stock No:-
  • Control:-
  • ID:AS15932
Description:
It is in beautiful condition under power and available for your inspection.
Specifications:

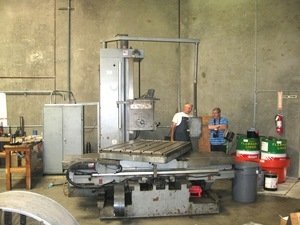

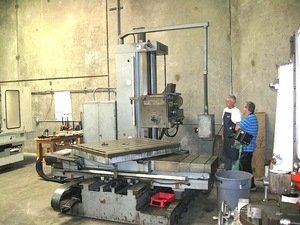

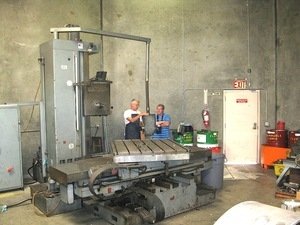

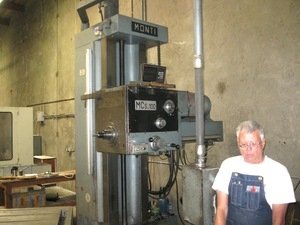

4" ALISA MONTI MODEL MCS 100 Table type Horizontal Boring Mill


Travels Cross mm 2000 (79.36")
Vertical mm 1500 (59")
Longitudinal mm 1000 (39.37")

Spindle Travel (Z-Axis) 600 mm (23.6")


Spindle Taper ISO 50 (DIN 69871)
Spindle diameter 4"
Spindle Motor power kW 24
Max spindle rotation r.p.m. 4000

Rotary table

Dimensions mm 1100 x 1200 (43" x 47.2")
Max weight admitted 4000 kg (8,800 lbs")

Weight of standard machine 23000 kg (50,600 lbs)

* (2) DRO's
* BUILT IN ROTARY TABLE

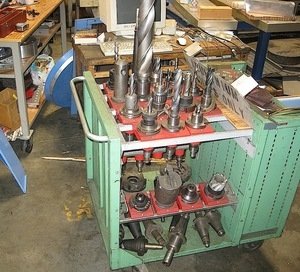

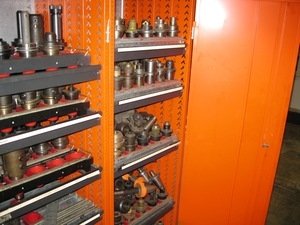

* ALL AVAILABLE TOOLING & MANUALS
* PENDANT CONTROL
Weight:
50600 lbs
