Stock-No. 1106-BO246

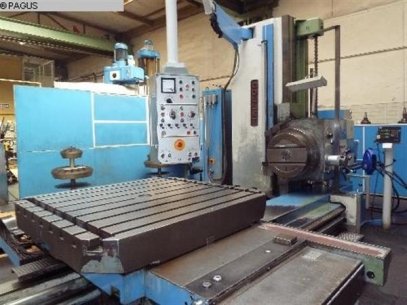

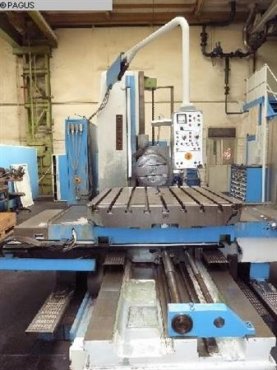

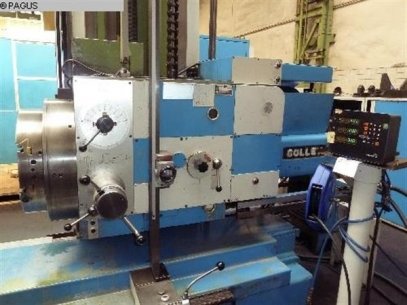

Type of machine Table Type Boring and Milling Machine
Make COLLET & ENGELHARD
Type BF f 100/110 nu
Year of manufacture 1968
Type of control konventionell
Storage location from location
Country of origin Germany
Specifications:
spindle diameter 110 mm
x-travel 1400 mm
y-travel 1200 mm
z-travel 1300 mm
w-travel 710 mm
table surface area 1400x900 mm
table load 4000 kg
tool taper ISO 50
power capacity 11 kW

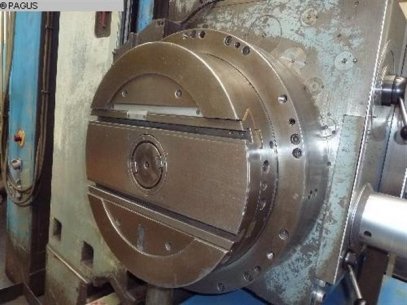

faceplate diameter 530 mm
working spindle speed range 6 - 1250 U/min
faceplate turning speed range 5 - 180 U/min
faceplate movement 210 mm
radial face slide feeds: 0,03-3 mm/U
face diameter 1200 mm
feeds 0,02 - 10 mm/U
rapid traverse 2800 m/min
voltage 380 V
frequency 50 Hz
engine output 7,5 kW
weight of the machine ca. 20,5 t
dimensions of the machine ca. 4500 x 3500 x 3100 mm
