Description:
5 Axis Horizontal Boring Mill, Table Type, With Fanuc 18iM-B Control, 5.12" Spindle, 70.86" x 62.99" Built In Rotary Table with 0.001 Degree Indexing, Travels of 118" Cross, 78.74" Vertical, 63" Column, 27.6" Spindle, Rapid Traverse Of 393 IPM, Cat 50, 40 ATC, 2,500 RPM, 35 HP, 33,000 lb Table Load, Coolant Thru Spindle, Chip Conveyor
Specifications:

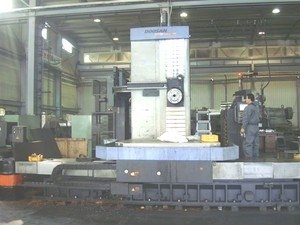

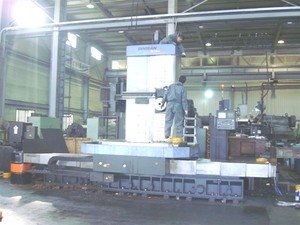

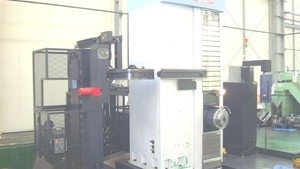

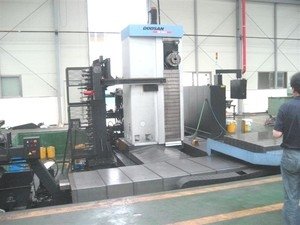

2008 Daewoo DB-130CX
5 Axis Table Type Horizontal Boring Mill

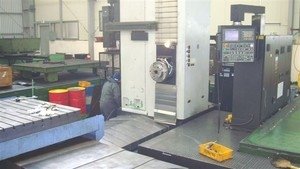

Fanuc 18iM-B Control
Specifications:
Spindle Diameter 5.12"
Milling Spindle Diameter 8.9"
Rotary Table Size 70.86" x 62.99"
Table Load Capacity 33,000 Lbs
Cross (X) Travel 118"
Vertical (Y) Travel 78.74"
Column (Z) Travel 63"
Spindle (W) Travel 27.6"
Rotary Table (B) Indexing 0.001 Deg.
Rapid Traverse X/Y/Z/W 393.7 IPM
Spindle Taper Cat 50

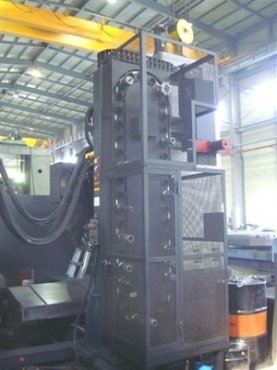

Automatic Tool Changer 40 Positions
Spindle Speeds To 2,500 RPM
Spindle Motor 35 HP
Approx Dimensions l,w,h 323" x 295" x 197"
Machine Weight 94,800 Lbs
Specifications subject to confirmation at inspection
Equipped With:
Fanuc 18iM-B Control Automatic Toolchanger
Coolant Thru-Spindle Coolant System

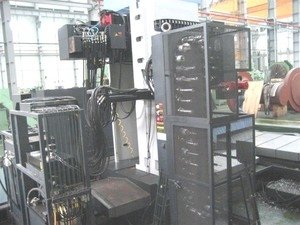

Built-In Rotary Table Chip Conveyor
All Available Manuals All Available Tools
Condition: Very Good
Dimensions:
323" x 295" x 197"
Weight:
94,800 Lbs
