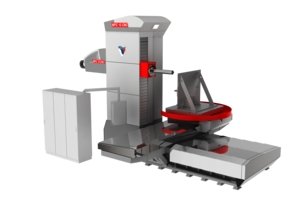

Table Type Horizontal Boring and Milling Machine WFC 13 CNC is a new type of the machine, which is built on a sliding guiding. The frame of this machine is seated on a firm stand and linked with a bed in the axis X. The frame is immovable. Workpiece motion is performed by a special cross-type machine execution, where the plate of the rotary table is moved along the axes X and Z. This machine is designed for machining of smaller and middle-weight parts up to 10 000 kg.
Specifications:
Machine Axes
enabling control of four axes X, Y, Z, W in the positional coupling (the spindle out-travel axis is controlled as an assistant one) and the axis C in the speed coupling. The positional measurement at the coordinates X, Y, Z and W is carried out by an encoder (optionally X, Y and Z by a linear measuring). The angle positioning of the spindle in the axis C is controlled by a rotational sensor and by the mutual positional coupling between the spindle and the feeding screw also thread cutting is possible. Measurement of the position B is controlled by an angle sensor, which is fastened to the fixed pin in the table centre. Spindle speed can be continuously changed within the whole range of working revolutions.
Machine Design
Modular design lets our customers configure the machine to their requirements.
X-axis travel 2500 mm
Y-axis travel from 1 700 mm to 2 500 mm
Z-axis travel 1 600 mm
CNC rotary table is offered in six dimensions with maximum table load 10t
1600 x 1800 mm
1200 x 1200 mm
1200 x 1400 mm
1400 x 1600 mm
1600 x 1600 mm
1600 x 1800 mm
