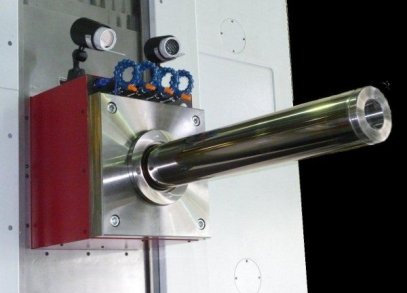

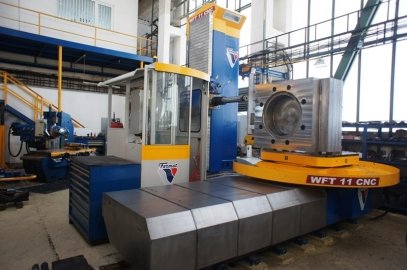

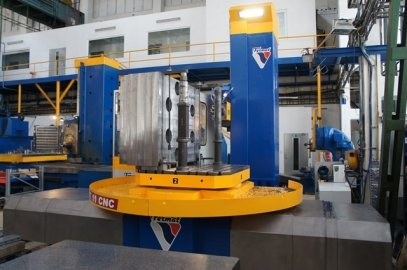

Horizontal Boring Mill WFT 11 CNC is a smaller version of Fermat Bestseller machine WFT 13 CNC. The ball screw of Y Axis (diameter of 63 mm) a rigid column made of grey cast iron and a powerfull spindle with a diameter of 110 mm guarantees the quality of this machine. The high accuracy of WFT 11 is supported by the use realiable components such as Heidenhain linear scales or a monitoring and stabilizing temperature systems. Moreover the high positioning precision is achieved by two servo´s on the axis that prevent a backlash of the table (part of a standard configuration).
Specifications:
Spindle diameter: 110 mm

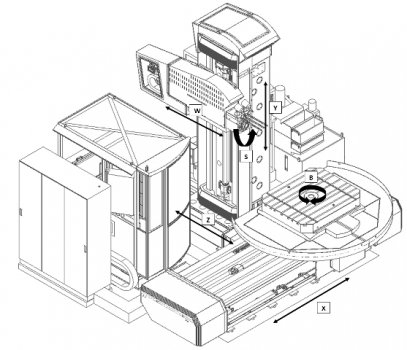

Travel X-axis: 3000 mm
Travel Y-axis: 2000 mm
Travel Z-axis: 1250 mm
Travel W-axis: 730 mm
Power: 17 kW
Spindel speed: 3000 rpm
Rotary table: 1400 x 1600 mm, 8T
