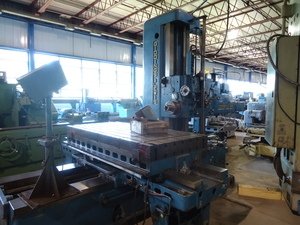

Hardways, #50 taper, 60" cross, 48" vertical

With:
- longitudinal shaft drive

- Stepp cartridges

- pneumatic ejectors

Number of Steps: 11 (10x working steps + 1x cutting step outside of the left column)

Total capacity: 4500 kN (450 ton)

Power of the cutting ram: 1000 kN (100 ton)

Power of drawing slide: 3500 kN (350 ton)

Max. Power per step: 1750 kN (175 ton)

Working capacity of the ram: 75000 J (7500 mkp)

Speed adjustable: 20 - 45 per min

Speed for testing of the tools adjustable: 2 - 20 per min

Power of the main motor at 2350 rpm: 100 KW

Column width: 3600 mm

Day light between table and steps cartridge: 830 mm
(Stroke low, adjustment high)

Height from press table to gripper: 520 mm

Stroke of cutting ram: 160 mm

Stroke of drawing slide: 320 mm

Max. Drawing depth: 120 mm

Adjustment of the step cartridges: 60 mm

Adjustment of the cutting ram: 60 mm

Distance between the tools: 330 mm

Maximum diameter of the sheet: 320 mm

Eject power in the drawing steps (at 16 bar): 65 kN (6,5 to)

Stroke of the pneumatic ejector: 120 mm

Gripper bar - Inside width (opened max.): 640 mm

Gripper bar - Inside width (closed min.): 300 mm

Adjustment of the key plate between 2 mm
the step cartridge and the ram at the steps 3-8

Distance from underside of step cartridge: 110 mm
to underside ejector

Gripper rail - closing stroke per rail: 110 mm

Ram drill (diameter x depth): 80 mm x 100 mm

Table channel drills: 235 mm

Depth of the table clamping surface for the tools: 900 mm

Height for the transport level for the parts from floor: 1100 mm

Height of the press over floor: 6800 mm
