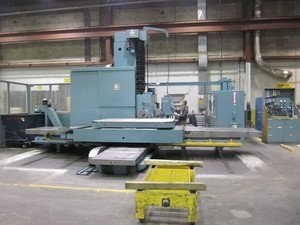

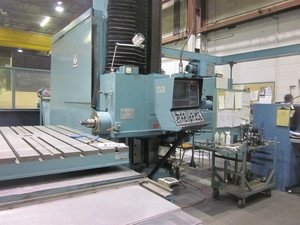

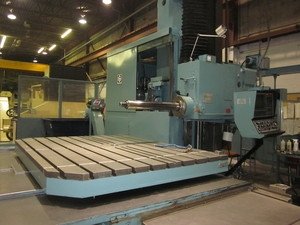

5” GIDDINGS & LEWIS G50-RTXS HORIZONTAL BORING MILL
S/N 450-1111 YEAR 1987 MJV-4424
Machine is in excellent condition and can be inspected under power!

5” GIDDINGS & LEWIS G50-RTXS HORIZONTAL BORING MILL
S/N 450-1111 YEAR 1987 MJV-4424


Capacities..................................................... Inch................................... Metric
Headstock Travel (Y axis) …....................... 91”.........…........................ 2311 mm
Spindle Travel (z axis) …....................... 36”.........…........................ 914 mm
Table Size (rotary)......................................... 72” X 96”.......................... 1829 mm x 2438 mm
Table Capacity............................................... 40,000 lbs.......................... 18,144 kg.
Table Cross Travel........................................ 120”................................... 3048 mm
Bed Length................................................... 120”................................... 3048 mm
Saddle Travel................................................. 71”..................................... 1800 mm

Headstock
Spindle Diameter …...................................... 5”........................................127mm
Spindle Speed Range (rpm)........................... 14 to 3018
Spindle Taper................................................. Cat 50 Collet Type
Spindle HP..................................................... 40
Feed Range (z axis)...................................... .010 to 100 ipm................. 0.25 mm – 3175 mm
Traverse Rate (z axis)................................... 300..................................... 7620 mm
Feed Range (y axis)...................................... .10 – 100 ipm.................... 0.25 mm – 3175 mm
Traverse Rate (y axis).................................... 300 ipm............................. 7620 mm

Table And Saddle
Traverse Rate, per minute ( x axis)................ 300 ipm …........................ 7620 mm
Feed Range, per minute (x axis).................... .010 – 150 ipm.................. 0.25 mm – 3175 mm
Traverse Rate, per minute (w axis)................ 300 ipm …........................ 7620 mm
Feed Range, per minute (w axis)................... .010 – 150 ipm.................. 0.25 mm – 3175 mm

Equipped With
-Giddings & Lewis Model 8000 Control – Four Axis Contouring
-Built in Rotary Table With 360,000 Degree Indexing
-Ballscrews and Servo Drives all 4 Axis
-Harden Ways all Axis
-G&L 8000 Control
- Three Way Vertical Column
-Bijur Auto Lube System
-High Pressure thru Spindle Coolant
-X & W Axis Way Covers
-Chip Conveyor
-40 Station Automatic Tool Changer
-40 Horse Power Spindle Motor
-Double Outriggers On Table

Condition: Excellent

This Machine can be inspected under power.

All specifications subject to correction and/or revision.
