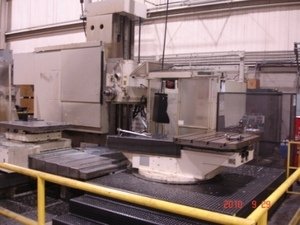

1991 Giddings & Lewis CNC Horizontal Boring Mill Model MC 50 APC-2
With Fanuc 18i M CNC Control
Machine includes:
Automatic pallet changer 2 pallets
Set up station
Pendant control with remote MPG

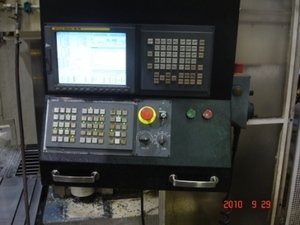

Fanuc 18i M CNC control
Coolant system
Chip conveyor
Wired for Probe
Telescopic way covers
Very well maintained machine, good condition

2002 Union KCX-130 CNC Horizontal Boring Mill

Specifications:
Table Size................................................ 100" x 80"
Table Load Capacity................................ 80,000 LBS
Table Travel (X-Axis) .............................. 157"
Column Travel (Z-Axis).............................60"
Spindle-Head Travel (Y-Axis)...................118.1"
Fixed Spindle Extension.......................... 29" (No Quill Travel)
Spindle Taper......................................… #50 CAT
Spindle Diameter.................................... 5.11"
Spindle Horsepower (30 min/cont).......... 60 HP
Spindle Speeds (Infinite in 4 ranges)...... 6 to 6000 RPM
Feeds Rates All Axis............................... 0 - 590 IPM
Electrics.......................................... …… 240/460/3/50
Approximate Machine Dimensions.......... 296" x 328"
Approximate Machine Height................. 248"

Equipped with:
Heidenhain TNC426 CNC Control
8 Gig Memory
Ethernet Connection
120 Station Automatic Tool Changer
Thru-Spindle Coolant
Heavy Duty Cat-50 Spindle
Full Enclosure
Twin Chip Conveyors
80" x 100" Full Contouring Rotary Table (360,000 Positions)

***** Due to the High Spindle RPM this is a Fixed Spindle Machine (No Quill Travel)

From a World-class High Precision Shop!!! Low Hours!
