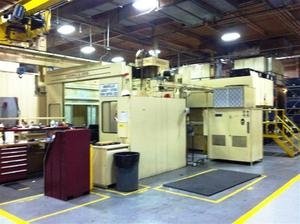

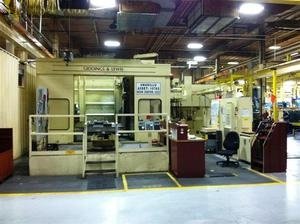

5" Giddings & Lewis CNC Table Type Horizontal Boring Mill, Model MC-50, Mfg. 1997, 8000-B CNC Control, 120 Station Automatic Tool Changer (#1678)
Specifications:
#1678 5” Giddings & Lewis CNC Table Type Horizontal Boring Mill

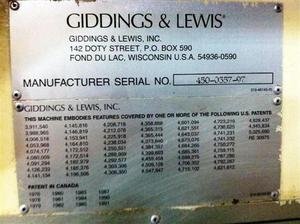

S/N: 450-0357-97
Model: Mc-50
Mfg. 1997
Specifications:
40 Station Automatic Tool Changer
(2) 36” x 48” Pallets with Shuttle System
Spindle Diameter: 5”
Taper in Spindle: #50 ANSI
Vertical Headstock Travel, Y-Axis: 65”
Table Cross Travel, X-Axis: 66”
Spindle Travel, Z-Axis: 36”
Saddle Travel, W-Axis: 54”
Pallet Size (2): 36” x 48”
Table Weight Capacity: 8000 Lbs
B-Axis, Table Rotation: 360,000 Degrees
Rotary Table Speeds: 2 RPM
Spindle Speeds: 14-3000 RPM
Spindle Motor: 50 HP 460 Volt
Feeds: 0.01 to 150 IPM
Rapid Traverse X & Y Axes: 450 IPM
Rapid Traverse W & Z Axes: 300 IPM
Electrics: 460/3/60
Equipped With:
Giddings & Lewis 8000-B CNC Control
120-Station Automatic Tool Changer
AC Servo Drives on all Axes
Numeriprobe Part Probe
(2) 36” x 48” Pallets with Shuttle System
Collet Type Draw Bar
Thermal Compensation Z-Axis
Software for CH-8 Contouring CNC Facing Head (Head not included)
Lubricooled Hydraulic Unit
Flood Coolant & Air Thru Spindle 100 PSI 10-12 GPM
Hardened Ways on Column
Bed & Saddle
Way Covers on all Axes
Full Chip and Splash Enclosure
Chip Conveyor
50 HP Spindle Motor
