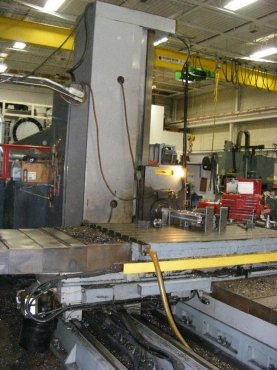

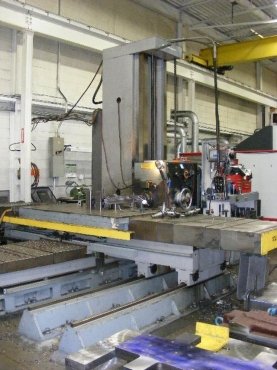

4.3" Kuraki Model KBT1101P Manual Table Type Horizontal Boring Mill

Spindle diameter 4.33"
Spindle taper 50 USAS
Spindle speeds (16) 12 - 1200 RPM

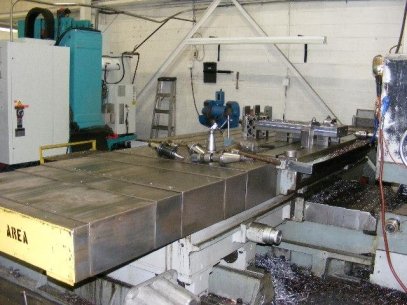

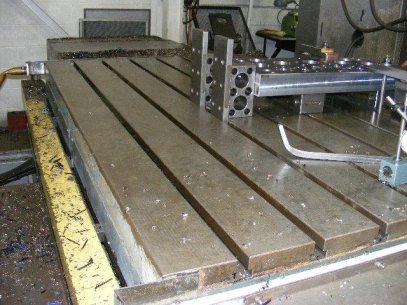

Table size 49" x 78.7"
Table load capacity 13,200 Lbs.
Travel - cross 84"
Travel - vertical 72"
Travel - longitudinal 59"
Travel - spindle 31.5"
Feeds - boring (16) 0.001 - 0.2 in/rev
Feeds - milling (16) 0.25 - 48 in/rev
Feeds - rapid 100 ipm
Main motor 20 HP
Floor space LxWxH 229" x 207" x 157"

Equipped with:

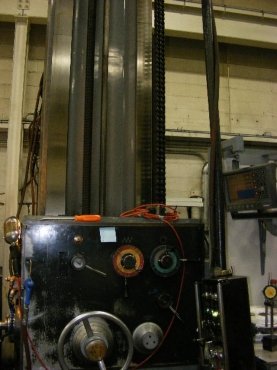

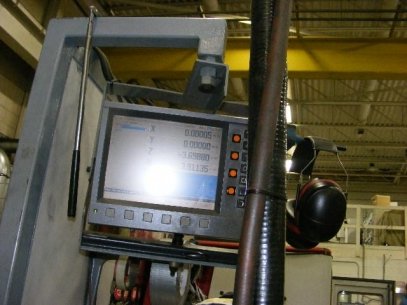

-4 axes Heidenhain DRO

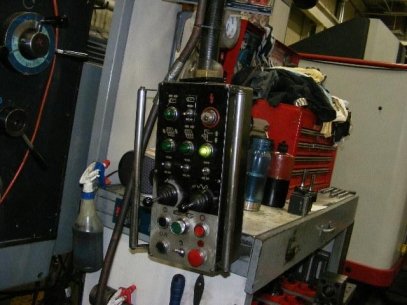

-Pendant control
-Power drawbar
-Coolant tank

52,000 Lbs
