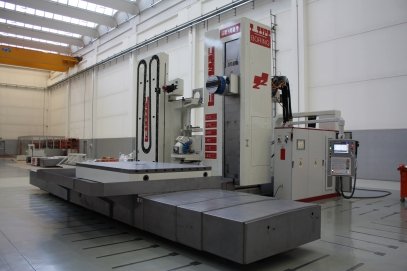

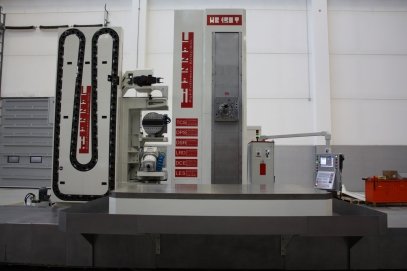

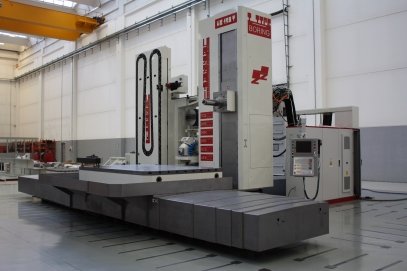

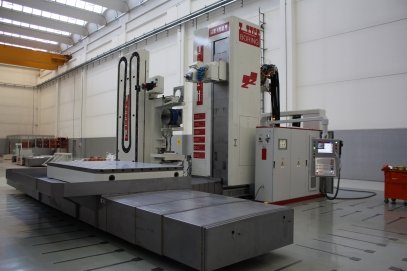

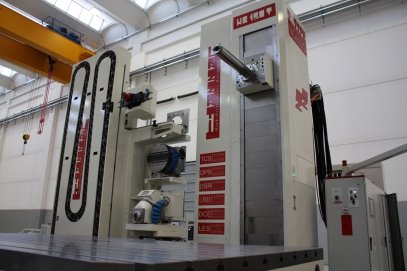

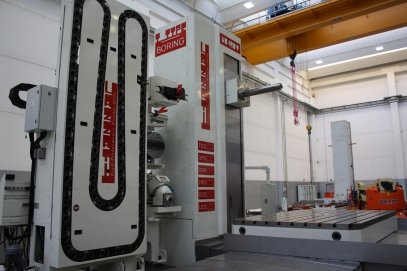

High Power & Precision Hydrostatic Horizontal Boring Mill Spindle 150mm and Rotary Table 30ton

Spindle 150mm - ISO50-Big Plus
70kW - 3.250RPM - 3.220Nm
Table Cross X=3.00-4.000-5.000-6.000mm
Headstock Vertical Y=2.100-2.600-3.100mm
Column Longitudinal Z=1.5001.800-2.300mm
Spindle W=900mm
Rotary Table B=2.000x2.500 or 2.000x3.000 30ton
CNC HEIDENHAIN, SIEMENS, FANUC, FAGOR
Coolant High Pressure 35Bar Internal/External

Available Options:

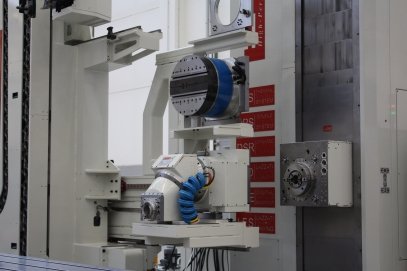

TW 60/120 - On Ground Tool Changer 60 or 120tools
TW K - Automatic Pick-up Station 2+1

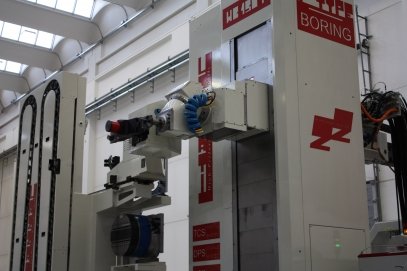

A UA 360 - Automatic Universal Head 1°x1°

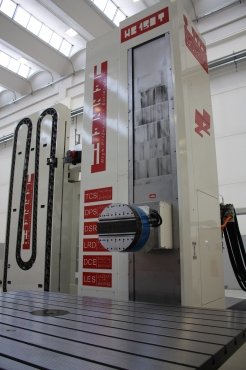

A FH 500 - D'Andrea Facing Head UT5/500S
A FH 630 - D'Andrea Facing Head UT5/630S
A SC - Spindle Support L=300mm
O CM - LAZZATI Collision Monitoring System
O SP - Workpiece Probe
J T - Chip Conveyor

8.000x7.500x5.200

40 Ton
