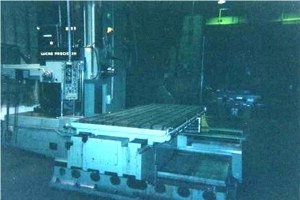

Manufacturer:.................Lucas
Machine Type:.................Table Type
Model Number:.................542B120
Year:.........................1966
Spindle Diameter:.............5 in.
Taper:........................No. 50
Spindle Stroke (W Axis):......36 in.
Spindle Rotation Speeds:......10 - 1,220 r.p.m.
Spindle Stroke Feed (i.p.r.)...0001-1.038 i.p.r
Spindle Stroke Feed Points:...42
Spindle Motor:................25 h.p.
Vertical Travel of
Head Stock (Y Axis):........72 in.
Table Type:...................Four Way Bed
Table Size:...................110 in. x 48 in.
Table Capacity:...............40,000 lbs
Table Cross Travel (X Axis):..96 in.
Saddle Travel (Z Axis):.......47 in.
Rapid Traverse Speeds:........112 i.p.m.
Machine Weight:...............66,500 lbs
Features:
Power draw bar
Flame hardened ways and screws
Full pendant control
