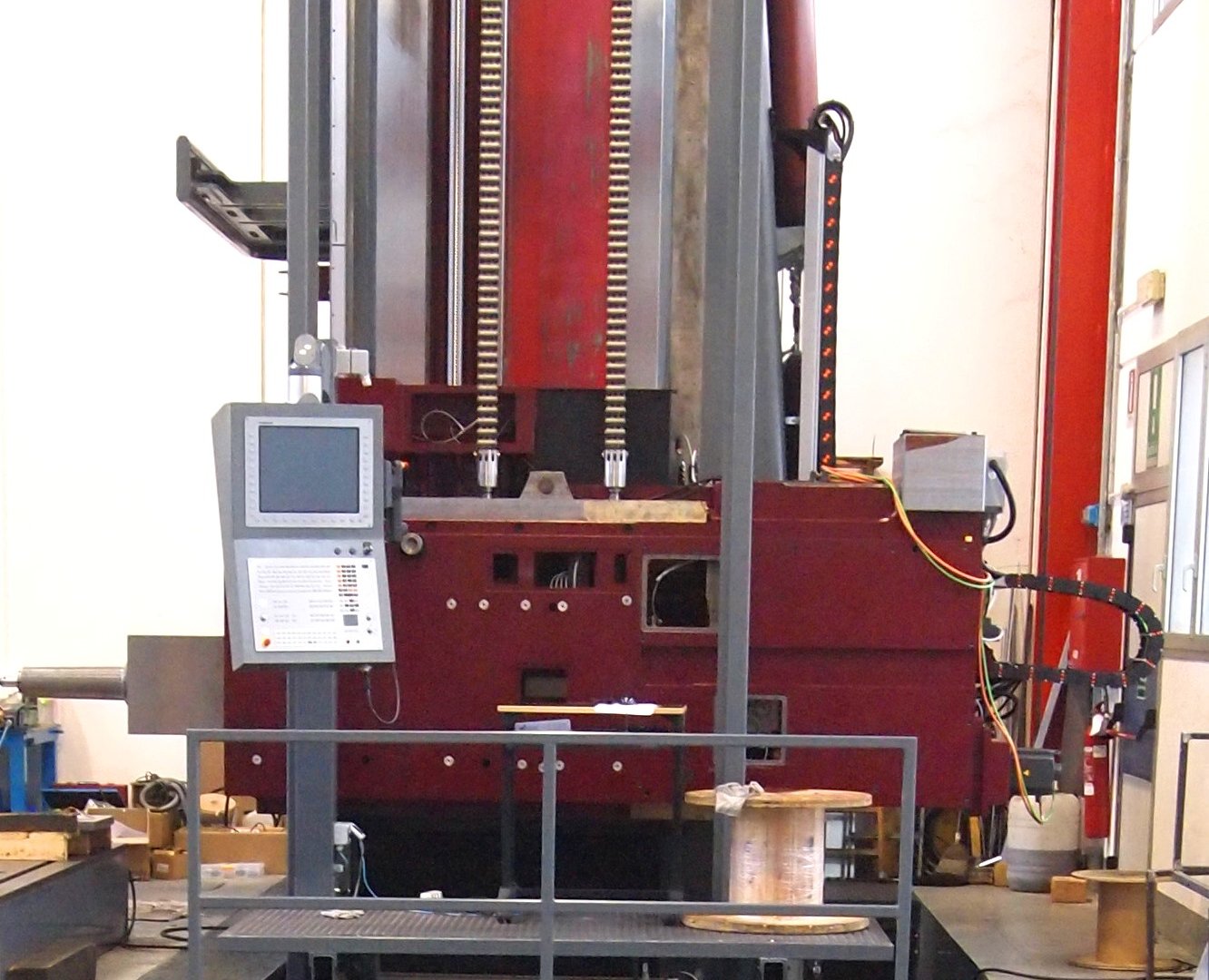

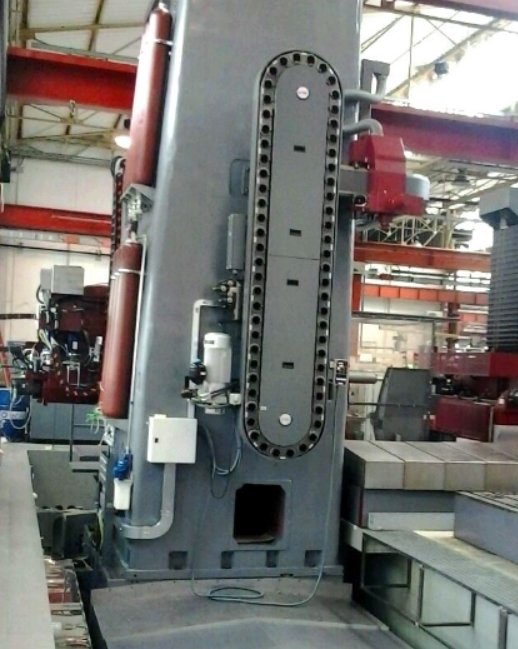

Boring Mill Floor Type 160 with Ram
6 CNC controlled axes, Heidenhain 530, Motor Drives and latest generation.
Spindle diameter 160 mm
Coolant through spindle
iso 60
3,000 RPM (revolutions per minute)
Bi-rotary head ISO 60
Head extension
Spindle motor 60 Kw
Tool changer 60 positions
X 6,000 mm
Y 3,000 mm
W 1,200 mm
Z Ram 800 mm
Ram section 310 X 310 mm
Excellent price quality
Available various Rotary Tables Transfert.
Different levels available to be adapted according to the requirements.
Viewable at our headquarters.
Max Machinery Italy

-
