Manufacturer: PAMA, Italy
Model: AT 130/3 CNC
Year of manufacture: 1996

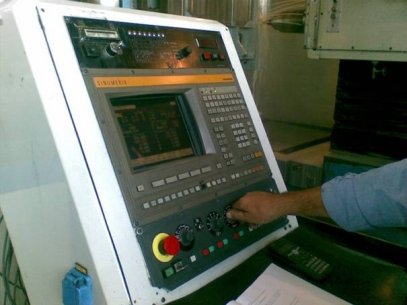

Control: CNC SIEMENS SINUMERIK 828
Condition: Excellent, complete, machine will be equipped with a new CNC control SINUMERIK 828!
Location: Machine in our warehouse Rudniki, Poland.



Technical details
Spindle diameter: ø 130 mm

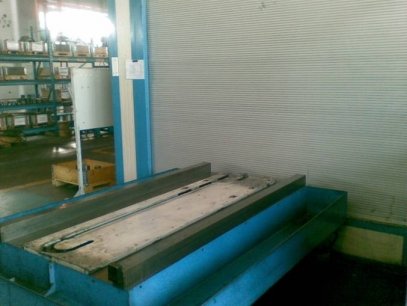

Rotary table: 1600 x 1600 mm
Table capacity: 12000 kg
X axis travel: 2500 mm
Y axis travel: 2400 mm
Z axis travel: 750 mm
W axis travel: 2030 mm
Max spindle speeds: 2200 RPM
Main motor Power: 35 KW
ATC magazine: 100 pcs
Rapid feeds: - X- 10,000 mm/min
- Y- 12,000 mm/min
- Z- 6,000 mm/min
- W – 12,000 mm/min
- B – 2
Gear steps 2 ranges
Torque in axes: X- 55 Nm; Y- W-B- 37 Nm; Z- 27 Nm
Weight: 35 kg
Max. tool diameter with all places occupied: 140
Max. tool length: 600 mm
Equipment: - 1 psc.Rotary table
- ATC for 100 pcs
- APC 2 pcs 1600 x 1600 mm
- External cooling
- Internal cooling
- Renishaw MP7
- Chip conveyor

-
