1967 SCHARMANN FB 500 50 TAPER, 77" X 48" X 68", 48" X 56" ROTARY TABLE, BUILT-IN FACING HEAD, HEIDENHEIN DRO

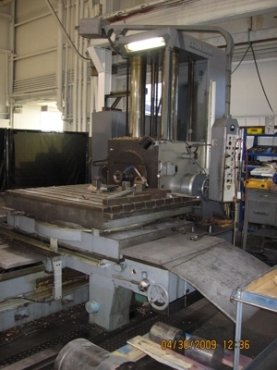

1967 SCHARMANN FB 500 HORIZONTAL BORING MILL

SPINDLE DIAMETER 5-1/4”
CROSS TRAVEL 77”
VERTICAL TRAVEL 48”
SADDLE TRAVEL 68”
SPINDLE TRAVEL 32”
TABLE SIZE 48” X 56”
SPINDLE TAPER #50
FACING HEAD DIA. 25-1/4”
FACING HEAD STROKE 8”
SPINDLE SPEEDS to 760 RPM VARIABLE
RAPID TRAVERSE 200 IPM
MACHINE WEIGHT 52,800 LBS

EQUIPPED WITH: HEIDENHEIN DRO
BUILT-IN FACING HEAD
BUILT-IN ROTARY TABLE
#50 TAPER WITH POWER DRAWBAR
OUTRIGGERS
SCHARMANN LEONARD GEN. SET


TERMS: SPECIFICATIONS AND EQUIPMENT LISTED SUBJECT TO VERIFICATION

52,800
