Rotary Table, Chip Conveyor, Flood Coolant, 1990 retrofit to CNC

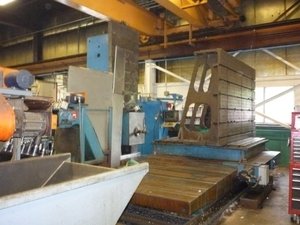

USED CNC TABLE TYPE HORIZONTIAL BORING MILL
Make: Schiess S/N: Unknown
Model: BF160 T25 Condition: Average

SPECIFICATIONS

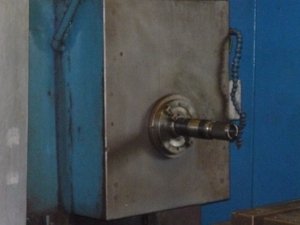

Spindle Diameter 6.0”
Spindle Taper NMTBA 50
Spindle RPM 3 – 1,200 RPM
Main Motor Horsepower (3 Range) 40 Hp

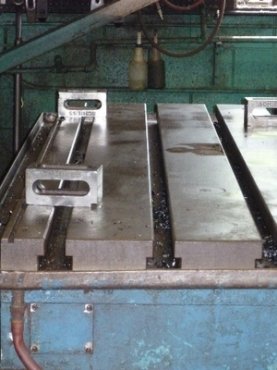

Table Size 72” x 72”
X Axis Travel 98.0”
Y Axis Travel 72.0”
Z Axis Travel 50.0”
W Axis Travel (Quill) 36.0”

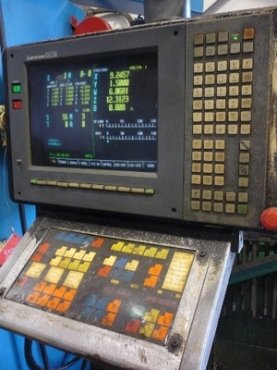

CNC Control Mitsubishi 330 (1990 Retrofit)
Number of Controlled Axis 3+2
Machine Weight 59,000 lbs.
Floor Space Required 20’4” x 22’0” x 13’ 9”
Machine Voltage 480/3/60

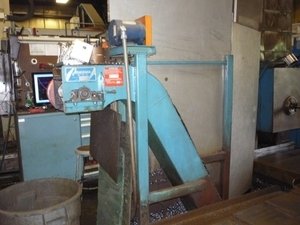

INCLUDES: Built-in Rotary Table, Chip Conveyor, Flood Coolant

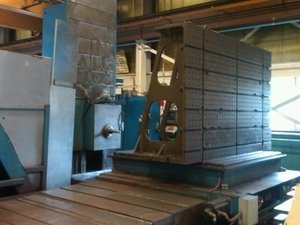

NOTE: Large Angle Plate shown in Photo not included. Tooling Package available for additional cost.

PRICE $ 79,500.00

Terms: Full payment prior to shipping
Warranty: Customer Owned – Inspect Under Power
F.O.B.: Shop Floor – SE Wisconsin
Loading/DeInstall Charges: $ 8,000.00 via Insured Rigger

20' 4" x 22' x 13'9"

59,000 lbs.
