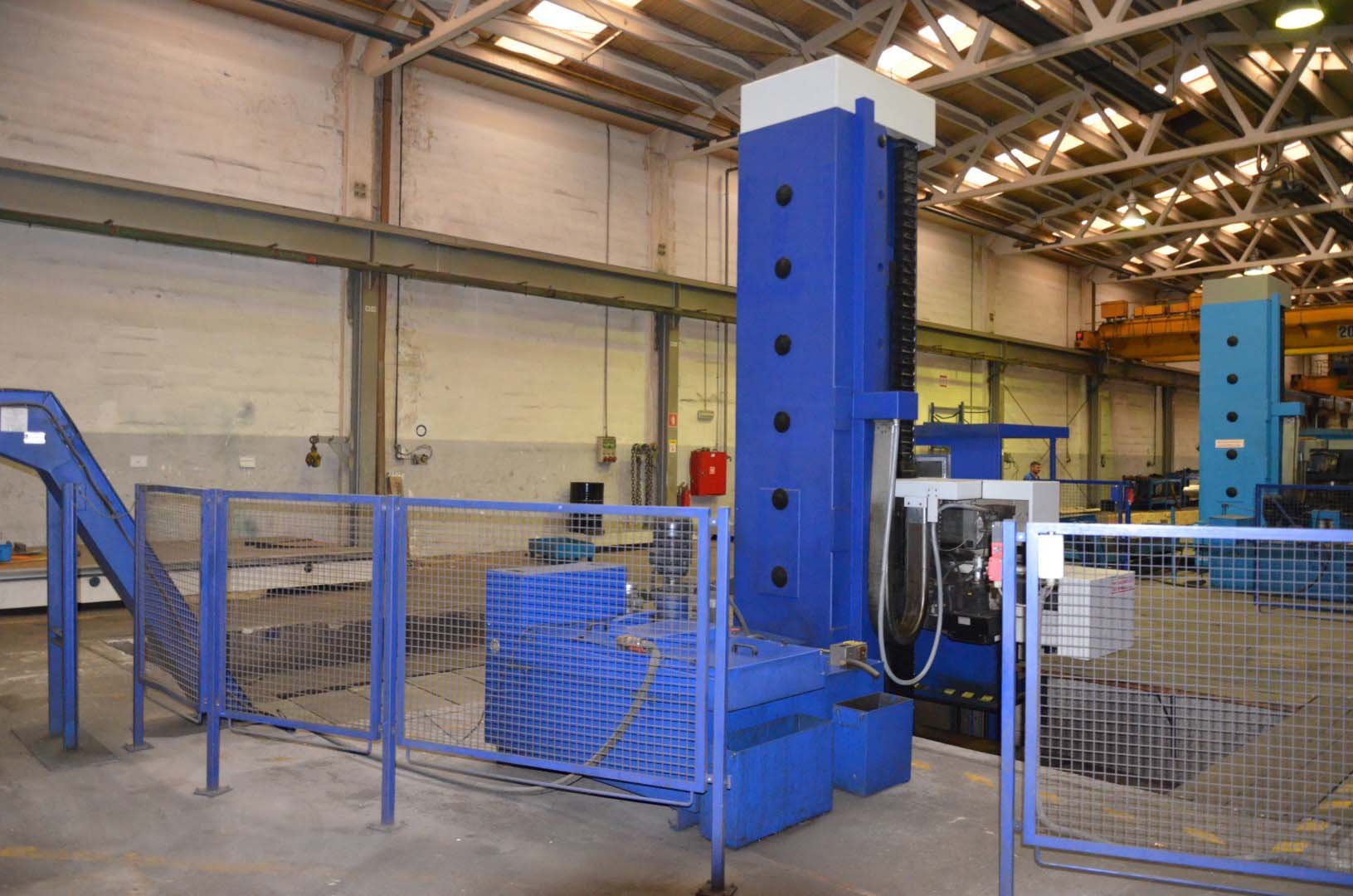

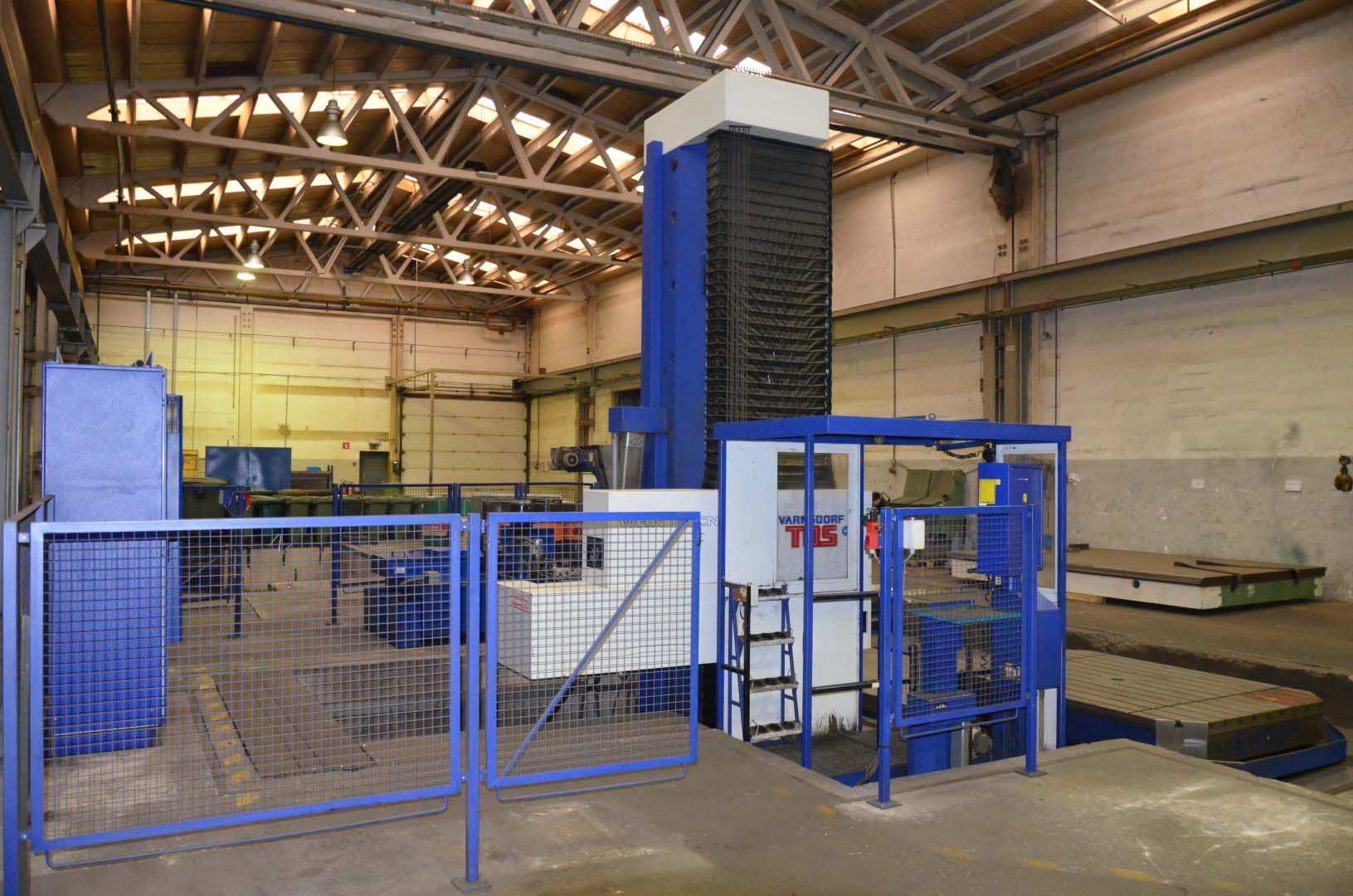

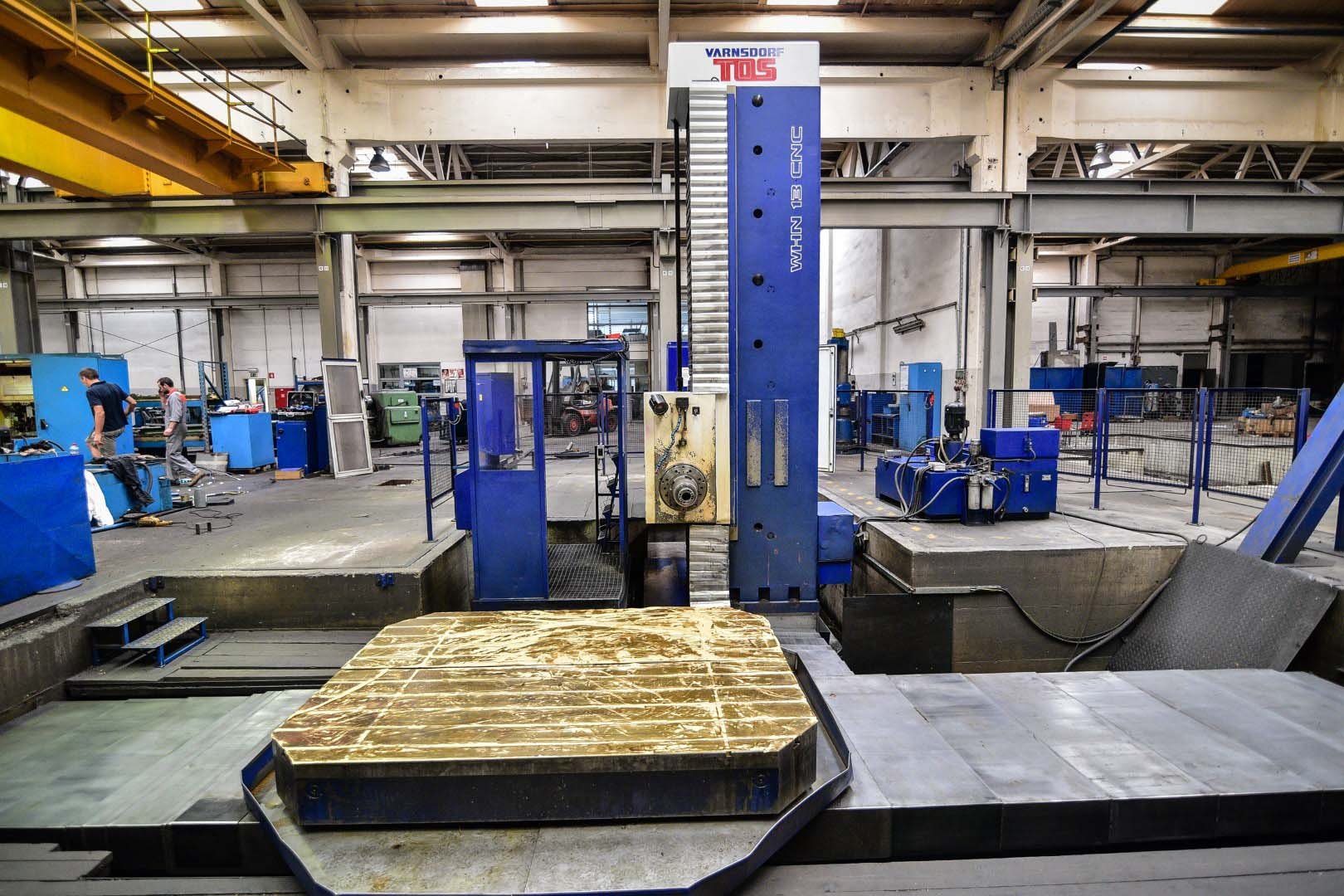

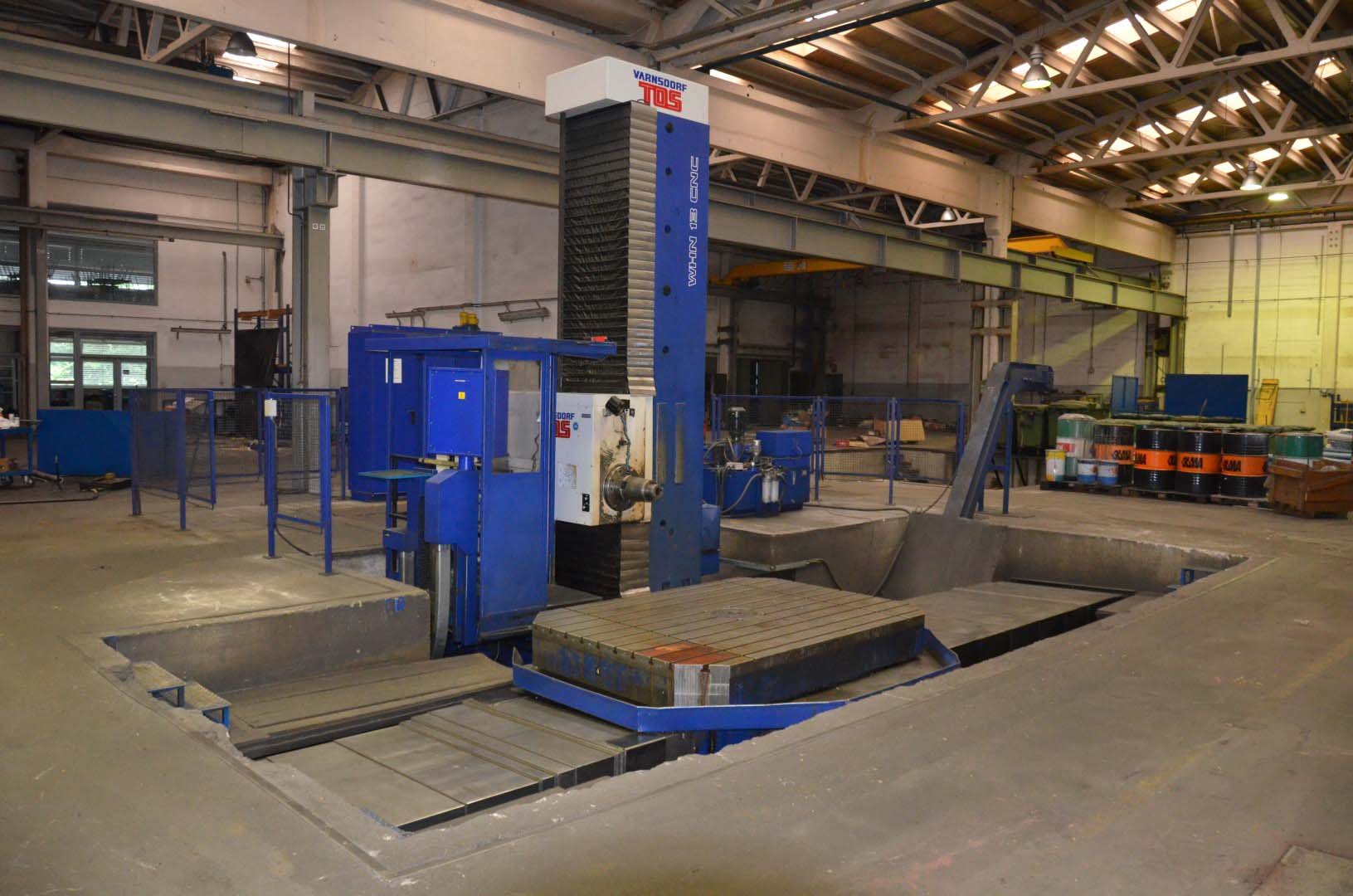

Table type boring mill
TOS VARNSDORF - WHN13CNC
MACH-ID 8503
Make: TOS VARNSDORF
Type: WHN13CNC
Control: HeidenHain iTNC530
Year: 2006

Extended X Travel to 5000 mm
Extended Y travel to 3000 mm
Coolant system
HeidenHain HR410 Handwheel
HYTOS Lubrication in X/Y/Z/B Axis
Optional TOS HUR50 Universal milling head
Optional tooling package


X - Travel: 5000mm
Y - Travel: 3000mm
Z - Travel: 2000mm
W - Travel: 800mm
Table Length: 2200mm
Table Width: 1800mm
Table load: 12000
Speeds / ranges: 5000Rpm
Power: 37kW
Spindle Taper: 50ISO/Bt/Mk
Feed rate X-Axis: 8000mm/min.
Feed rate Y-Axis: 10000mm/min.
Feed rate Z-Axis: 10000mm/min.
Feed rate W-Axis: 10000mm/min.
Number of controlled axis:5
Length: 8650mm
Width: 7800mm
Height: 5800mm
Weight: 42000kg
