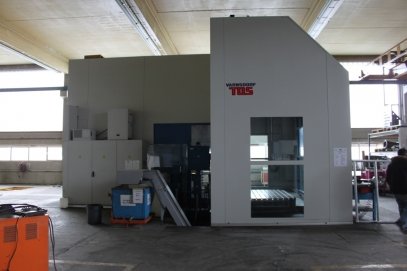

Make TOS WHN Varia
Type Varia
Year 11 / 2003
iTNC 530
Spindle diameter (mm) 130/35/3500

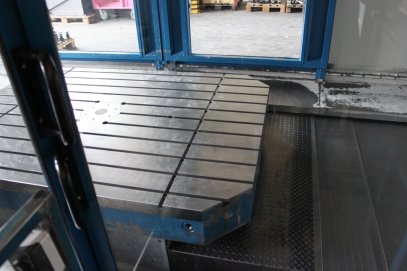

Table length (mm) L = 2.500
Table width (mm) W = 1.800
Longitudinal X (mm) X = 3.000
Cross Y (mm) Y = 2.500
Pos ATC Z = 800
Number APC. W = 2.100

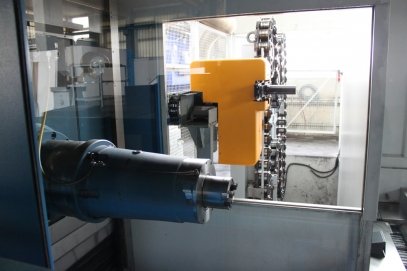

ATC 80 chain positions
B Axis 0,001 Gr.
Table load 20 Ton

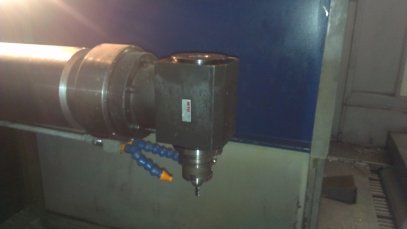

* Large ISO 50 tooling * Spindle bearing support * Vert. milling head
