Description:
CATALOG SPECIFICATIONS

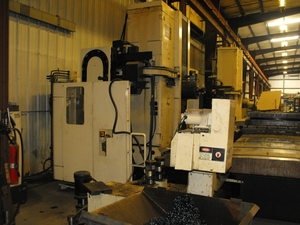

RIGID CAST-IRON CONSTRUCTION W/ HARDENED & GROUND BOX WAYS
8"(200MM) DIAMETER LONG-TYPE NOSE QUILL(OPTION)

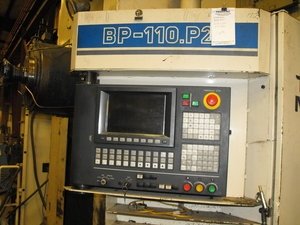

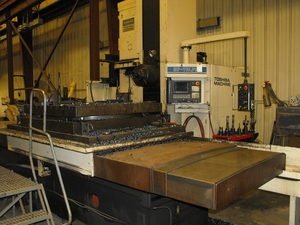

OPERATOR-FRIENDLY TOSNUC 888 CNC UNIT

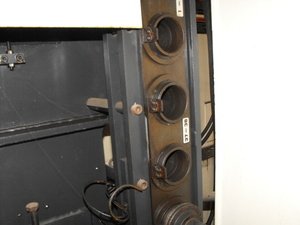

SPINDLE CLAMPING MECHANISM

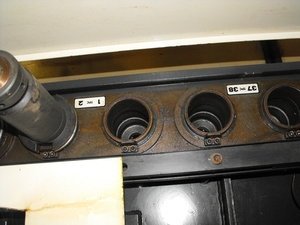

AUTOMATIC TOOL CHANGER- 38 TOOLS(OPTION)
3,000 RPM SPINDLE SPEED

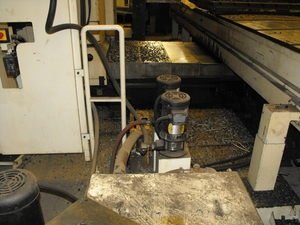

CHIP CONVEYOR
COOLANT UNIT NC SET B INCLUDING:
HELICAL INTERPOLATION
SYNCHRONOUS TAPPING
MEMORY 990'
10" COLOR TFT DISPLAY
USER FLOPPY DISK
FIXTURE OFFSET 99 SETS
CHAMFERING & CORNER R PROGRAMMING
MANUAL CENTERING FUNCTION
TEACHING FUNCTION
Specifications:
EQUIPPED WITH:

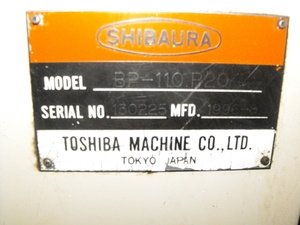

Shibaura
CATALOG SPECIFICATIONS:
TABLE LOAD CAPACITIES: ............... 40,000 LBS
TRAVEL:
X:(TABLE CROSS): .................... 100"(2,540MM)
Y:(HEADSTOCK VERTICAL): ............. 65"(1,651MM)
Z:(COLUMN LONGITUDINAL): ............ 45"(1,143MM)
W: .................................. 20"(506MM)
DISTANCE FROM TABLE SURFACE
TO SPINDLE CENTER: ............... 4 TO 69"(102-1,753MM)
DISTANCE FROM TABLE END
TO SPINDLE GAGE PLANE: ........... -6 TO 39"(-52-991MM)

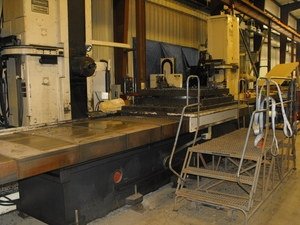

TABLE WORKING SURFACE: ............... 55" X 80"(1,397MM X 2,032MM)
TABLE LOADING CAPACITY: .............. 40,000 LBS
SPINDLE DIAMETER: .................... 4.33"(110MM)
SPINDLE SPEED RANGE: ................. 5-3,000 RPM
MILLING SPINDLE NOSE DIAMETER: ....... 8.825"(225MM)
NUMBER OF SPINDLE SPEED RANGES: ...... 3 RANGES
TYPE OF SPINDLE TAPER HOLE: .......... NO.50
MILLING SPINDLE BEARING INNER DIAMETER 7"(180MM)
SPINDLE DRIVE MOTOR(30MIN/CONT): ..... AC30/25 HP(AC22/185 KW)
RAPID TRAVERSE RATE(X,Y,Z): .......... 480 IPM(2,000 MM/MIN)
RAPID TRAVERSE RATE(W): .............. 200 IPM(5,000 MM/MIN)
FEEDRATE(ALL AXES INFINITELY VARIABLE) 0.04-235 IPM
POSITIONING ACCURACY(X,Y,Z): ......... +/-0.0004"(0.010MM)/ FULL LENGTH
REPEATABILITY(X,Y,Z): ................ +/-0.0002"(0.005MM)
MACHINE HEIGHT: ...................... 62.8"(4,135MM)
FLOOR SPACE: ......................... 289.4" X 259.8"
APPROX WEIGHT(INCLUDING NC EQUIP): ... 60,000 LBS(27,000 KG)
Dimensions:
289.4 X 259.8" x 62.8"
Weight:
60,000
