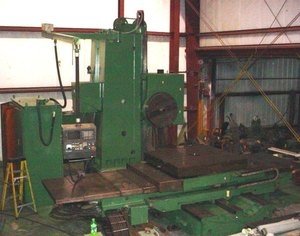

(1995) 5" Union Model BFT 13/6 CNC Table Type Horizontal Boring Mill
Specifications:
(1995) 5" Union Model BFT 13/6 CNC Table Type Horizontal Boring Mill
Specifications:
Spindle Diameter: 5"

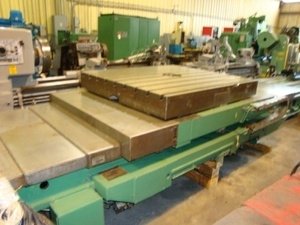

Built in Rotary Table Size: 55.11" x 62.99"
Rotary Table Degree of Index: .0001
Table Capacity: 8000 LBS
X Axis (Cross) Travel: 108.2"
Y Axis (Vertical) Travel: 64.9"
Z Axis (Spindle) Travel: 47.2
W Axis (Saddle) Travel: 36.6
Spindle Taper: 50
Spindle Speeds: 5 - 930 RPM

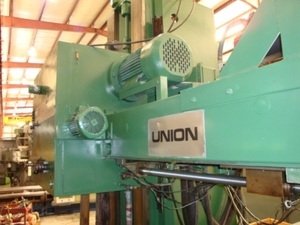

Main Motor Drive: 50 HP
Complete With:

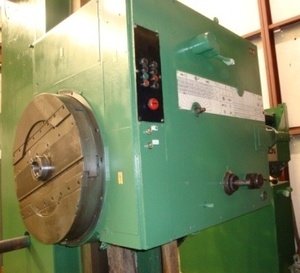

Fanuc 16iM Control (retrofitted in 1995), High Pressure Coolant Through Spindle, Built In Outriggers, Stainless Steel Way Covers, Facing Head
