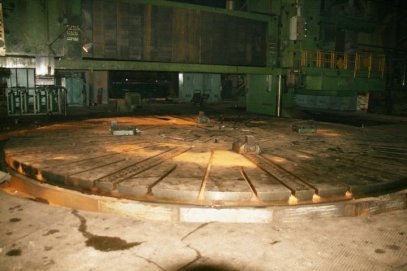

Table:10000mm
Swing with normal position of portal:12000mm
Swing with moved-out portal:16000mm
Max. work piece height:5500mm
Table RPM:0.1-12.5 (3 steps)
Max. work piece weight with 2 RPM: 400000kg
Right ram (turning)
-Max. travel of carriage:3500mm
-Ram size:500x500mm
-Turning angle in both directions:0-30 degree
Left ram (milling)
-Max. travel of carriage:2500mm
-Ram size:500x500mm
-Turning angle in both directions:0-30 degree
-Milling spindle RPM: 1-630 (3 steps)
-Head diameter of milling spindle:225mm
-Spindle cone:ISO 50
Main motor (2 units):100kW, RPM 650/1750
Milling spindle motor:37kW, RPM 910/2600
5 -axes Inductosyn scale:(X.Z,V,W,C)
ATC
CNC Siemens Synumeric 7T
Dimensions:
-LxW: 26154mm x 17514mm
-Height above floor:15300mm
-Height under floor:4340mm
Weight:850000kg
