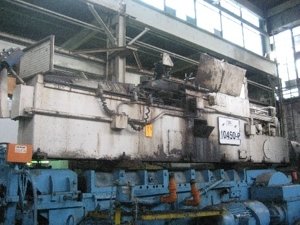

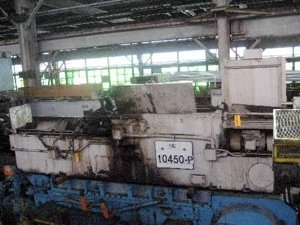

6-TON APEX MODEL H-6-48 HORIZONTAL INTERNAL BROACHING MACHINE

6-TON APEX MODEL H-6-48 HORIZONTAL INTERNAL BROACHING MACHINE

S/N: 3871New: 1965

EQUIPPED WITH:
Retriever Unit. Vickers Hydraulic Unit. Coolant.

SPECIFICATIONS:
Normal Pulling Capacity 12,000 lbs
Peak Pulling Capacity 15,200 lbs
Maximum Stroke 48"
Cutting Speed (Variable) 0-33 FPM
Return Speed (Variable) 0-60 FPM
Broach Cylinder Bore 4"
Diameter of Hole In Face Plate 8"
Main Motor 10 HP
Approximate Weight 5000 lbs

5000 lbs
