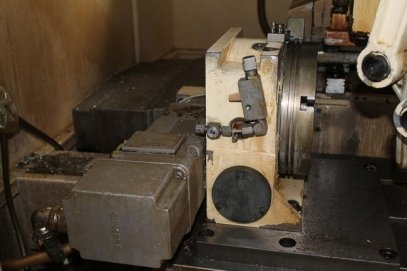

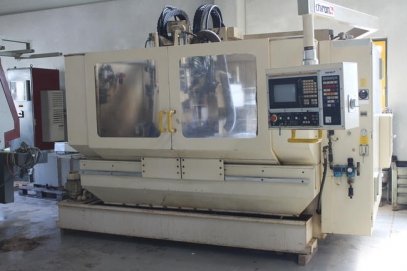

CHIRON FZ 22 L Manufacturer: Chiron Year: 1987 Type of offer: used machine Specifications: FZ22L X/1200 Y/400 Z/425 4.Achse Peiseler left, automatic indexing table type ATU Peiseler faceplate speed 200 diam 225 mm max 6 min -1 tangential milling around 200nm transport load 100 kg load vertically 5000 N overturning moment 800 tangential moment of clamp 500 Nm (at 60 bar) rotation of the center bore 0.01 runout 0.01 Teilgenaudikeit of worm drive + / - 15 sec right place for a vice or similar clamping / work table: 1880x475 36-fold functional derailleur SK40 Siemens SINUMERIK 3M 40m/min rapid traverse spindle 6000 rpm / min machine!
